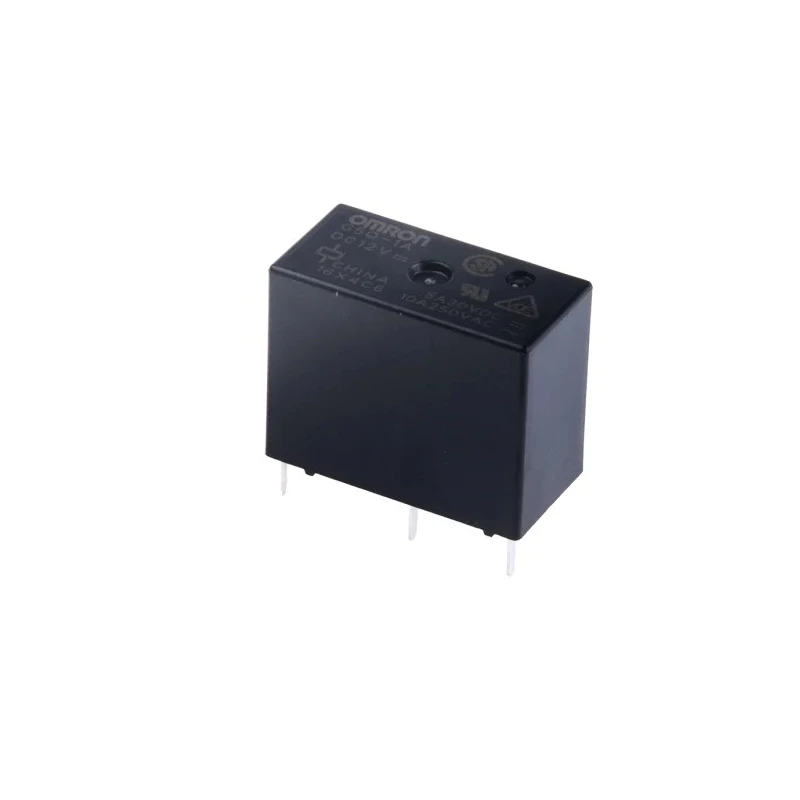

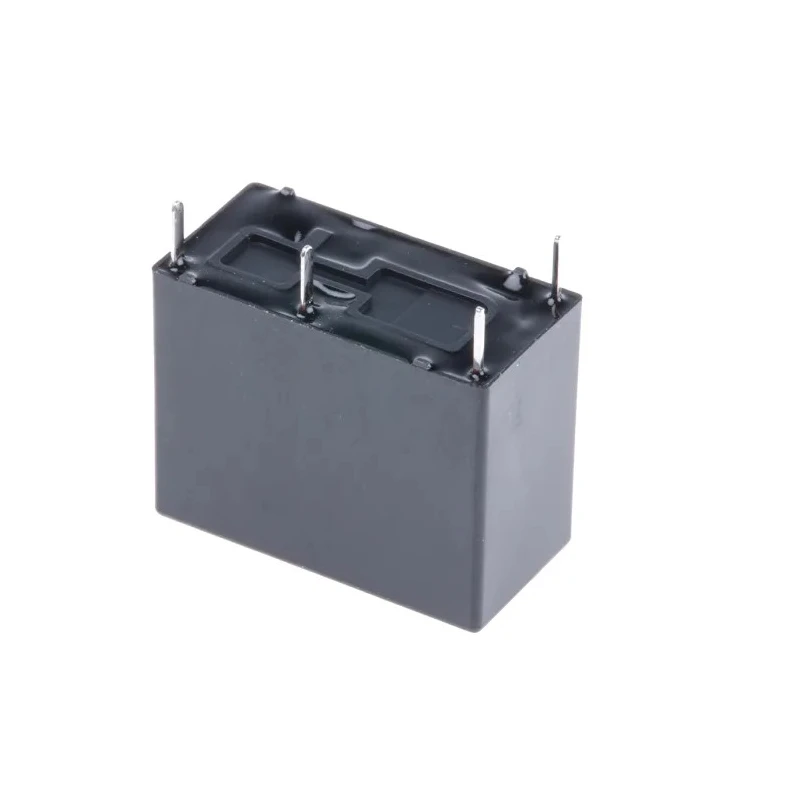

Omron Power Relay PCB Mount SPST Silver Alloy Contact 12V DC Coil, 10A Switching Current G5Q-1A DC12 (TY)

The Omron G5Q-1A DC12 (TY) Power Relay is a highly reliable component designed for PCB mounting applications requiring robust switching performance. Featuring a 12V DC coil, this relay delivers a switching current capacity of 10 amps with a single pole single throw (SPST) contact configuration. It uses a silver alloy contact material to ensure superior electrical conductivity and long service life.

Measuring a compact 20.3 mm in length, 15.8 mm in height, and 10.3 mm in width, the G5Q series relay is ideal for dense PCB assemblies. Its coil resistance of 720 ohms and coil power of 4 kW contribute to low coil consumption, making it energy efficient.

Designed to operate within a broad temperature range from -40°C to 85°C, this relay suits industrial and laboratory environments with varying climatic conditions. It complies with CE, EN, IEC, RoHS, and UL standards, reflecting its adherence to international safety and quality regulations.

The relay's high isolation voltage of 8kV between coil and contacts mitigates electrical interference and potential damage, enhancing operational reliability in automation and signal conditioning systems.

This solder-terminal relay serves well in manufacturing machinery, electrical equipment, and control systems where dependable switching and compact size are essential. Applications include automation control panels, power distribution units, and embedded system designs.

The relay features a silver alloy contact for enhanced conductivity and durability. It supports a switching AC voltage up to 400V AC and operates reliably between -40°C to 85°C. Designed with a coil resistance of 720 ohms and a coil power rating of 4kW.

This model complies with CE, EN, IEC, RoHS, and UL standards, ensuring safety and quality. It includes a solder-type terminal and compact dimensions of 20.3 mm length, 15.8 mm height, and 10.3 mm width. The high coil-to-contact isolation rating of 8kV offers excellent protection in industrial settings.

Ideal for use in industrial automation, electrical control panels, and various PCB applications. Explore the Electronics & Electricals category for more high-quality relays and PCB components at EnvMart.
