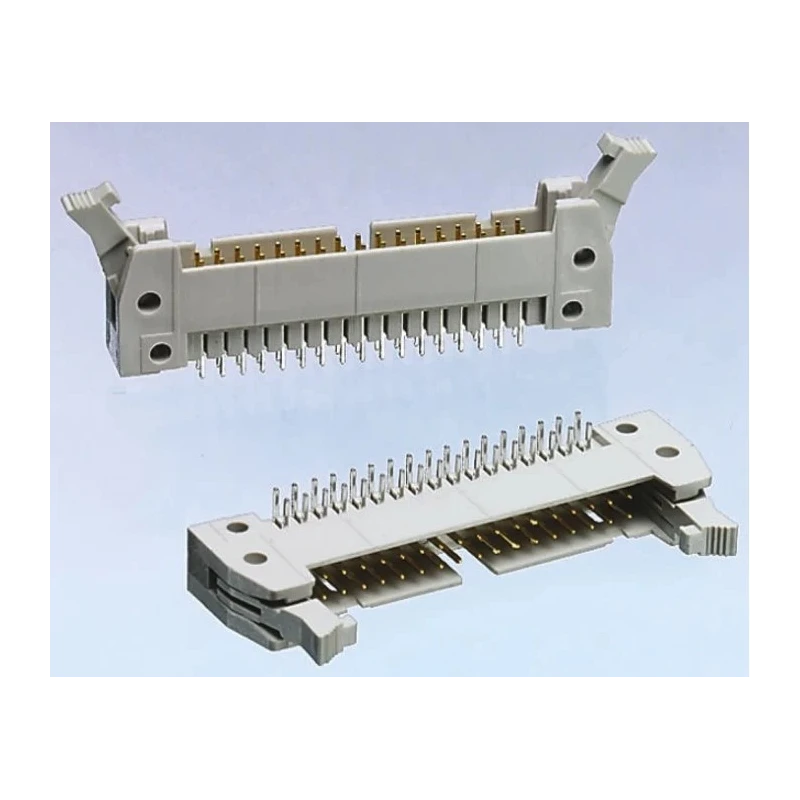

HARTING SEK 19 Series Right Angle Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Shrouded, 1000V 09195506913
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 19 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header is shrouded for additional protection and durability.
- Contacts are made of copper alloy and plated with gold to ensure excellent conductivity and corrosion resistance.
- It supports a current of 1A and withstands voltages up to 1000V.
- The header is designed for through-hole mounting and features a right angle orientation.
- It operates reliably between -55°C to 125°C, suitable for high temperature applications.
- The housing material is Polycyclohexylenedimethylene Terephthalate, offering robust insulation and mechanical strength.
- Ideal for industrial electronic applications requiring compact, high-performance PCB connectors.
Product Description
HARTING 09195506913 SEK 19 Series Right Angle Through Hole PCB Header features 50 male contacts arranged in 2 rows with a 2.54 mm pitch. This shrouded connector is specifically designed for wire-to-board applications, offering secure and reliable connections for electronic circuits.
The contacts are crafted from copper alloy with gold plating, ensuring excellent electrical performance and resistance to corrosion even under demanding environmental conditions. The header supports a maximum current rating of 1A and voltage rating of 1000V, making it suitable for various medium-power industrial electronics.
The PCB header is constructed with a housing made from Polycyclohexylenedimethylene Terephthalate, a high-performance polymer known for its mechanical strength and insulation properties. It supports through-hole mounting with a right angle orientation to optimize PCB layout in compact designs.
Designed to withstand operating temperatures ranging from -55°C to 125°C, this connector also tolerates short-term exposure up to 240°C during soldering processes, making it ideal for reflow soldering assembly techniques.
This product meets relevant standards IDC, BT224, DIN41651, and DIN EN 60603-13, with UL and CSA approvals for quality assurance. Its robust design suits applications in industrial electronics, automation systems, telecommunications equipment, and other commercial and laboratory instrumentation requiring dependable PCB connections.
This PCB header is shrouded for additional protection and durability. Contacts are made of copper alloy and plated with gold for enhanced conductivity. Supports current of 1A and voltage up to 1000V. Right angle, through hole mounted design for space-saving PCB layouts.
Housing material offers mechanical strength and insulation. Operates reliably from -55°C to 125°C with high temperature tolerance. Suitable for industrial and laboratory electronic applications. Set contents: 1 Pc HARTING SEK 19 Series Right Angle Through Hole PCB Header with 50 contacts.
Explore more PCB connectors and electronics components on EnvMart for professional industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 1000V.
This model supports a maximum current of 1A.
The contacts in this header are arranged with a pitch of 2.54 mm.
It operates reliably between -55°C to 125°C, with a tolerance for short-term exposure up to 240°C during soldering processes.
The contacts are made of copper alloy and plated with gold, while the housing is constructed from Polycyclohexylenedimethylene Terephthalate.
This header features 50 male contacts arranged in 2 rows.
It is designed for through-hole mounting, which optimizes PCB layout in compact designs.
The header has a right angle orientation, making it suitable for specific PCB configurations.
This model utilizes a wire-to-board connector system.
This header is shrouded, providing additional protection and durability.
It meets relevant standards including IDC, BT224, DIN41651, and DIN EN 60603-13, and has UL and CSA approvals.
The country of origin for this PCB header is Switzerland.
