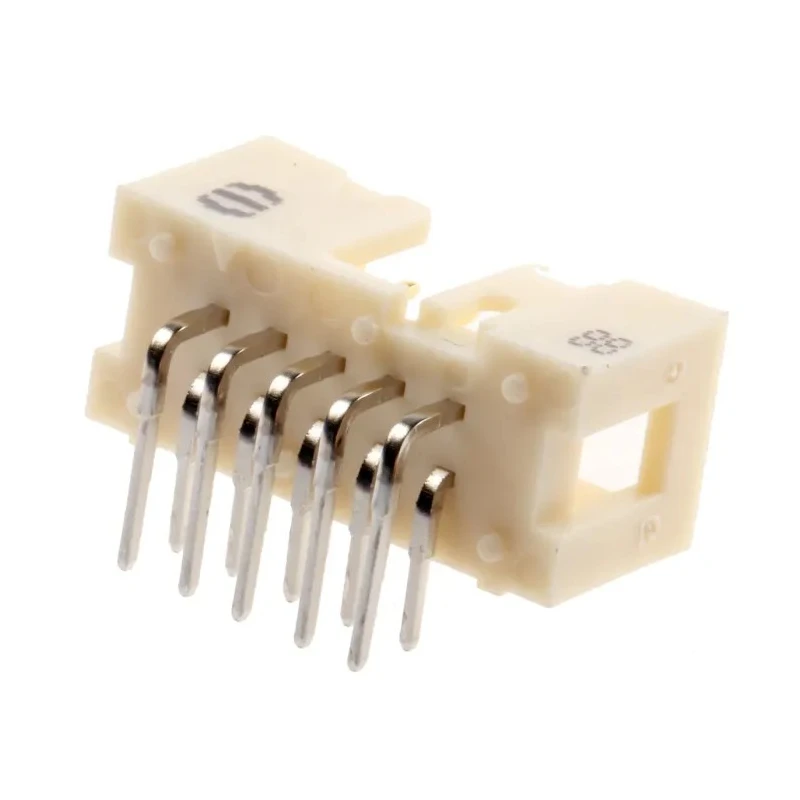

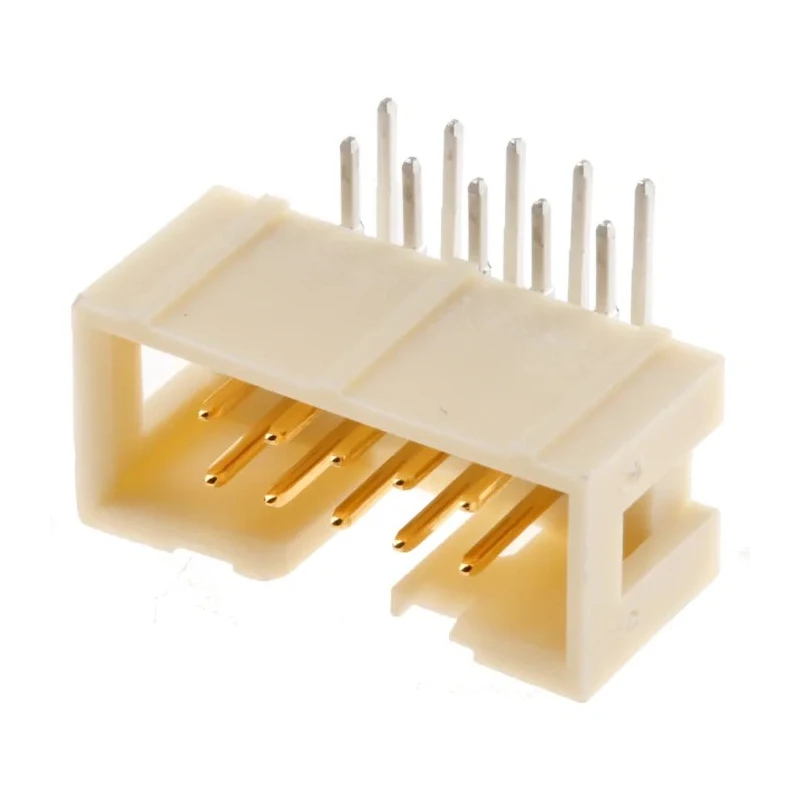

HARTING SEK 19 Series Right Angle Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded, 1000V 09195106323
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 19 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a 2.54 mm pitch between pins for standard compatibility.
- Constructed with a shrouded design to ensure connector protection and secure mating.
- Provides 1A current rating suitable for low power electronic applications.
- Gold plated copper alloy contacts optimize conductivity and corrosion resistance.
- Equipped with two rows of contacts for enhanced connection density.
- Mount type is through hole, ensuring strong mechanical and electrical connection on PCBs.
- Housing made from durable Polycyclohexylenedimethylene Terephthalate for thermal and mechanical robustness.
- Rated for a maximum operating temperature of 125°C and minimum of -55°C for wide temperature range use.
Product Description
HARTING 09195106323 SEK 19 Series Right Angle Through Hole PCB Header is engineered to provide reliable wire-to-board connections in electronic circuits. Featuring 10 gold-plated male contacts arranged in two rows with a 2.54 mm pitch, it ensures durable electrical connectivity and corrosion resistance suitable for industrial and electronic assembly environments.
The shrouded housing constructed of high-quality Polycyclohexylenedimethylene Terephthalate protects the contacts and maintains stable connector alignment. Rated for 1A current and voltages up to 1000V, it caters to power and signal transmission needs. The through-hole mount type offers robust mechanical fixation on PCB boards, ideal for demanding industrial applications.
Operating temperature range from -55°C to 125°C allows use in harsh environments including industrial, manufacturing, and electronic device assembly scenarios. The solder termination ensures reliable mounting with standard PCB assembly processes.
This PCB header complies with various standards including IDC, BT224, DIN41651, and DIN EN 60603-13. UL and CSA approvals (UL: E102079, CSA: 98267) add to its reliability credentials.
Standard 2.54 mm pitch and two row configuration increase contact density. Gold plated copper alloy contacts provide superior conductivity and resistance to oxidation. Shrouded design offers mechanical protection and proper connector alignment.
High temperature resistant housing ensures long-term durability. Through-hole mounting type guarantees sturdy PCB assembly. Rated for 1000V and 1A to handle diverse electronic loads. Suitable for industrial manufacturing, electronic components assembly, and power connectors applications.
Choose the HARTING SEK 19 Series PCB Header 09195106323 for dependable, high-performance PCB connections with quality and consistency built-in. Explore more HARTING connectors and PCB components on EnvMart to optimize your electronics system design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1A, making it suitable for low power electronic applications.
It is rated for a maximum voltage of 1000V, suitable for various electronic loads.
The pitch between the contacts is 2.54 mm, which is standard for many PCB connections.
This PCB header features 10 male contacts arranged in two rows.
The housing is constructed from Polycyclohexylenedimethylene Terephthalate, providing thermal and mechanical robustness.
It uses a through-hole mount type, ensuring a strong mechanical and electrical connection on PCBs.
The operating temperature range is from -55°C to 125°C, allowing use in harsh environments.
It features solder termination, which is compatible with standard PCB assembly processes.
The contacts are made from gold-plated copper alloy, optimizing conductivity and corrosion resistance.
This PCB header is shrouded, which provides mechanical protection and ensures proper connector alignment.
It complies with various standards including IDC, BT224, DIN41651, and DIN EN 60603-13, along with UL and CSA approvals.
The country of origin for this PCB header is Switzerland.
