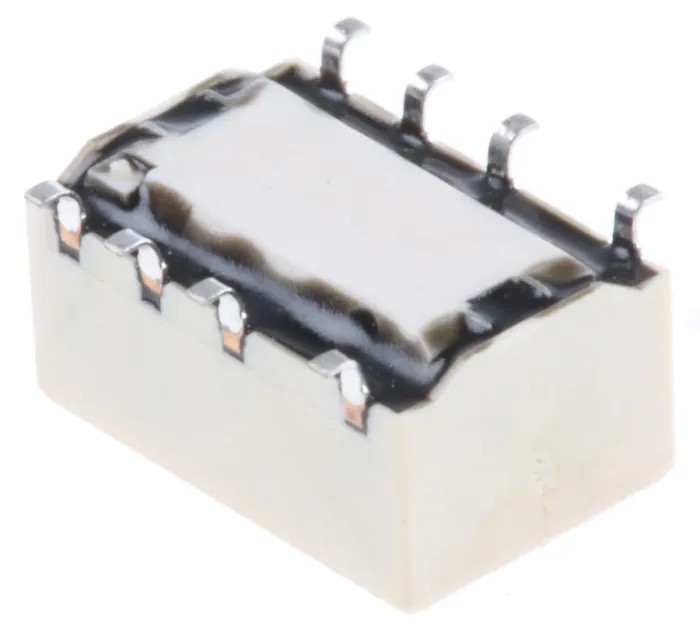

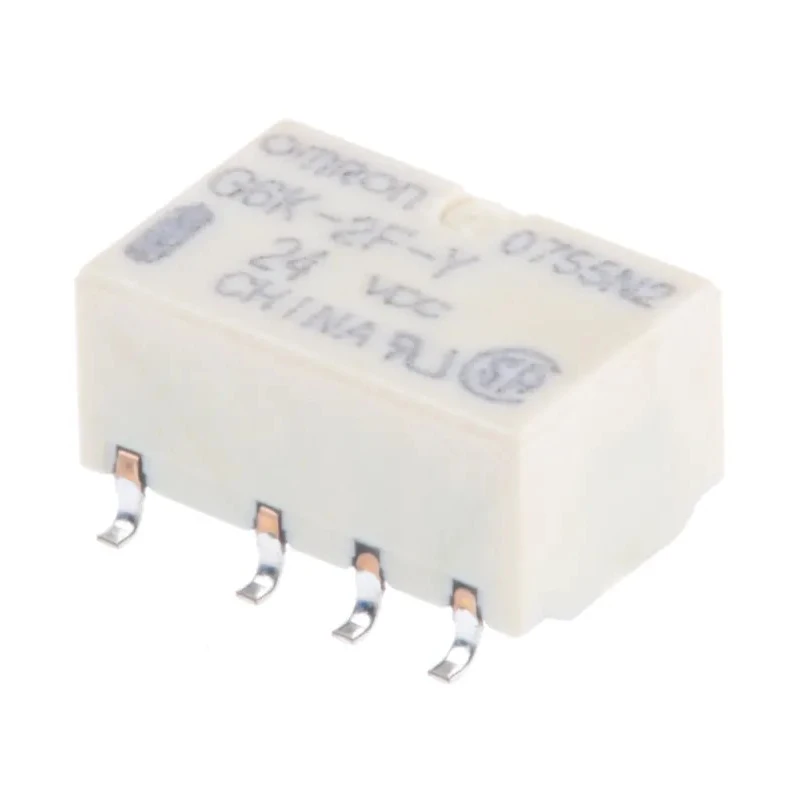

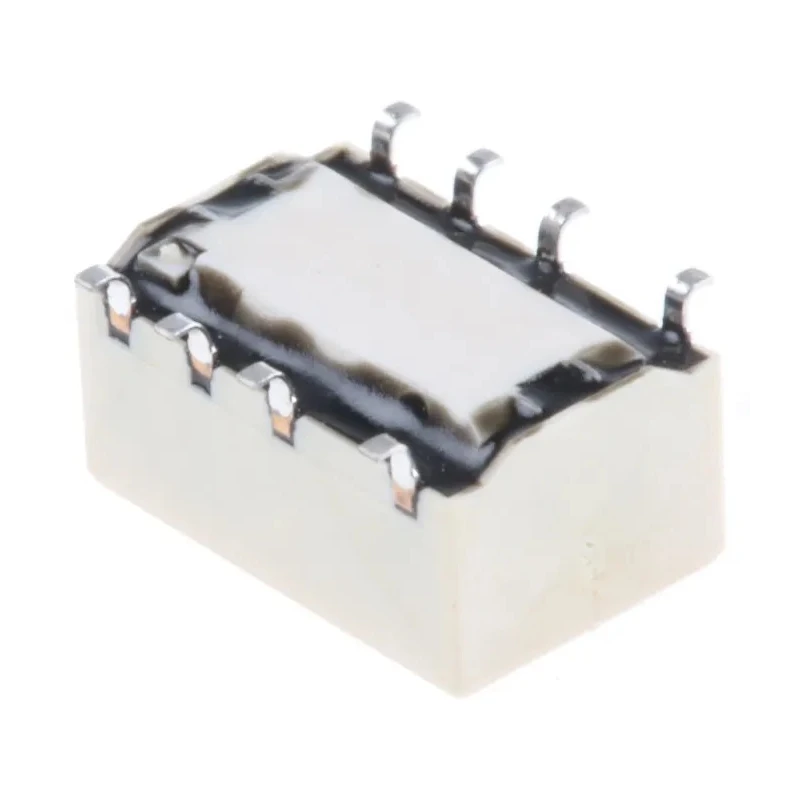

Omron Surface Signal Relay 24V DC Coil, 1A Switching Current, DPDT Contact Configuration G6K-2F-Y 24DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 10mm |
| Model | G6K-2F-Y 24DC |
| Width | 6.5mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Coil Resistance | 5200Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
Key Features
- The relay features a surface mount type suitable for PCB assembly.
- It supports switching voltages of up to 125V AC and 60V DC.
- The contact material is gold plated to ensure reliable signal transmission.
- Operating temperature ranges from -40°C to 70°C for diverse industrial environments.
- Low power consumption coil with approximately 100mW coil power.

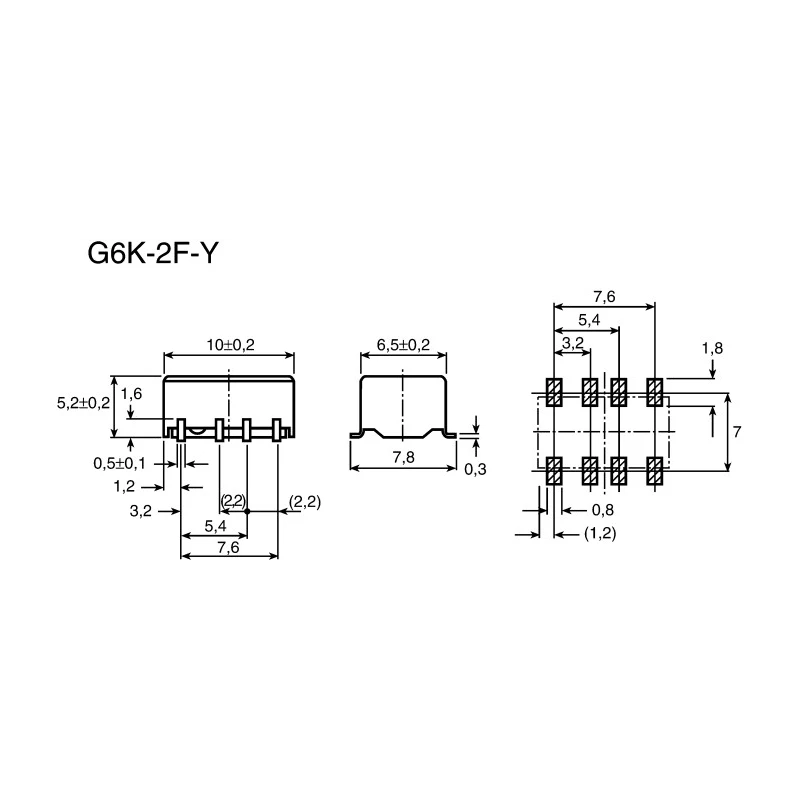

- Compact dimensions of 5.2mm height, 6.5mm width, and 10mm length enable space-saving designs.
- The coil resistance is 5200 Ohms, contributing to efficient operation.
- Fully sealed construction protects internal components ensuring durability.
Product Description
Omron G6K-2F-Y 24DC Surface Signal Relay is engineered for precision signal switching in electronics and electrical automation systems. With a compact low profile subminiature SMT form factor sized at 5.2mm height, 6.5mm width, and 10mm length, it integrates easily into PCB designs requiring reliable relay switching.
The relay operates on a 24V DC coil voltage with a low power consumption of approximately 100mW, making it energy efficient for long-term operations. It supports a double pole double throw (DPDT) contact configuration capable of switching currents up to 1A with AC voltage of 125V and DC voltage of 60V. Gold plated contacts ensure excellent signal integrity and durability in critical signal relay applications.
Designed to operate reliably within a temperature range from -40°C to 70°C, this relay performs well even in harsh industrial environments. The coil has a resistance of 5200 Ohms and the relay is fully sealed, providing protection against environmental contaminants.
This model conforms to FCC Part 68 and Bellcore specifications for transient voltage and surge withstand capabilities, enhancing its robustness in signal conditioning circuits. The surface mount terminal type ensures easy soldering and assembly onto circuit boards.
Its low profile helps save space in compact industrial and laboratory equipment. The relay is ideal for applications including automation control panels, signal conditioning, instrumentation, and communication devices. Gold plated contacts reduce oxidation and improve lifecycle.
Manufactured in China with adherence to Omron's stringent quality controls. Choose the Omron G6K-2F-Y 24DC Surface Signal Relay for reliable performance in sensitive signal switching tasks. Discover more products in the Signal Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It supports a maximum switching current of 1A.
The relay has a height of 5.2mm, width of 6.5mm, and length of 10mm.
This relay features a double pole double throw (DPDT) contact configuration.
The operating temperature range is from -40°C to 70°C.
The coil resistance is 5200 Ohms.
The coil power consumption is approximately 100mW.
It can switch AC voltages up to 125V and DC voltages up to 60V.
This model features a surface mount type suitable for PCB assembly.
The contacts are made of gold plated material to ensure reliable signal transmission.
It is manufactured in China.
This relay is suitable for applications including automation control panels, signal conditioning, instrumentation, and communication devices.
