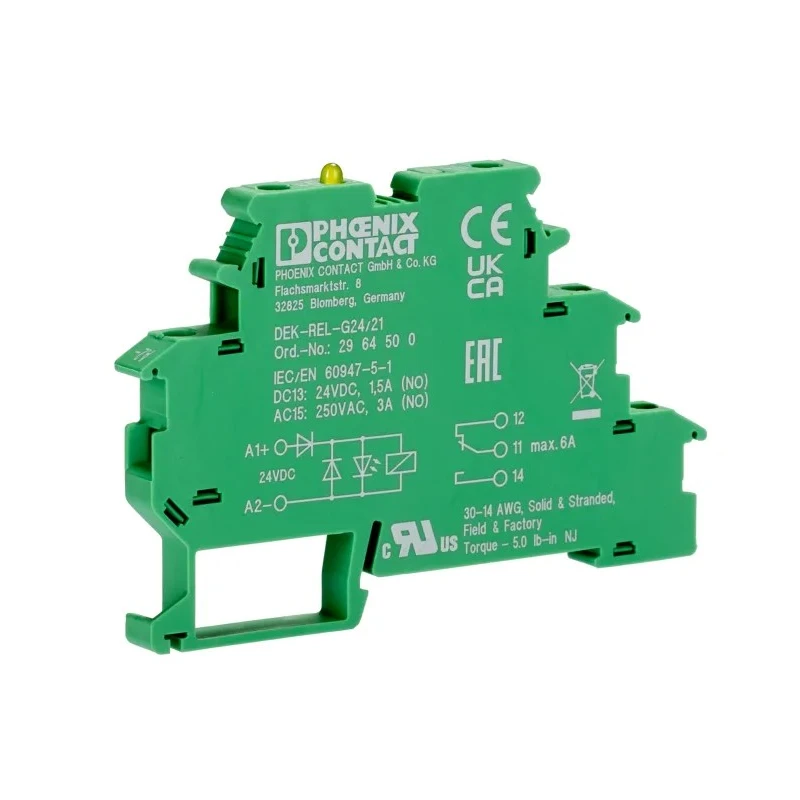

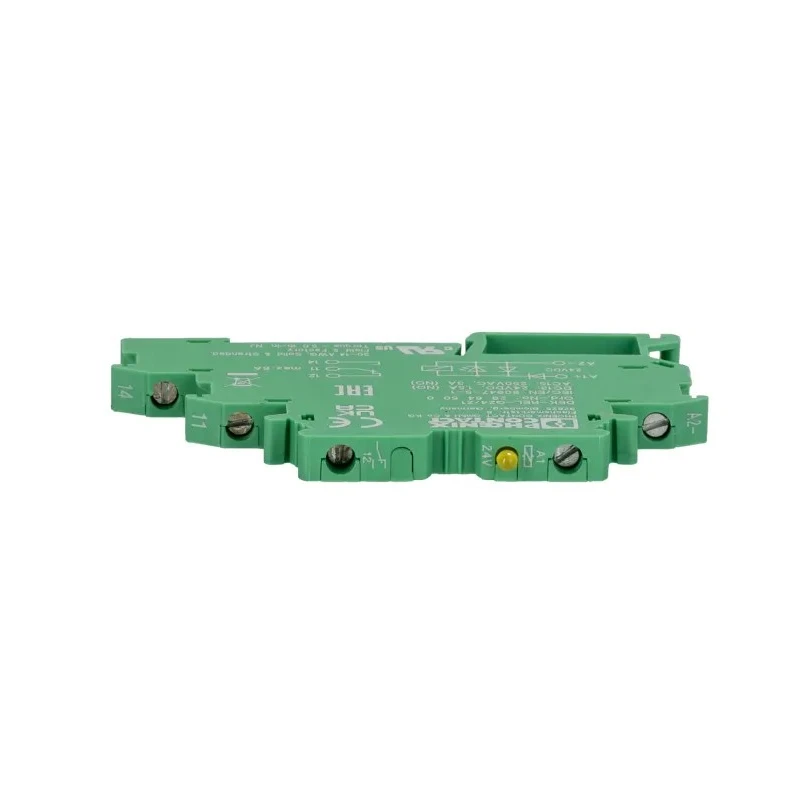

Phoenix Contact DIN Rail Interface Relay 24V dc Coil 6A SPDT 2964500
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Height | 56mm |
| Length | 80mm |
| Model | 2964500 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | DEK-REL |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | RoHS, REACH |
| Coil Resistance | 2.67kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Wieland Flare Series Interface Relay, DIN Rail, 24V dc Coil, SPDT, 14mABrand | Wieland |
Key Features
- Galvanic isolation protects systems by preventing unwanted current flow.
- Compact 6.2mm width saves installation space in dense industrial control panels.
- Screw terminal connection ensures solid electrical contacts and easy maintenance.
- Fast 8ms turn-on time supports rapid switching requirements.
- Operates reliably between -20°C and +50°C ambient temperatures.
- Rated for switching voltages up to 250V AC/DC for versatile application.
- Constructed with silver alloy contacts for durability and performance.
- IP67 housing provides dust protection and water resistance against high-pressure jets.
Product Description
Phoenix Contact 2964500 DIN Rail Interface Relay features a 24V dc coil voltage with a switching current capability of 6A and SPDT contact configuration, designed for industrial automation and signal conditioning applications.
The relay provides galvanic isolation between coil and contacts, preventing unwanted currents and enhancing electrical safety by protecting equipment and personnel from electric shock hazards.
Its compact design measures only 6.2mm in width, making it well-suited for installation in control cabinets where space is limited. The relay mounts easily on standard DIN rails, facilitating fast integration into industrial automation systems.
The screw-type terminals enable secure, low-resistance connections and ease of wiring or maintenance tasks. With a rapid 8ms turn-on time, this relay supports fast switching demands commonly found in manufacturing and process-control environments.
Built to operate reliably in ambient temperatures from -20°C to +50°C, it can withstand demanding conditions without performance degradation. The relay contacts use silver alloy material to ensure long-term durability and reliable electrical performance.
The device is rated for switching voltages up to 250V AC/DC and has an IP67-rated housing, offering protection against dust ingress, immersion, and high-pressure water jets, suitable for harsh industrial use cases.
Galvanic isolation prevents interference and enhances safety. Compact 6.2mm DIN rail mountable format. Secure screw terminals for reliable connections. Fast switching with 8ms turn-on time. Wide temperature operating range from -20°C to 50°C.
Silver alloy contacts for durability. Rated for 250V AC/DC switching voltage. IP67 enclosure protection against dust and water. Ideal for manufacturing plants and treatment facilities. Compliance with RoHS and REACH standards.
This Interface Relay is an essential component for industrial control, manufacturing automation, water treatment systems, and mechanical workshops requiring reliable signal isolation and switching performance.
Browse the Phoenix Contact catalog in EnvMart for related automation and relay products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It has a switching current capability of 6A.
This model features a Single Pole Double Throw (SPDT) contact configuration.
It is rated for switching voltages up to 250V AC/DC.
The relay has a width of 6.2mm, a height of 56mm, and a length of 80mm.
It has a fast turn-on time of 8 milliseconds, suitable for rapid switching applications.
This relay operates reliably within an ambient temperature range of -20°C to +50°C.
It uses screw terminals for secure electrical connections.
The contacts are constructed from silver alloy, ensuring durability and reliable performance.
This model is designed for DIN rail mounting, facilitating easy installation.
It complies with RoHS and REACH standards.
It is suitable for industrial automation, signal conditioning, and applications in manufacturing plants and water treatment systems.
