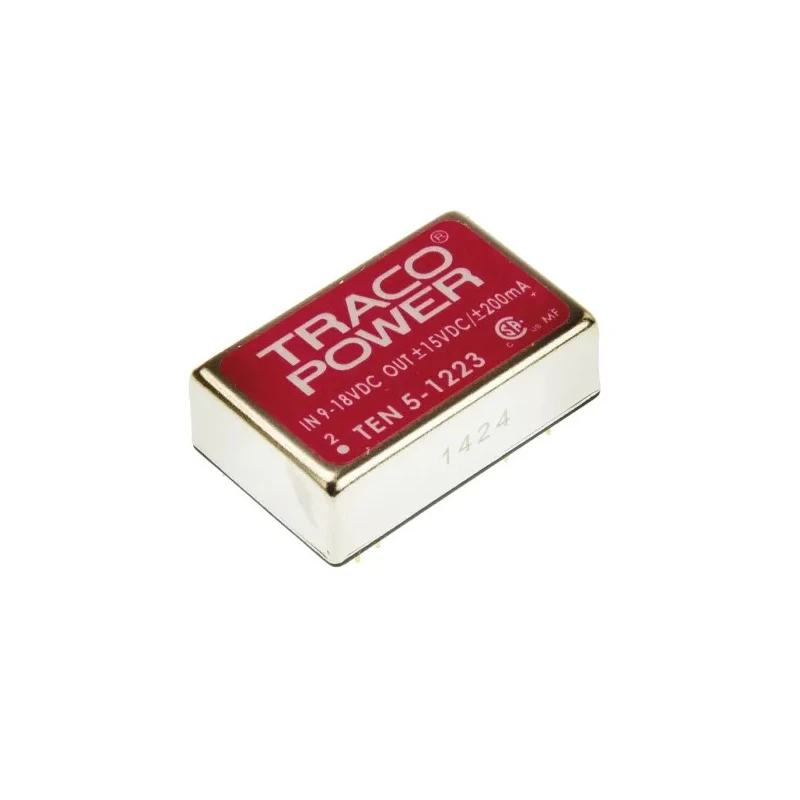

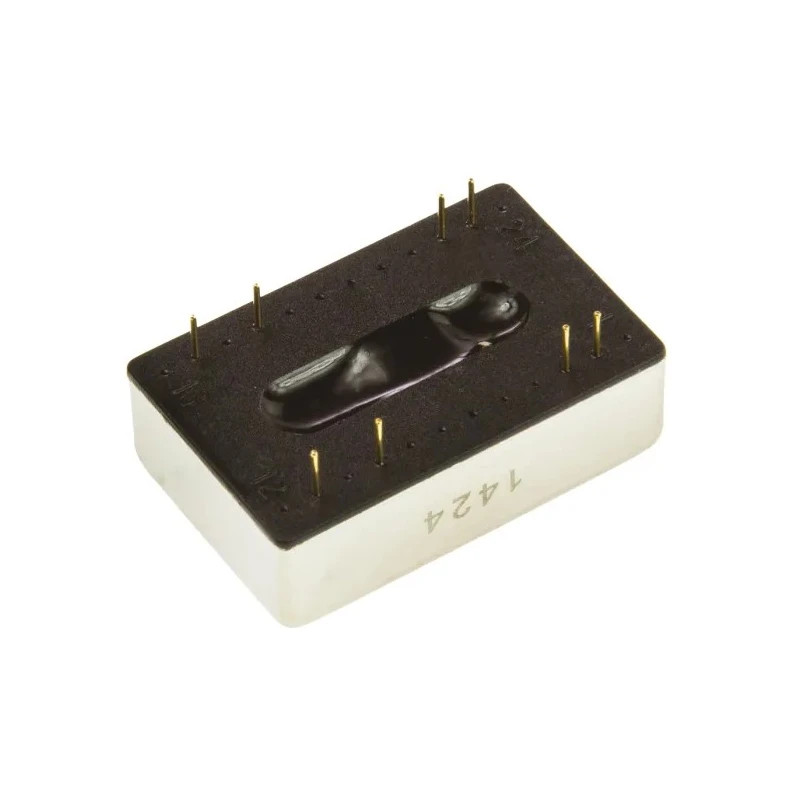

TRACOPOWER Regulated Isolated DC-DC Converter 15V dc Output 200 mA 6W Through Hole TEN 5-1223

TRACOPOWER TEN 5-1223 is a high-quality regulated isolated DC-DC Converter designed for reliable power conversion in a compact through-hole DIP-24 package. It delivers a stable 15V dc output at 200 mA with a maximum output power of 6W, operating efficiently over a wide input voltage range from 9V to 18V dc.

This module features a full surface-mount design, ensuring high reliability and a long operational life with an MTBF exceeding one million hours. The internal EMI input filter meets stringent EN 55022 and FCC Class A standards without requiring additional external components. The converter's efficiency of 84% supports low power dissipation and thermal management.

Its broad temperature range of -40°C to 85°C makes it well suited for harsh industrial, manufacturing, telecommunication, and battery-powered applications where stable and isolated voltage conversion is critical. The converter provides 1500 Vdc isolation between input and output, enhancing safety and reducing electrical noise interference.

The TEN 5-1223 also includes indefinite short circuit protection and follows UL 60950-1 and IEC/EN 60950-1 safety standards, though it has no specific third-party approvals listed. Its through-hole mounting and the DIP-24 footprint allow for easy integration into existing circuit boards and industrial equipment.

Wide 2:1 input voltage range from 9V to 18V dc ensures versatile power source compatibility. Built-in EMI input filter complies with EN 55022 and FCC level A without additional components. High efficiency of 84% reduces power loss and heat generation during operation.

Operating temperature range from -40°C to 85°C supports demanding industrial environments. DIP-24 package and through-hole mount ensure secure mechanical and electrical connection. Offers 1500 Vdc input-output isolation for enhanced safety and signal integrity.

Designed for industrial process control, tele-data communication, and battery-operated equipment. MTBF (Mean Time Between Failures) of 1,000,000 hours guarantees superior reliability. Includes indefinite short circuit protection for robust performance in variable conditions.

This product is ideal for applications in industrial automation, telecommunication systems, laboratory instruments, and embedded systems requiring precise, isolated voltage conversion within a wide temperature band. The sturdy metal case and insulated baseplate provide mechanical protection and electrical insulation, ensuring durability under challenging conditions.
