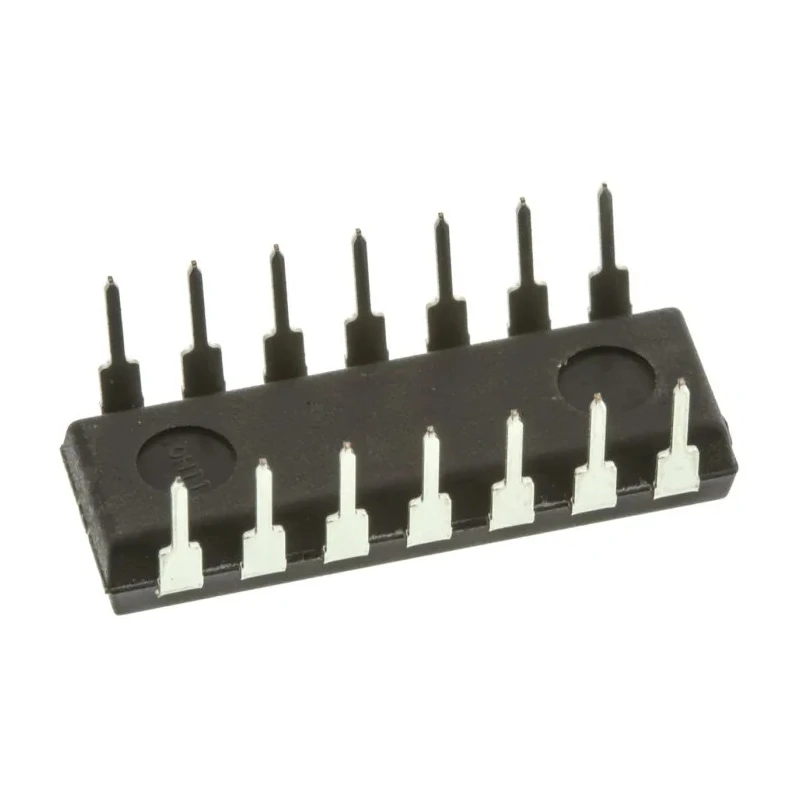

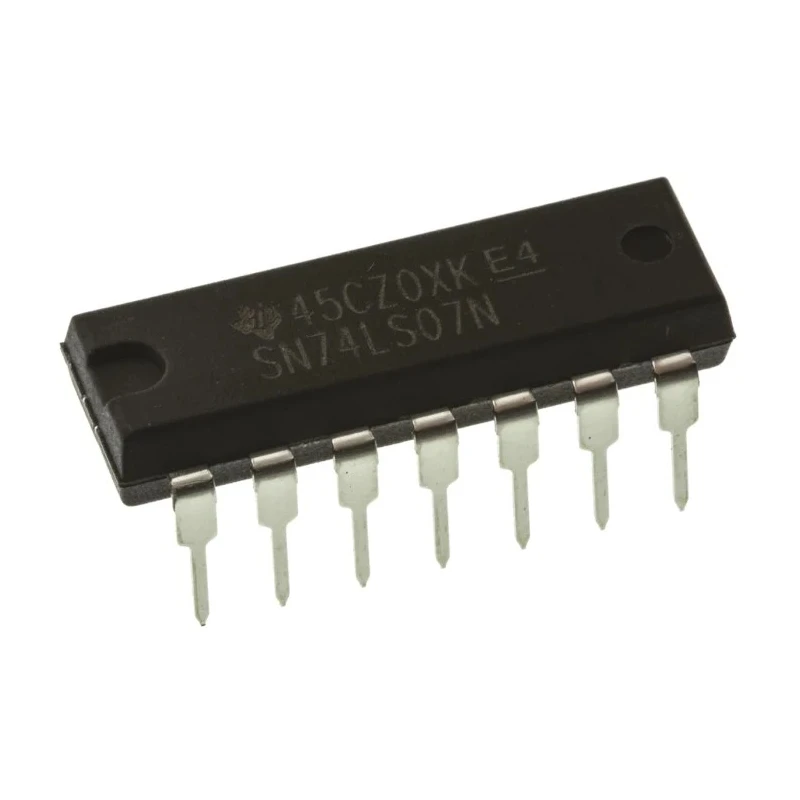

Texas Instruments 6-Channel Buffer & Line Driver Open Collector Non-Inverting 14-Pin PDIP SN74LS07N

Texas Instruments SN74LS07N is a high-performance 6-channel buffer and line driver IC, featuring open collector, non-inverting outputs in a 14-pin PDIP package. This IC belongs to the LS logic family which combines bipolar junction transistor technology with Schottky diode clamping to achieve faster switching speeds with lower power consumption than traditional TTL ICs.

The device operates within a minimum supply voltage of 4.75 volts and a maximum of 5.25 volts, making it suitable for standard 5V digital logic systems. It provides six individual buffer channels that are non-inverting, ideal for buffering and driving signals through longer connection lines or interfacing with higher power devices.

Open collector outputs allow multiple outputs to be connected safely for wired-AND logic functions or to interface with higher voltage loads using external pull-up resistors. The maximum low-level output current is 40mA, providing sufficient drive strength for various industrial and electronic applications.

The 14-pin PDIP (Plastic Dual In-line Package) ensures easy installation into through-hole printed circuit boards, making it popular for prototyping and production setups that require robust mounting. With a compact form factor - length 19.69 mm, width 6.6 mm, and height 5.08 mm - it optimally utilizes board space in complex electronic assemblies.

Operating temperature range from 0 to 70°C enables reliable function in typical industrial and commercial environments. The 12 ns maximum propagation delay ensures suitable performance for moderate speed digital logic circuits.

Six independent buffer channels with non-inverting outputs enhance signal integrity. Open collector outputs allow flexible connection schemes like wired-AND. Operates at 4.75 - 5.25 V supply voltage, compatible with 5V digital systems.

14-pin PDIP package supports straightforward through-hole mounting. Low propagation delay of 12 ns supports efficient logic timing. Temperature range 0 - 70°C fits typical industrial environment requirements. Maximum low-level output current of 40mA for driving external circuits.

Compact dimensions suited for space-constrained applications. Belongs to the LS logic family with improved speed and low power.

This Texas Instruments SN74LS07N buffer and line driver IC is widely applicable in electronic design, industrial machinery control systems, and digital signal interfacing. Its robust electrical characteristics ensure stable performance in a range of environments including manufacturing and instrumentation.
