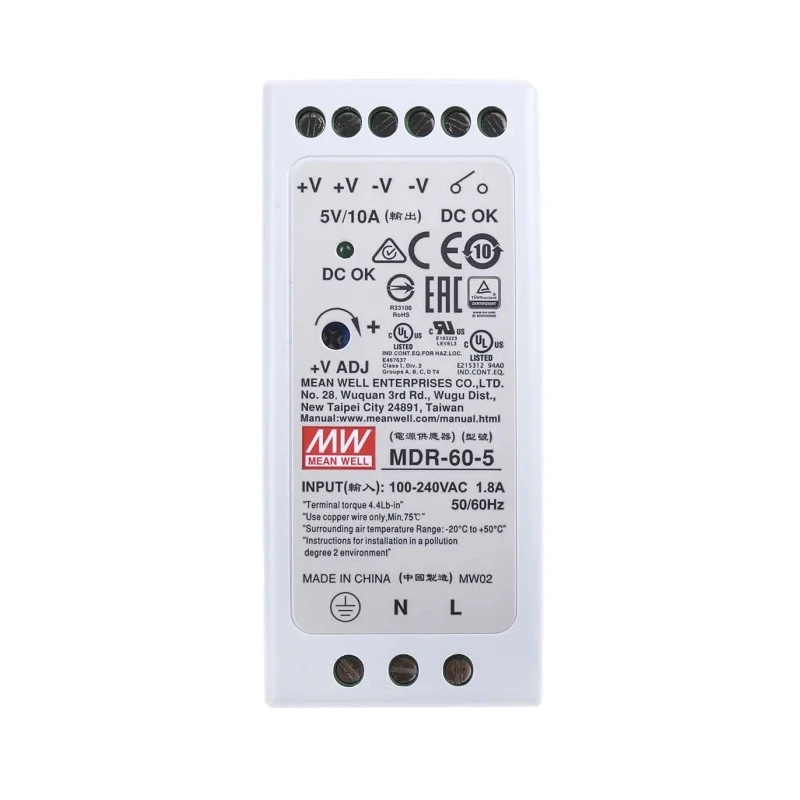

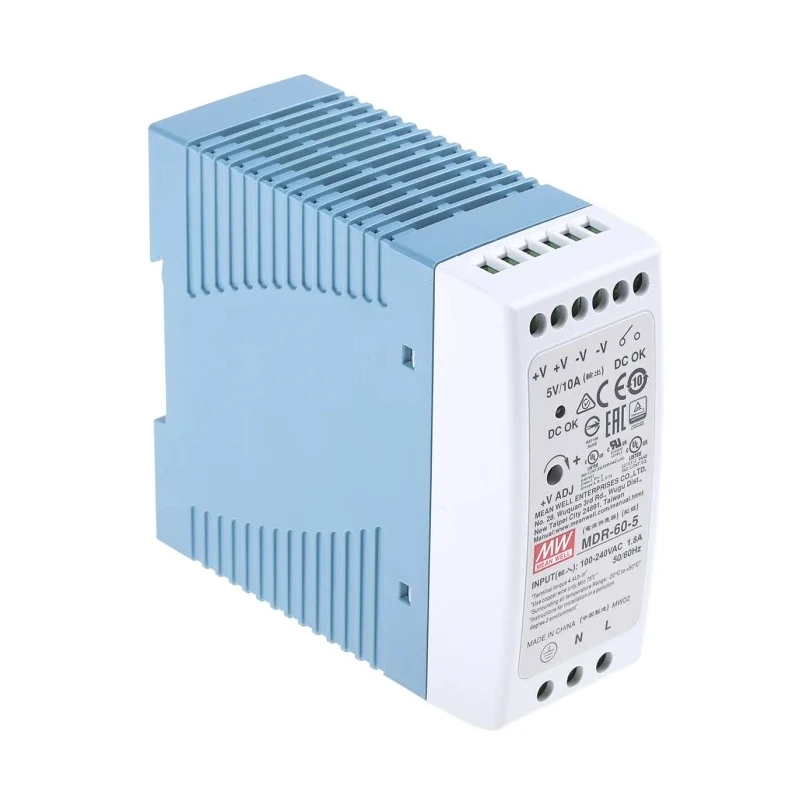

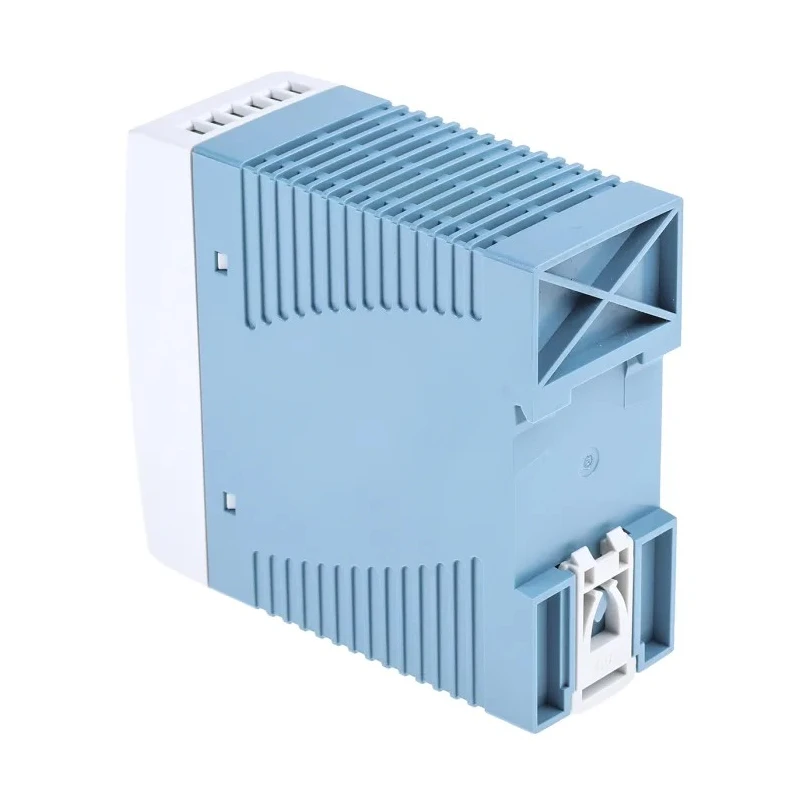

MEAN WELL Switched Mode DIN Rail Power Supply 1 Phase 264V AC Input 6V DC Output 10A 60W MDR-60-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 60W |
| Height | 100mm |
| Model | MDR-60-5 |
| Depth | 90mm |
| Width | 40mm |
| Series | MDR |
| Output Current | 10A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Hazardous Area Certification | Group A, B, C, Class I Division 2, D |
| Standards/Approvals | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Maximum Output Voltage | 6V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- This single output power supply features universal AC input voltage from 85V to 264V.
- It delivers stable 6V DC output with maximum current of 10A and power rating of 60 watts.
- The device is designed for 1 phase electrical systems with short circuit, overload, and over voltage protection.
- Operating temperature range is from -20°C to +70°C allowing operation in various environments.
- It includes DC-OK relay contact and LED indication for operational status monitoring.
- The compact unit measures 100mm height, 40mm width, and 90mm depth suitable for DIN Rail TS-35/7.5 or 15 mounting.
- Cooling is by free air convection, requiring no additional fans or cooling mechanisms.
- Certified standards include RoHS compliance, TUV EN 60950-1, and UL 508 for safety and reliability.
Product Description
MEAN WELL MDR-60-5 is a robust switched mode DIN Rail Power Supply designed for industrial, electronic components, and commercial power supply applications. It accepts a wide AC input voltage range from 85V to 264V with 1 electrical phase, providing a reliable 6V DC output at 10A with a total power output of 60W.
The unit is engineered with multiple protections against short circuit, overload, and over voltage conditions ensuring safe operation in demanding environments. Its operating temperature spans from -20°C to 70°C, making it suitable for various indoor installations with cooling achieved through free air convection.
This power supply is intended for DIN Rail mounting on TS-35/7.5 or TS-35/15 rails, featuring a slim profile with dimensions of 100mm height, 40mm width, and 90mm depth, optimizing space in control cabinets and electrical panels.
Universal AC input supports 85V to 264V at single phase. Reliable 6V DC output at 10A for steady power supply needs. Protective features guarding against short circuit, overload, and over voltage. Suitable operation temperature from -20°C up to 70°C.
DC-OK relay contact and LED power-on indicator for status monitoring. Cooling by natural free air convection without noise. Standards certified: RoHS compliant, TUV EN 60950-1, UL 508.
Common applications include powering electronic control systems, automation modules, and industrial machinery requiring reliable 6V DC supply. Its compliance with hazardous area certifications (Group A, B, C, Class I Division 2, D) assures suitability for challenging environments.
MEAN WELL MDR Series power supplies are well recognized for their quality and durability in industrial power management. Browse the extensive range of DIN Rail Power Supplies and accessories on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 85V to 264V AC.
It delivers a maximum output current of 10A.
The output voltage is 6V DC.
This unit measures 100mm in height, 40mm in width, and 90mm in depth.
The power rating is 60 watts.
It is RoHS compliant and certified to TUV EN 60950-1 and UL 508 standards.
The operating temperature range is from -20°C to +70°C.
Cooling is achieved through free air convection, requiring no additional fans or cooling mechanisms.
It is designed for 1 phase electrical systems.
It includes protections against short circuit, overload, and over voltage conditions.
This unit is intended for DIN Rail mounting on TS-35/7.5 or TS-35/15 rails.
It is suitable for powering electronic control systems, automation modules, and industrial machinery requiring a reliable 6V DC supply.
