Omron PCB Power Relay SPDT 12V DC Coil 16A Switching Current G5RL-1-E-HR DC12

Omron G5RL-1-E-HR DC12 PCB Power Relay is a robust and compact power relay designed for printed circuit board applications. Featuring a 12V DC coil and a switching current capacity of 16A, it supports both AC and DC switching voltages of 24V, making it suitable for a variety of industrial and electrical applications.

This relay uses a SPDT (Single Pole Double Throw) contact configuration with silver alloy contacts that provide excellent conductivity and long service life. The relay is designed with a solder terminal type mounting for reliable integration onto PCBs.

The low profile design, with a height of 15.7mm and compact length and width, makes it ideal for space-constrained applications. It is engineered to operate efficiently in temperatures ranging from -40°C up to 85°C, accommodating harsh environments commonly found in industrial, automation, and manufacturing settings.

Additional features include coil resistance of 360 ohms and coil power of 400 milliwatts, ensuring low energy consumption. The relay also offers low contact resistance of 100 milliohms which results in efficient switching with minimal power loss.

The device is RoHS compliant, emphasizing environmentally friendly manufacturing processes. Its flux proof design with 8mm creepage and clearance distance between coil and contacts enhances safety and reliability. This relay is made in China and is suitable for electrical, automation, industrial control, and signal conditioning applications.

The coil voltage is 12V DC ensuring reliable operation in DC circuits. Suitable for switching currents up to 16A and voltages of 24V AC/DC. Constructed with high-quality silver alloy contacts for durability and low resistance.

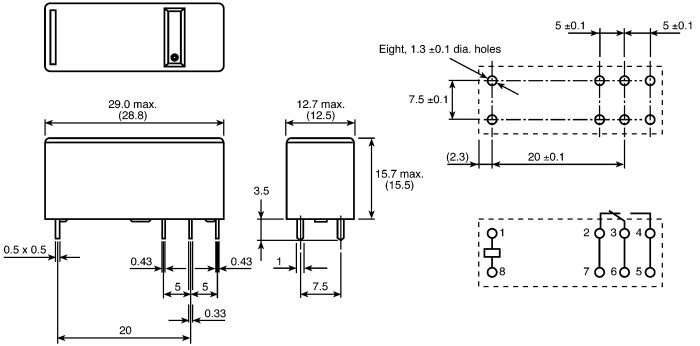

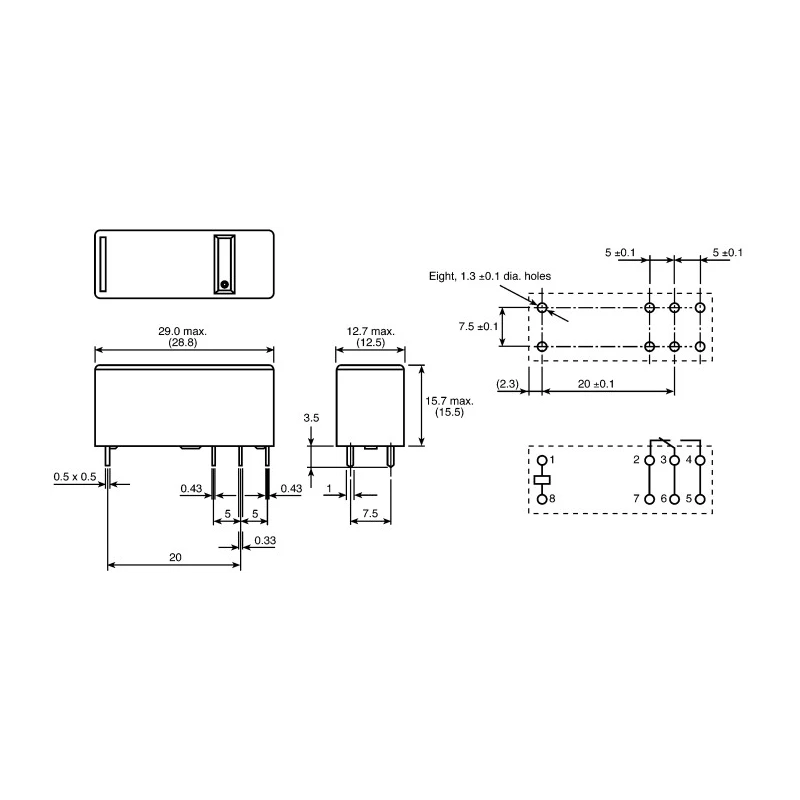

Compact low profile design with dimensions: 29mm length, 12.7mm width, and maximum height of 15.7mm. Operates within an ambient temperature range of -40°C to 85°C for versatile environmental conditions. Designed with solder terminal type for secure PCB mounting.

Coil resistance is 360 Ohms, coil power consumption is 400 mW. RoHS compliant ensuring environmental safety standards are met. Offers low contact resistance at 100 milliohms to minimize signal loss and heat generation. Flux proof design with 8mm creepage and clearance for electrical safety.

This power relay from Omron is an essential component for industrial and electrical control systems requiring reliable switching performance with a compact form factor. Browse more Power Relays and electrical components at EnvMart to complete your automation setup.
