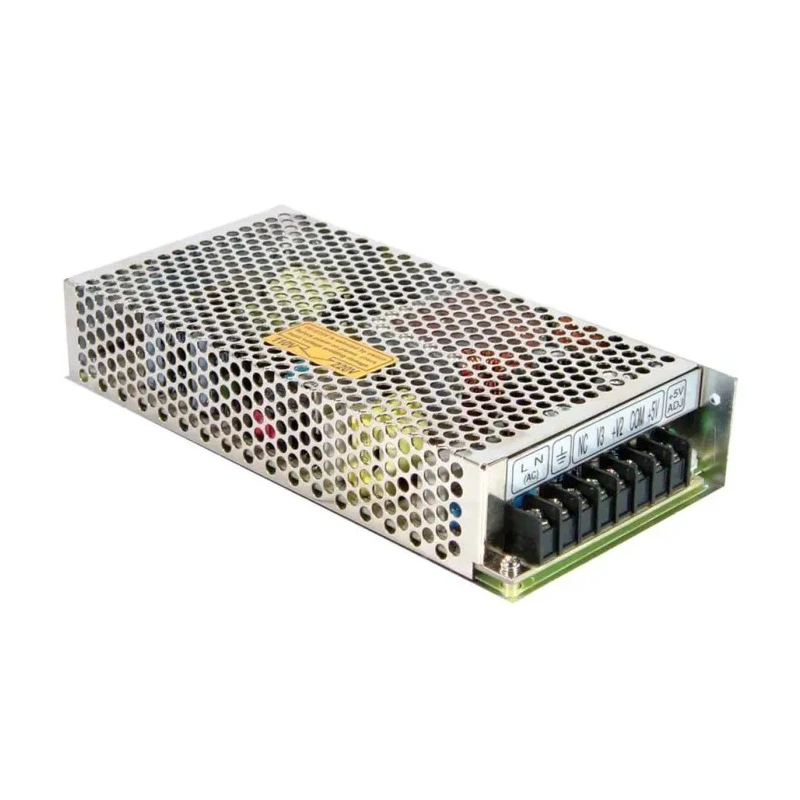

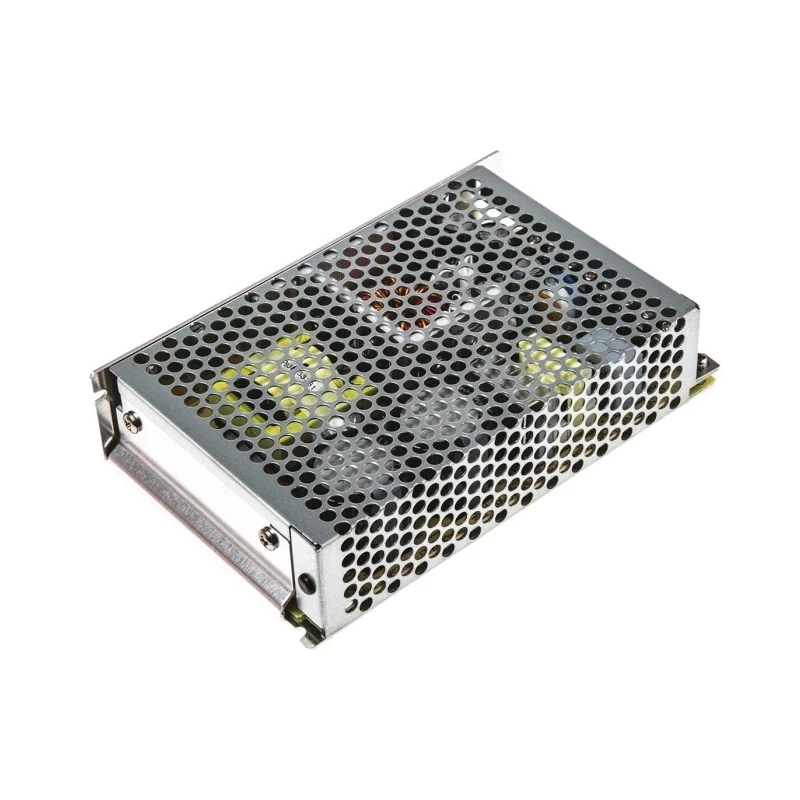

MEAN WELL RQ-85C Switching Power Supply 4 Output 12V DC 82.5W 370V DC, 264V AC RQ-85C

MEAN WELL RQ-85C Switching Power Supply is a robust 4-output power unit designed for reliable operation in various industrial and electronic environments. This chassis mount power supply provides a maximum output voltage of 12V DC at 7A current, delivering a total power of 82.5 W. It supports a wide input voltage range from 88V AC up to 370V DC, enabling use with diverse power sources.

The unit operates efficiently at 77 percent efficiency, minimizing energy waste and heat generation. With its compact design of 159mm length, 97mm width, and 38mm depth, it fits easily into control panels or electronic assemblies. The power supply is rated to operate in ambient temperatures from -25°C to 70°C, making it suitable for demanding industrial conditions.

MEAN WELL incorporates long-life electrolytic capacitors rated for up to 105°C, enhancing reliability and longevity. Users benefit from adjustable output voltage on the first output line within ±10%, allowing fine-tuning to specific application needs. Screw terminals simplify wiring and installation, while an LED indicator displays power-on status for monitoring.

Safety and compliance are ensured with approvals from TUV, UL, CSA, EAC, CCC, BSMI, AS/NZS, and IEC standards. The power supply features built-in protections against short circuits, overloads, and over voltage conditions, safeguarding connected devices and the power supply itself. A de-rating applies above 35°C operating temperature to preserve lifespan.

This switching power supply is ideal for power distribution in industrial automation, telecommunications, electronic instrumentation, and other critical applications requiring stable low-voltage DC power. It undergoes 100% full load burn-in testing to guarantee performance and reliability.

High efficiency of 77 percent ensures energy savings. Supports a wide input voltage range from 88V AC to 370V DC. Compact chassis mount design with dimensions 159mm length, 97mm width, and 38mm depth. Operates reliably in temperature range from -25°C to 70°C with built-in protections.

Equipped with screw terminals for easy installation and LED power indicator. Complies with global safety standards including TUV, UL, CSA, and IEC certifications. Features short circuit, overload, and over voltage protection for device safety.

Designed for industrial and electronic component power supply applications. Explore a wide range of Switching Power Supplies and related electronics components on EnvMart for your industrial and technical needs.
