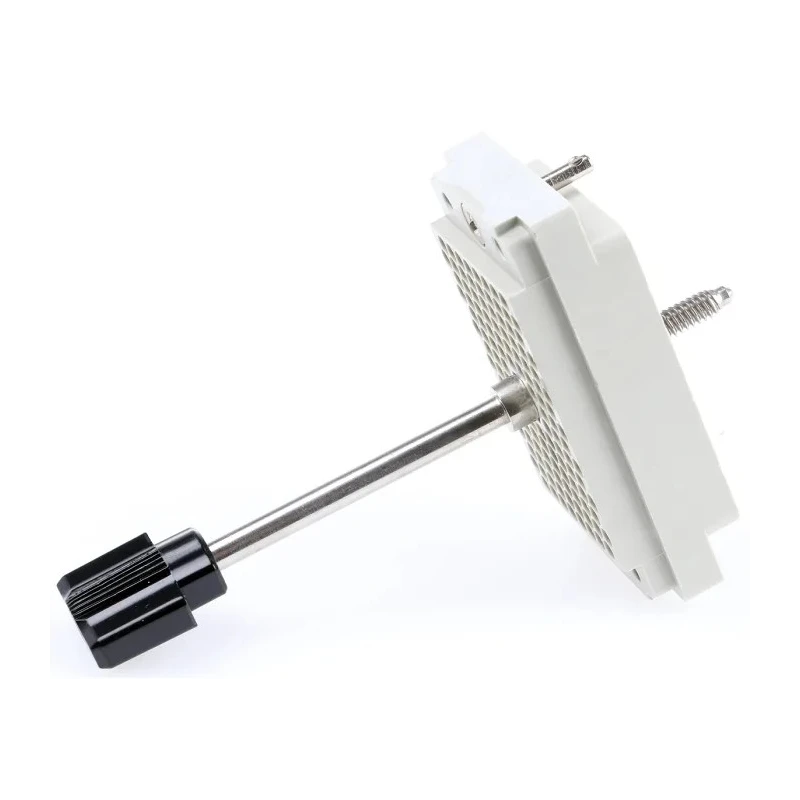

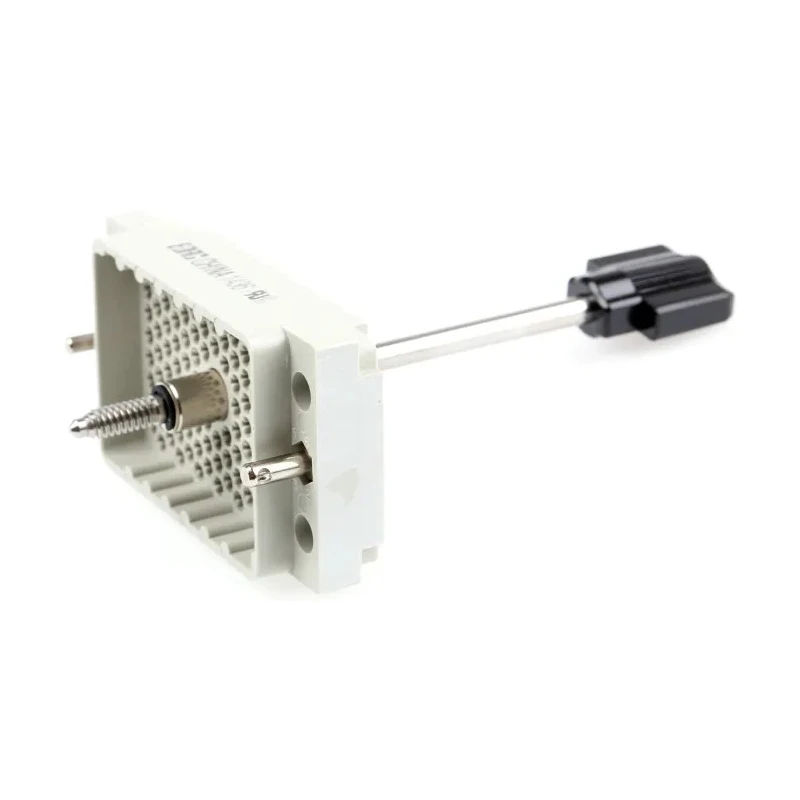

EDAC Heavy Duty Power Connector Plug 120 Way Straight Male D-Sub Connector Crimp Termination Phosphor Bronze 516-120-000-301
Specifications
| Country of Origin | China |
|---|---|
| Brand | EDAC |
| Orientation | Straight |
| Current | 8.5A |
| Contact Material | Phosphor Bronze |
| Series | 516 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- The connector features 120 contact points for high-density connections.
- Contacts are manufactured from phosphor bronze with gold plating for reliable conductivity.
- Has a crimp type termination ensuring secure and robust wire connections.
- Rated for a current of 8.5 Amperes suitable for heavy-duty power use.
- Operates safely under extreme temperatures from -65°C to 105°C.
- Designed with male gender contacts and straight connector orientation.
- Contacts have a metal-to-metal hermaphroditic design for flexibility in mating.
- Ideal for applications including audio broadcast, railway signalling, oil and gas control systems, and automotive test setups.
Product Description
The EDAC 516-120-000-301 heavy duty power connector is a 120 way, straight male D-Sub connector designed for high-reliability industrial and control applications. It features crimp termination and phosphor bronze gold-plated contacts to ensure excellent conductivity and durability.
This connector can sustain a current rating of 8.5A and operate effectively in temperatures ranging from -65°C up to 105°C, making it suitable for harsh environments. The male connector employs a hermaphroditic metal-to-metal contact design, providing great flexibility in mating configurations and ensuring secure connection stability.
These connectors are widely used in audio broadcast systems, railway signalling infrastructure, oil and gas industry control systems, automotive control, and test systems requiring safety and ultra-reliability.
The 120 contact points allow for high-density connection solutions. Phosphor bronze contacts with gold plating ensure signal integrity and resistance to corrosion. Crimp termination type allows for reliable wire attachment.
Robust operation under temperatures from -65°C to 105°C allows use in demanding environments. Secure and stable connections minimize downtime in critical industrial situations.
EDAC connectors are designed to meet industrial quality standards and provide long-lasting performance for demanding applications. This particular model is made in China and forms part of EDAC's 516 series of connectors.
Explore a wide range of Heavy Duty Power Connectors and related components available in the Electronics & Electricals category at EnvMart for your industrial, manufacturing, and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 8.5 Amperes, making it suitable for heavy-duty power applications.
It operates safely under extreme temperatures ranging from -65°C to 105°C.
This connector features 120 contact points for high-density connections.
It employs a crimp termination type, ensuring secure and robust wire connections.
The contacts are made from phosphor bronze and are gold plated to ensure reliable conductivity and resistance to corrosion.
This model has a straight connector orientation.
It is ideal for applications including audio broadcast, railway signalling, oil and gas control systems, and automotive test setups.
The connector features male gender contacts.
This connector is made in China.
It meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
This model is part of the EDAC 516 series of connectors.
It is classified as a heavy duty power connector, specifically a D-Sub connector.
