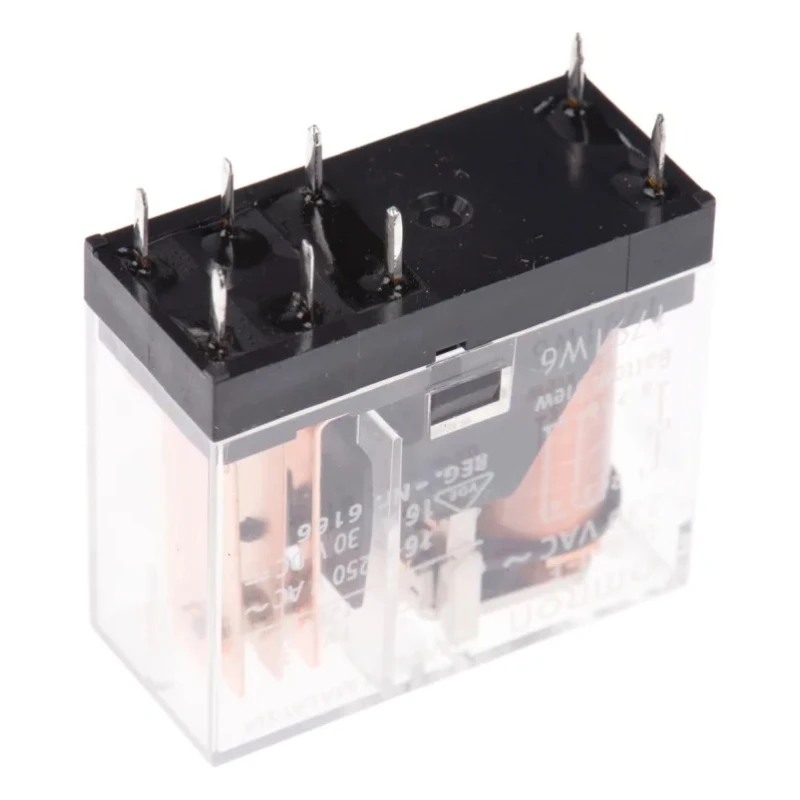

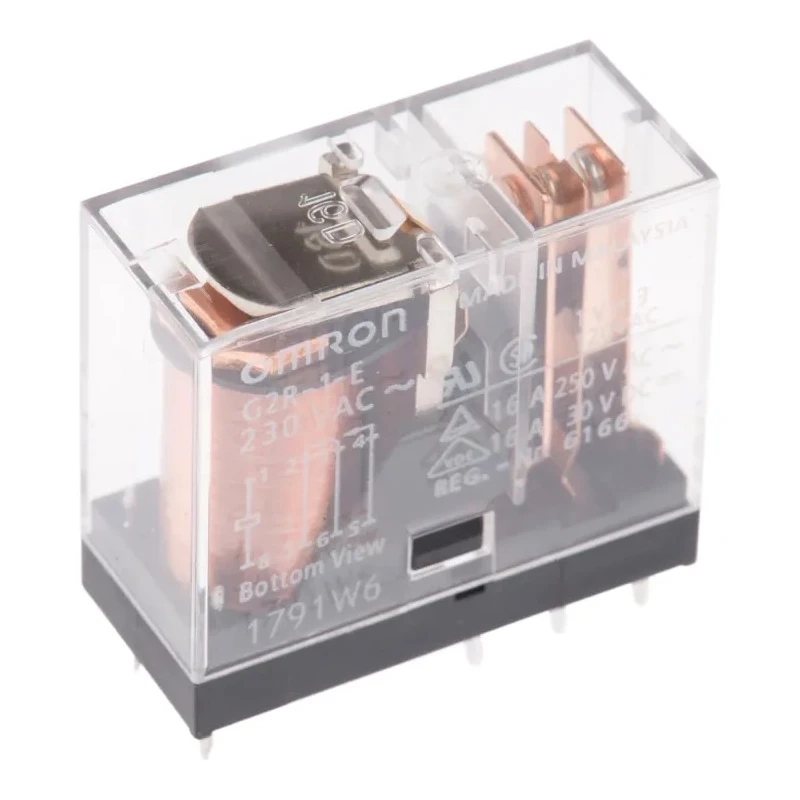

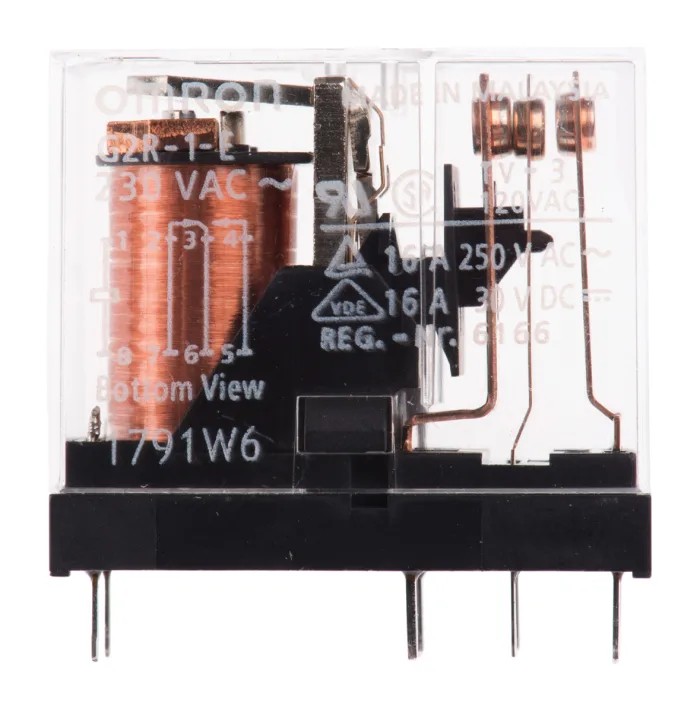

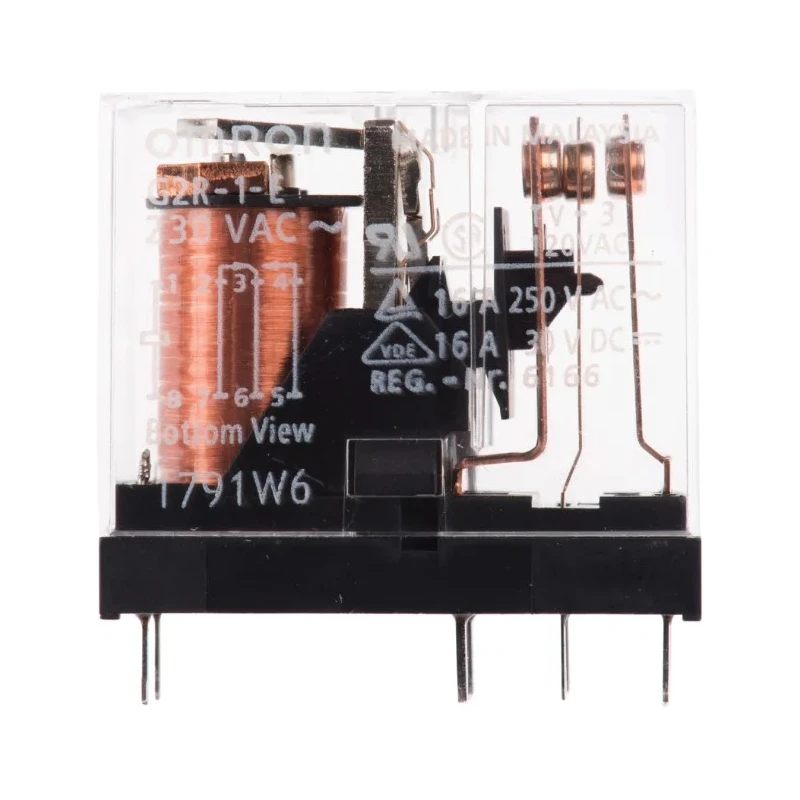

Omron General Purpose PCB Power Relay 230V AC Coil Voltage 16A Switching Current SPDT Contact Configuration G2R-1-E AC230

Omron G2R-1-E AC230 is an industrial grade general purpose PCB power relay designed for use in various domestic and commercial electrical applications. It features a 230V AC coil voltage and provides a switching current capacity of 16A with an SPDT (Single Pole Double Throw) contact configuration, making it suitable for reliable switching and control tasks.

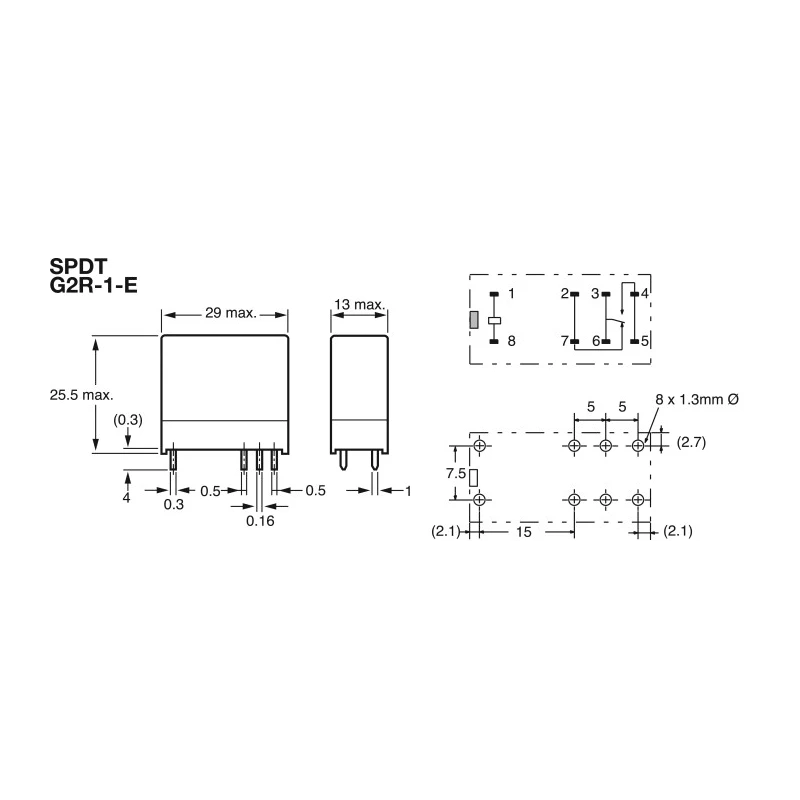

This relay is designed specifically for PCB mounting, facilitating easy integration into printed circuit boards. Its compact size with height 25.5 mm, width 13 mm, and length 29 mm allows it to fit efficiently in constrained spaces without compromising performance.

The contact material is high-quality silver alloy, providing excellent conductivity and long service life. With a contact resistance of just 50 mΩ and coil resistance of 26.9 kΩ, the relay ensures efficient operation and minimal power loss.

Operating temperature range is broad, spanning from -40°C to 70°C, enabling use in harsh environmental conditions. It supports switching power up to 1.25 kVA, switching AC voltages up to 440V, and DC voltages up to 125V, addressing diverse electrical switching requirements.

Manufactured under strict quality control in Indonesia, the Omron G2R series adheres to RoHS compliance, ensuring environmentally safe materials and practices. This product is ideal for industrial, automation, electrical control, HVAC, manufacturing, and other commercial applications requiring reliable PCB relay solutions.

Designed for both domestic and commercial PCB mounting applications. Contact configuration is Single Pole Double Throw (SPDT) for versatile switching. Operates with a coil voltage of 230V AC and can switch up to 16 Amperes of current.

Constructed with silver alloy contacts ensuring durability and excellent conductivity. Compact dimensions of 25.5mm height, 13mm width, and 29mm length for space-saving PCB integration. Coil resistance of 26.9 kilo-ohms ensures stable operation.

Wide operating temperature range from -40°C to 70°C allows use in various environments. Switching capabilities: 1.25 kVA power, 440V AC maximum AC voltage, and 125V DC maximum DC voltage. Compliance with RoHS standards for environmental safety.

Manufactured in Indonesia to assured quality standards. Explore more in EnvMart’s Power Relays category for robust electrical components designed to enhance industrial and commercial automation projects.
