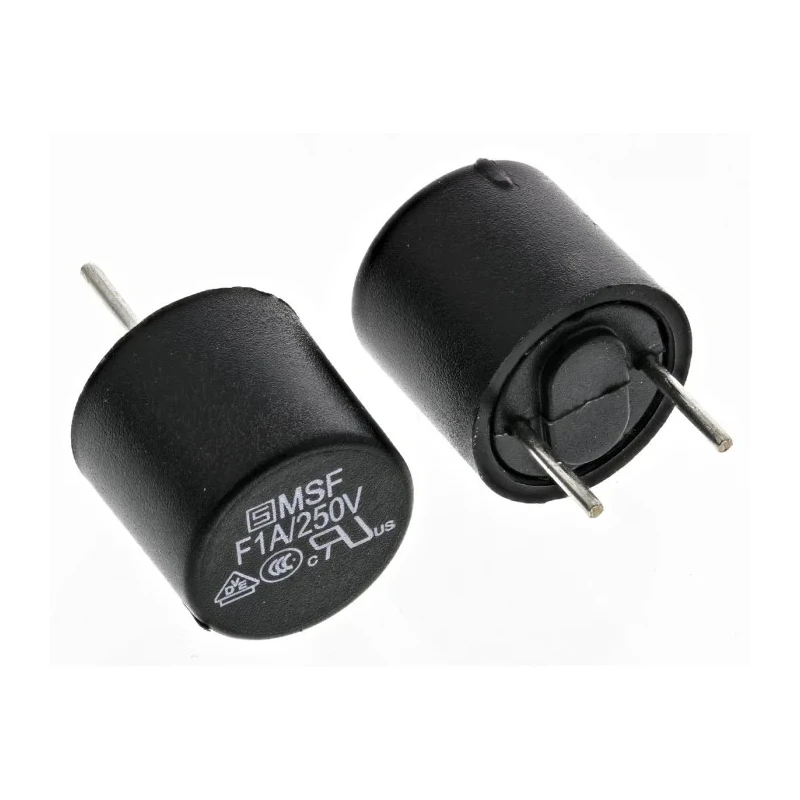

Schurter Non-Resettable Fuse Radial 1A Current Rating 250V ac Voltage Fast Acting 0034.6014

Schurter 0034.6014 Non-Resettable Fuse Radial 1A 250V ac is a high quality fast acting fuse designed for direct solder mounting on printed circuit boards and carriers. Its thermoplastic body ensures durability and safety during use.

The fuse features a radial lead orientation with a precise lead length of 5.08 mm, facilitating ease of installation on PCBs. It supports a current rating of 1 ampere at an operating voltage of 250 volts AC, making it suitable for sensitive electronic circuits requiring reliable overcurrent protection.

With an operating temperature range from -55°C up to 125°C, this Schurter fuse performs well in harsh industrial and commercial environments. Its body dimensions measure 18.8 mm in length, 8.5 mm in height, and 4.3 mm in width, with a lead diameter of 0.64 mm and diameter of the fuse body at 8.5 mm, making it compact and lightweight for space-constrained applications.

The fuse possesses a breaking capacity of 35 amperes and is fast acting to quickly interrupt fault currents and protect sensitive electronic components. It is resistant to soldering heat of up to 260°C for 10 seconds, ensuring robustness during PCB assembly processes.

This model complies with multiple international standards and certifications including RoHS, UL, IEC 127-3, EN 60127, DIN-VDE 0820, SEMKO-approved, and CSA-certified, ensuring high safety and quality benchmarks are met.

Typical applications include electronic equipment, printed circuit boards, and carrier mounting in industrial, laboratory, and manufacturing environments. The Schurter MSF 250 series fuse guarantees dependable circuit protection with compact dimensions and fast response.

The fuse has a current rating of 1 ampere and operates at 250 volts AC. It features a radial lead orientation with thermoplastic body material. Operating temperature range is from -55°C to 125°C suitable for varied environments.

Fuse body dimensions are 18.8 mm length, 8.5 mm height, and 4.3 mm width with 0.64 mm lead diameter. It provides a breaking capacity of 35 amperes for circuit protection. The fuse is fast acting with resistance to soldering heat of 260°C for 10 seconds.

Certified to standards including RoHS, UL, IEC 127-3, EN 60127, and DIN-VDE 0820. Lightweight and compact for efficient PCB mounting and use in electronic applications. Explore more high quality fuses and Non-Resettable Fuse options through EnvMart's wide industrial electrical components catalog.
