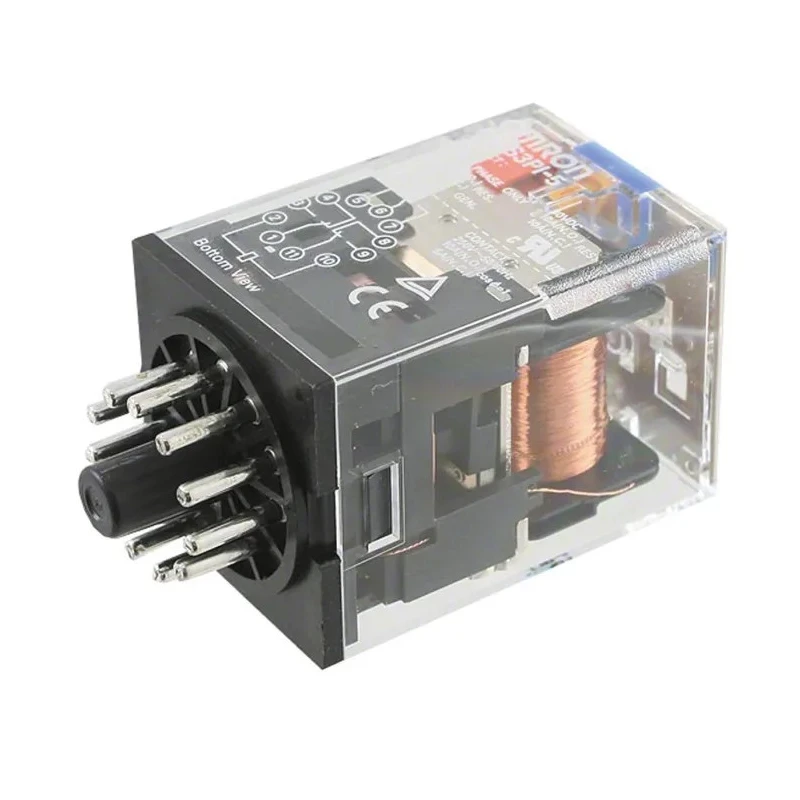

Omron Power Relay 110V DC Coil, 10A Switching Current, 3PDT Contact Configuration MKS3PI-5 110VDC

Omron MKS3PI-5 110VDC power relay features a 110V DC coil voltage and a versatile 3PDT (Triple Pole Double Throw) contact configuration. This plug-in relay is part of the MKS series that supports demanding electrical and automation control applications requiring robust performance and safety.

The relay is designed with a coil resistance of 9kΩ and coil power consumption of 1.4W. It can switch currents up to 10A with maximum switching voltages rated at 250V AC and 250V DC, making it suitable for high-voltage industrial circuits and control systems. The silver alloy contacts reduce resistance to 50mΩ, enhancing conductivity and reliability.

Engineered to operate reliably within an ambient temperature range of -40°C to +60°C, this relay is adaptable to harsh environmental conditions without performance degradation. Its compact dimensions of 34.5mm length, 53.3mm width, and 34.5mm height allow for seamless integration in tight assemblies.

This product meets stringent UL and CSA safety standards and uses RoHS-compliant materials, demonstrating compliance with international safety and environmental regulations. The relay provides excellent isolation with a clearance of 2.5 kV between coil and contacts to protect sensitive circuits and personnel.

Applications include automation systems, industrial control circuits with multiple switching requirements, and general-purpose electronic machinery where reliable and durable relay performance is essential. The 3PDT configuration allows simultaneous control of multiple circuits, increasing operational flexibility in complex systems.

Designed for plug-in installation providing ease of replacement and maintenance. Supports maximum switching current of 10A ensuring durable operation. Operates over a wide temperature range from -40°C to +60°C for diverse environments.

Features high switching voltages up to 250V AC/DC suitable for high voltage circuits. Constructed with silver alloy contacts to ensure excellent conductivity and longevity. Offers 2.5 kV isolation between coil and contacts for enhanced safety.

Complies with UL and CSA standards assuring quality and reliability. Rated for 100,000 electrical and 5,000,000 mechanical operations ensuring long service life. Explore Omron relays and power relay products at EnvMart for industrial-grade quality and performance.
