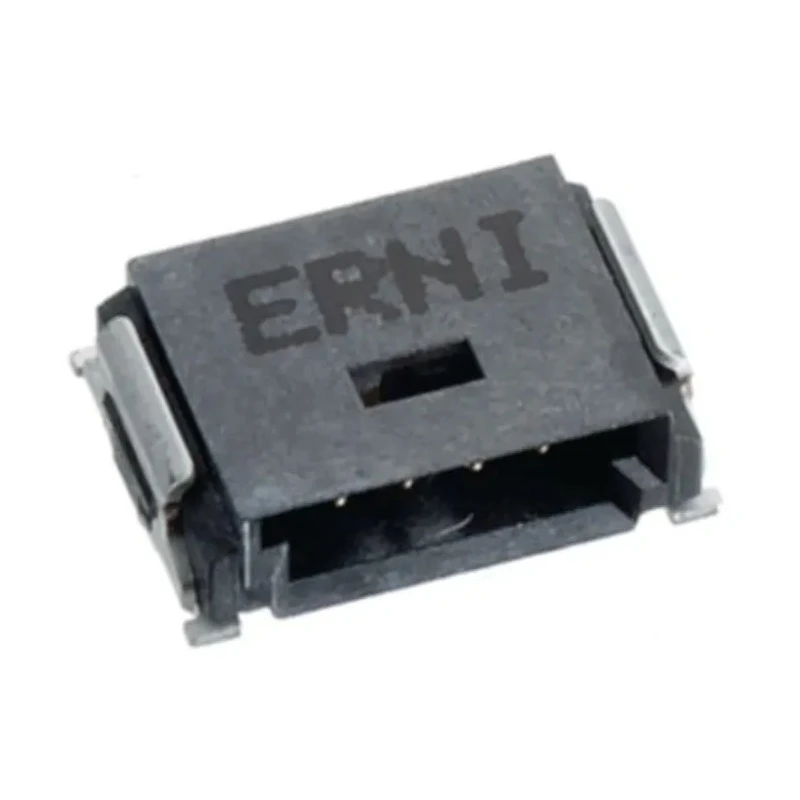

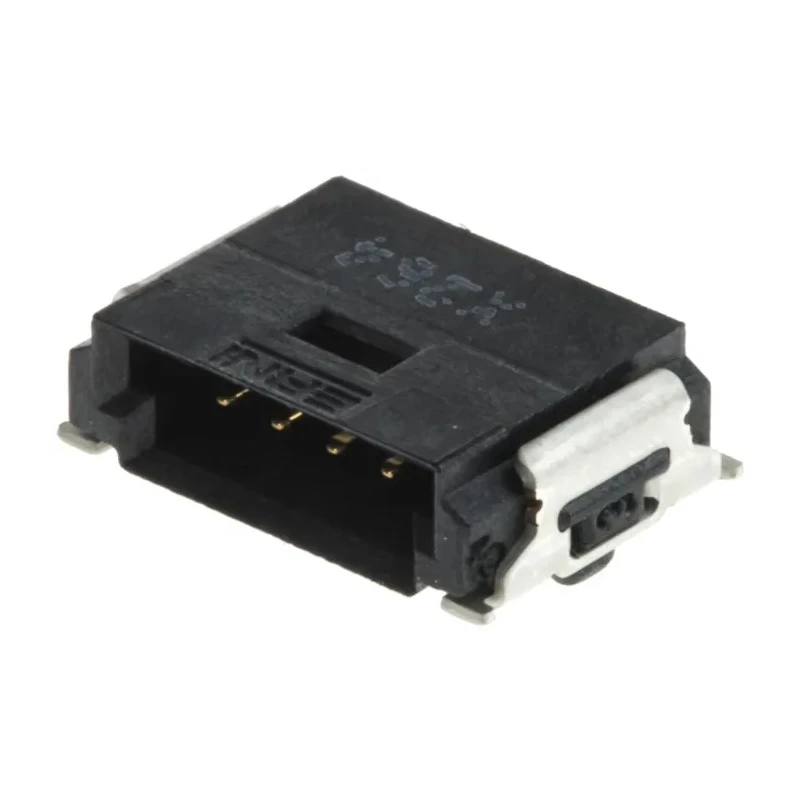

ERNI MiniBridge Series Right Angle Surface PCB Header 4 Contacts 1.27 mm Pitch 1 Row Shrouded 214012 / 214012-E
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | ERNI |
| Orientation | Right Angle |
| Current | 4A |
| Model | 214012 / 214012-E |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | MiniBridge |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a single row design with shrouded housing for secure connections.
- Constructed with liquid crystal polymer housing providing high temperature resistance.
- Supports up to 4A current at 300V voltage rating.
- Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance.
- Suitable for diverse automotive, industrial electronics, and medical device applications.
- Designed for surface mount technology with solder termination.
- Operates effectively between -55°C and 100°C.
- Includes pick-and-place cover for automated assembly and precise PCB positioning.
Product Description
ERNI 214012 / 214012-E MiniBridge Series right angle surface PCB header is engineered for high reliability in electronic connection systems. It features a 4-contact configuration with a fine 1.27 mm pitch and a single-row, shrouded design that ensures robust wire-to-board connectivity.
The connector housing is made of liquid crystal polymer, a durable material able to withstand high temperatures, making it compatible with lead-free reflow soldering processes. Gold-plated copper alloy contacts offer excellent electrical performance with low contact resistance and enhanced corrosion resistance, suitable for environments requiring up to 4A current and 300V voltage rating.
This PCB header's orientation is right angle, designed for efficient space utilization on circuit boards. The product includes ruggedized metal clips providing reliable retention force, along with two pegs (round and oval) to aid exact positioning during PCB assembly. These features facilitate automated pick-and-place manufacturing and precise mounting.
Operating temperature range from -55°C to 100°C supports usage in automotive, industrial, consumer electronics, and medical technologies. Despite the miniature form factor, the MiniBridge system offers robust performance and durability, designed for up to 500 mating cycles.
Single row SMT plug with 4 contacts at 1.27 mm pitch. Liquid crystal polymer housing for high temperature endurance. Gold-plated copper alloy contacts for excellent conductivity. Right angle orientation for space-saving PCB layouts.
Reliable retention force with ruggedized metal clips. Includes guiding pegs for accurate PCB positioning. Compatible with lead-free reflow soldering processes. High current capacity suitable for automotive and industrial applications.
Originating from Germany, this ERNI MiniBridge PCB header is a premium choice for demanding electronic connectivity solutions. EnvMart offers this product to support industrial and commercial electronics manufacturing needs, ensuring quality and reliable performance.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 4A.
It has a voltage rating of 300V.
The contacts are spaced at a pitch of 1.27 mm.
The housing is constructed from liquid crystal polymer, which provides high temperature resistance.
This unit uses solder termination for connection.
It operates effectively between -55°C and 100°C.
This model features 4 contacts.
It has a right angle orientation, designed for efficient space utilization on circuit boards.
The contacts are made from gold-plated copper alloy, ensuring reliable conductivity and corrosion resistance.
Yes, it includes a pick-and-place cover for automated assembly and precise PCB positioning.
It is suitable for automotive, industrial electronics, and medical device applications.
This product originates from Germany.
