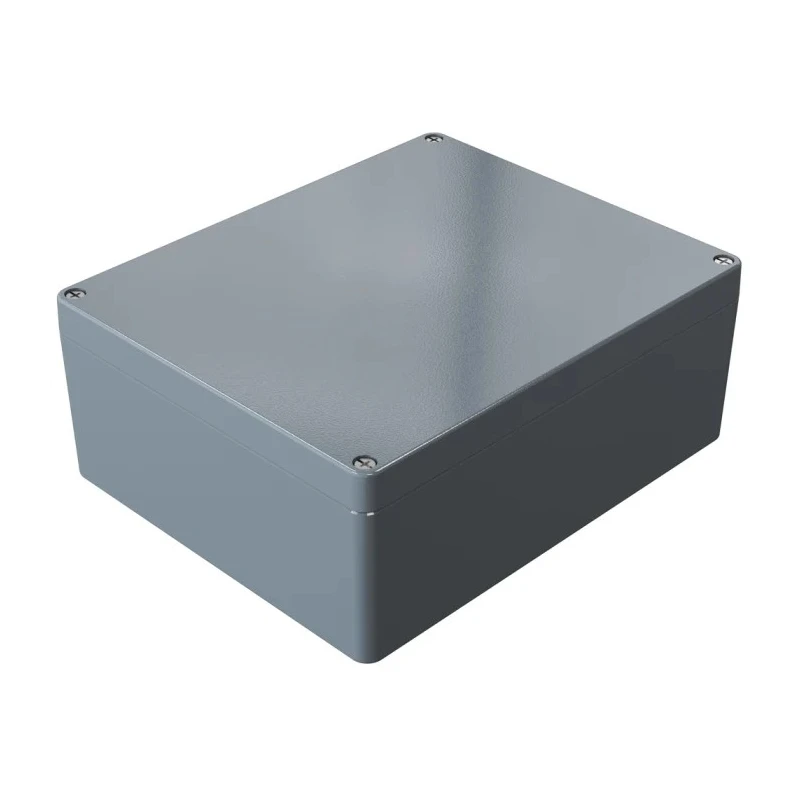

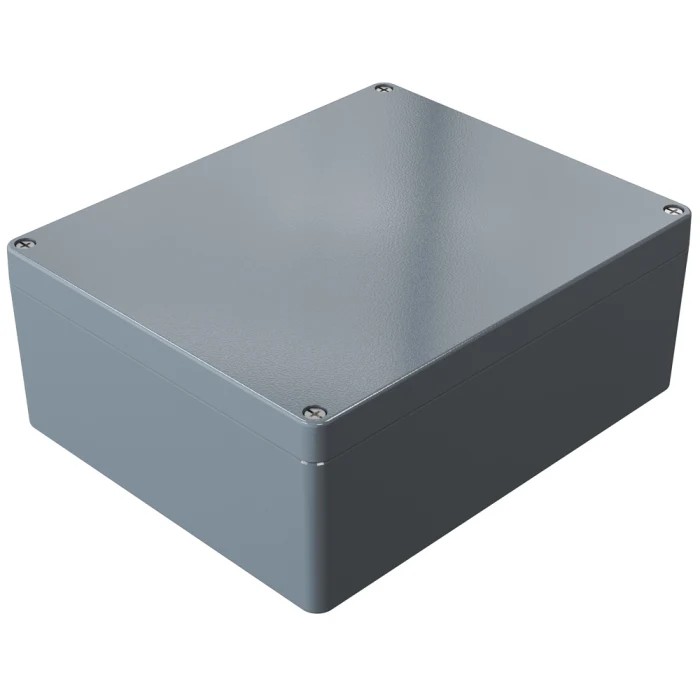

Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure IP66 IK09 280mm x 230mm x 280mm 01232811

Rose 01232811 Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure offers high-grade protection for delicate electronic components and industrial applications. Constructed from die cast aluminium, this enclosure ensures high mechanical strength, corrosion resistance, and excellent heat dissipation, making it ideal for harsh environments.

With external dimensions of 280mm length, 230mm width, and 280mm height, it fits in compact spaces without compromising on usability. The enclosure features an IP66 ingress protection rating, guaranteeing dust-tight performance and resistance against powerful water jets for outdoor and indoor usage. Additionally, the IK09 impact rating certifies its ability to withstand impacts up to 7 joules, offering robust protection for the housed components.

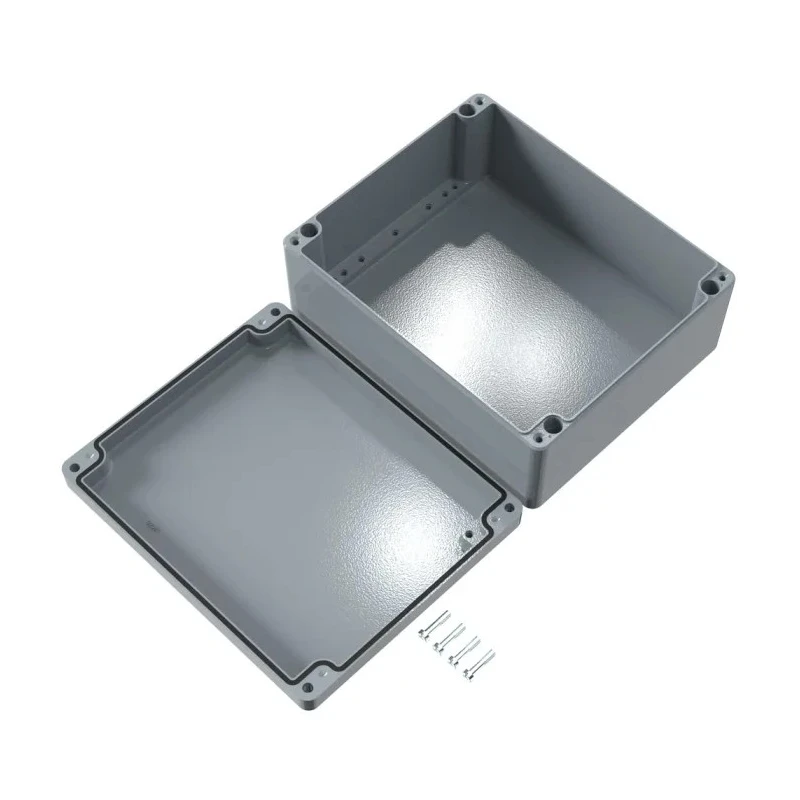

This model includes a grey lid and a polyurethane gasket ensuring a tight seal to maintain the internal environment. The enclosure is unshielded and flangeless, conforming to RoHS compliance standards which supports environmentally friendly manufacturing. It is specially certified for hazardous areas including maritime applications and meets UL 508 and EN 60079-0 standards for safe operation in explosive atmospheres.

Installation flexibility is provided via support for DIN rails or mounting plates, accommodating various industrial setups. The operating temperature range of -40°C to +100°C further enhances its suitability for extreme industrial conditions such as food and beverage production, automation technology, switch button protection, and cable management.

Constructed from die cast aluminium providing corrosion resistance and high conductivity. IP66 rated, protecting against dust ingress and high-pressure water jets. IK09 impact rating for strong resistance to mechanical impacts.

Polyurethane gasket ensures secure sealing of enclosure. RoHS compliant, suitable for hazardous maritime and UL rated environments. Supports DIN rail or mounting plate installations for versatile mounting options. Compact dimensions of 280mm x 230mm x 280mm ideal for limited space applications.

Operates efficiently in wide temperature range from -40°C to +100°C. Lightweight at 3 kg promotes ease of installation and handling.

This Rose Aluminium Standard Series enclosure is designed for demanding industrial, manufacturing, electrical, and automation environments. Its protective properties safeguard sensitive electronic and automation components from environmental stressors, mechanical shocks, and hazardous conditions.

Explore the Rose range for additional sizes and configurations to meet varied installation requirements in the Electrical Enclosures category on EnvMart.
