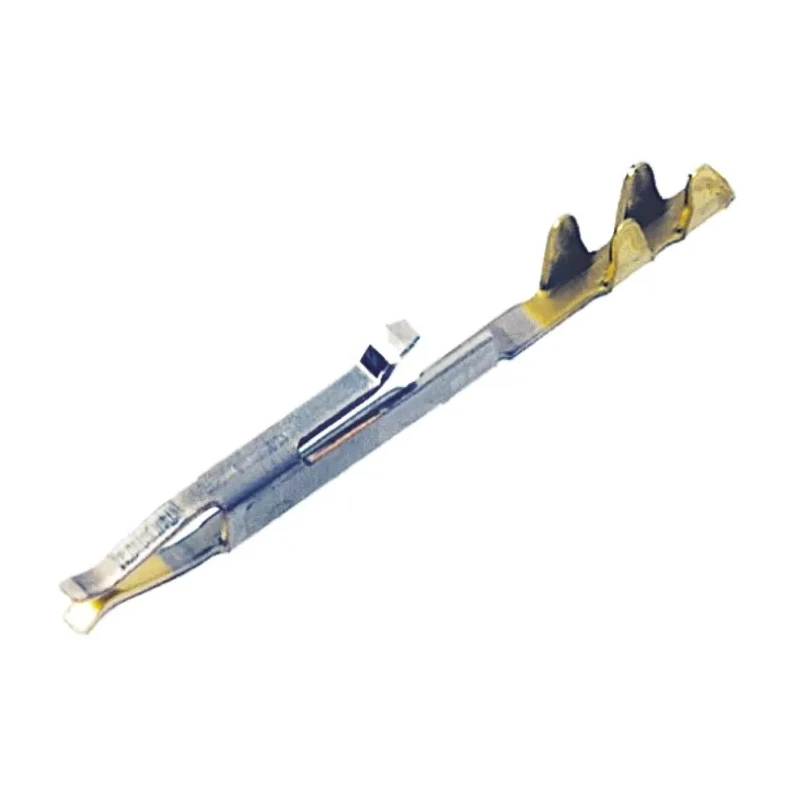

TE Connectivity FFC Series Female Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max, Gold Plated Contact, Phosphor 1-487547-1

TE Connectivity 1-487547-1 FFC Series Female Crimp Terminal offers a high-quality solution for cable-to-board IDC connections with a robust design suitable for industrial and electronic applications.

The crimp terminal is female gender type, specifically engineered for use with FCC connector housings. It supports wire gauges ranging from 26 AWG minimum to 22 AWG maximum, accommodating flexible flat cable (FFC) configurations.

Featuring gold-plated contacts with a thickness of 0.76 μm (30 microinches) and tin plating on the crimp area, this terminal ensures excellent electrical conductivity and long-term durability. The contacts are made from phosphor bronze, providing mechanical strength and reliable connection integrity.

This terminal operates across a temperature range from -55°C to 105°C, making it suitable for a wide variety of industrial, electronic, and commercial environments. The maximum contact resistance is rated at 25 milliohms, guaranteeing low resistance interfaces critical in sensitive electronic circuits.

Its compact length of 12.01 mm fits System 50 receptacle housings, which accepts 0.38 mm square posts with lengths between 3.18 mm and 8.89 mm. The crimp termination type enables easy, secure, and efficient assembly in production settings.

This female crimp terminal supports wire sizes from 26 AWG to 22 AWG. Rated for a current of 1.5 Amperes, suitable for low power applications. The contact plating is gold for enhanced conductivity and corrosion resistance.

Phosphor bronze contact material ensures mechanical strength and electrical reliability. Operates within a temperature range of -55°C to 105°C. Termination type is crimp, designed for use with FCC connector housing. Length of the terminal is 12.01 mm, compatible with System 50 receptacle housings.

Maximum contact resistance is 25 milliohms for low loss connections.

The AMPMODU System 50 Interconnection System emphasizes compact space-saving designs and high-density contact spacing of 1.27 x 2.54 mm, ideal for high-density electronic applications such as industrial controls, HVAC equipment, manufacturing lines, and other electronic system assemblies.

TE Connectivity's renowned reliability and performance make this crimp terminal an excellent choice for efficient and durable wire-to-board connections in demanding environments. Explore further electronic connectors and Crimp Contacts on EnvMart to suit your industrial and electronics assembly needs.
