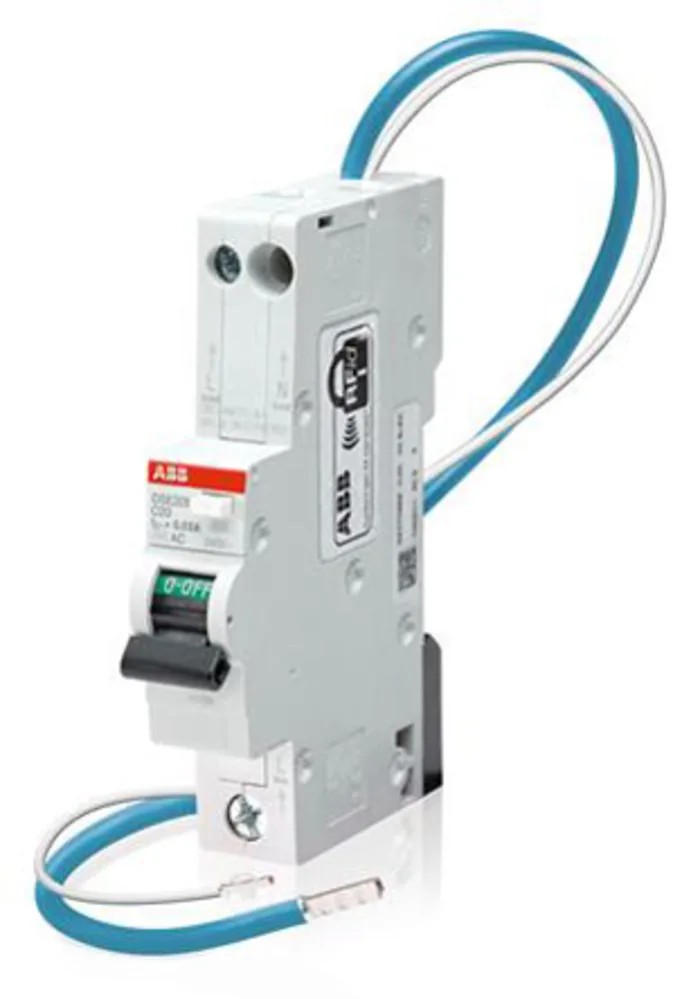

ABB Residual Current Circuit Breaker with Overload Protection 50A 1-Pole 30 mA 2CSR275051R1504 DSE201 M C50 AC30 - N Blue

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker with Overload Protection 50A 1-Pole 30 mA 2CSR275051R1504 DSE201 M C50 AC30 - N Blue



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	System Pro M Compact
Brand	ABB
Height	115mm
Model	2CSR275051R1504 DSE201 M C50 AC30 - N Blue
Depth	69mm
Width	18mm
Mount Type	DIN Rail
Current Rating	50A
Series	DSE201 M
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	RoHS, IEC
Rated AC Voltage	240V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Earth Leakage Protection Type	AC
RCBO's	DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Key Features

Equipped with Type C tripping characteristics for reliable overload protection.
Designed for DIN rail mounting with thermal magnetic tripping mechanism.
Rated AC voltage of 240V suitable for various electrical systems.
Includes screw terminal type for secure wiring connections.
Compact dimensions of 115mm height, 69mm depth, and 18mm width enable easy installation.
Breaking capacity of 10 kA offers robustness against short circuits.
Operates effectively in temperatures ranging from -25 to +55 °C and frequency range of 50 to 60 Hz.
Compliant with RoHS and IEC standards ensuring quality and safety.

Product Description

ABB 2CSR275051R1504 DSE201 M Series Residual Current Circuit Breaker with Overload Protection delivers a reliable solution for electrical safety, combining earth leakage and overcurrent protection in one compact module. It is engineered for industrial, commercial, and residential applications requiring high performance and safety at a current rating of 50A and 1-pole design.

The device utilizes a thermal magnetic tripping mechanism and Type C tripping characteristics, ensuring robust defense against overloads and short circuits. Rated for 240V AC voltage systems, it offers a breaking capacity of 10 kA, making it suitable for diverse electrical infrastructures. The incorporation of AC earth leakage protection with 30 mA trip sensitivity enhances safety by rapidly responding to leakage currents.

The circuit breaker is designed for DIN rail mounting and features screw terminals for secure and convenient electrical connections. Its compact form factor with dimensions of 115mm height, 69mm depth, and 18mm width facilitates easy integration within electrical panels. The toggle switch reset actuator simplifies manual resetting after trips.

Operating over a wide temperature range from -25 to +55 °C and optimized for frequency ranges between 50 and 60 Hz, this breaker is versatile for various environments. The product complies with RoHS and IEC safety standards, affirming adherence to strict quality and environmental protocols.

Provides combined residual current and overload protection in a single module. Offers thermal magnetic tripping operation with Type C characteristics. Compact dimensions allow efficient use of panel space. Supports secure installation with DIN rail mounting and screw terminals.

Suitable for protection against short circuits, overloads, and earth leakage faults. Ensures user-friendly operation with toggle switch reset actuator. Compliance with international standards guarantees quality assurance.

This ABB Residual Current Circuit Breaker is ideal for use in industrial, construction, electrical panels, and commercial facilities requiring advanced circuit protection. Explore the Electronics & Electricals category on EnvMart for a wide range of circuit breakers and related protective devices.
