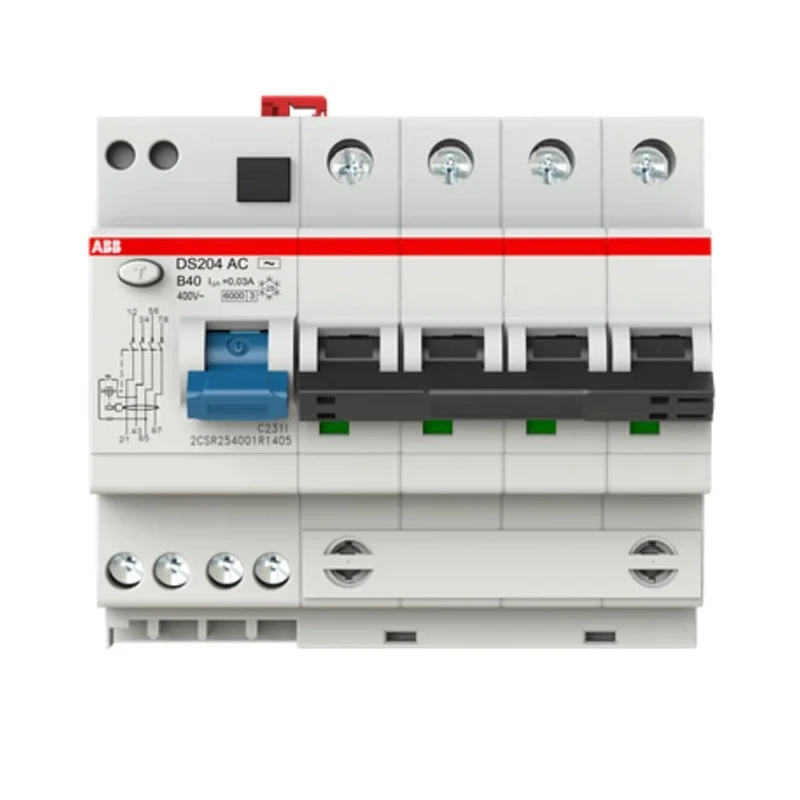

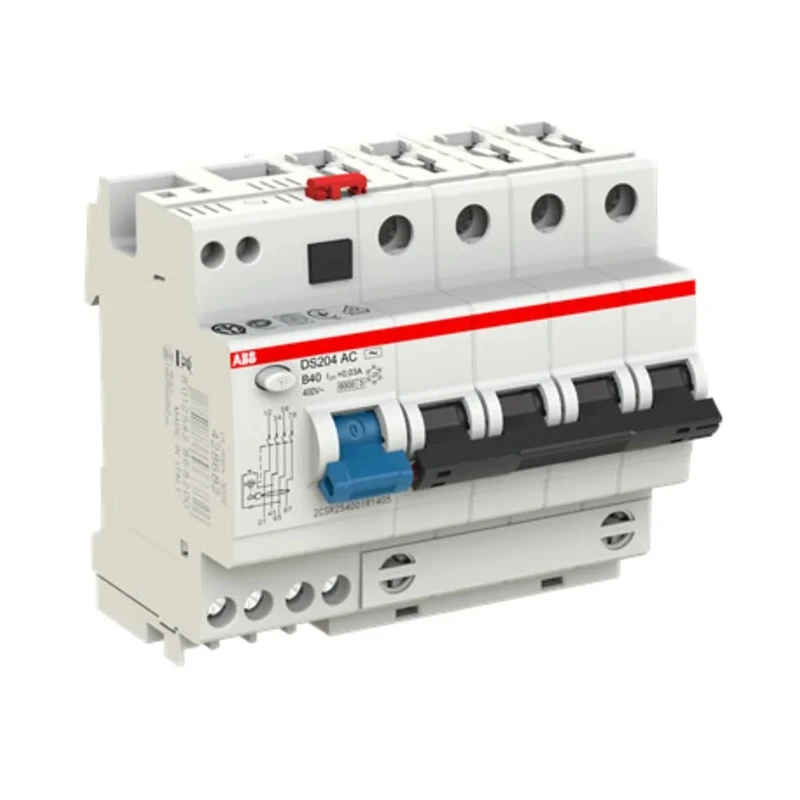

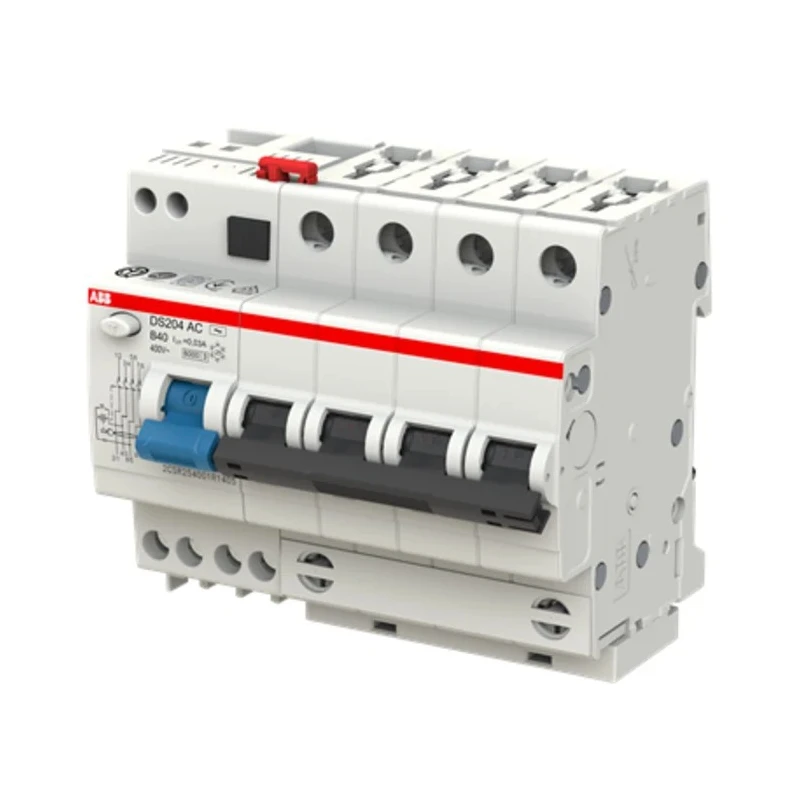

ABB Residual Current Circuit Breaker with Overload Protection 40A Current Rating 4-Pole 30mA Trip 2CSR254001R1405



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS200
Brand	ABB
Height	93mm
Model	2CSR254001R1405
Depth	69mm
Width	105mm
Current Rating	40A
Series	DS200
Terminal type	Busbar
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	IEC/EN 60947-2 IEC/EN 61009-1 Standards
Rated AC Voltage	400V ac
Tripping Characteristics	Type B
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	AC

Key Features

Designed with Type B tripping characteristics to meet specific application needs.
Supports a 4-pole connection for complex electrical systems.
Provides effective short-circuit and overload protection with a 10kA breaking capacity.
Equipped with lever-type reset actuator for easy operation.
Features busbar terminal type suitable for secure and robust connections.
Complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards ensuring industrial safety and reliability.
Operates within an ambient temperature range of -25 to +55 °C for versatile environment use.
Ideal for residential, commercial, and industrial electrical installations.

Product Description

ABB 2CSR254001R1405 Residual Current Circuit Breaker with Overload Protection is a high-performance electrical safety device engineered for safeguarding electrical systems against overloads, short circuits, and earth faults. Rated at 40A with a trip sensitivity of 30mA, it ensures timely interruption of fault currents to prevent electrical hazards.

This 4-pole breaker is part of the DS200 series and features Type B tripping characteristics, making it suitable for applications requiring sensitive earth fault detection including electronic equipment and mixed load environments. The breaker supports a high breaking capacity of 10kA at a rated AC voltage of 400V, accommodating demanding power systems.

The lever reset actuator provides convenient manual control, while the busbar terminal type offers reliable connection robustness. Built to meet IEC/EN 60947-2 and IEC/EN 61009-1 standards, it assures compliance with global electrical safety regulations.

With compact dimensions measuring 105mm width, 69mm depth, and 93mm height, the breaker is ideal for installations with limited space and is mounted easily on standard DIN rail setups. It is designed to perform reliably across ambient temperatures ranging from -25 to +55 °C, making it versatile for residential, commercial, and industrial environments requiring robust circuit protection.

Type B tripping characteristics for specialized earth fault detection. High breaking capacity of 10kA for reliable fault interruption. Busbar terminals ensure secure electrical connections. Complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards.

Compact size suitable for varied installation conditions. Resilient operation within a wide ambient temperature range. Lever-type reset actuator for ease of use. Recommended for residential, commercial, and industrial electrical safety.

This Residual Current Circuit Breaker is essential for enhancing safety and minimizing electrical hazards caused by overloads and earth faults. It is perfectly suited for modern electrical systems requiring dependable protection solutions. Explore EnvMart's extensive range of circuit breakers and other electrical protection devices to find tailored solutions for your safety requirements.
