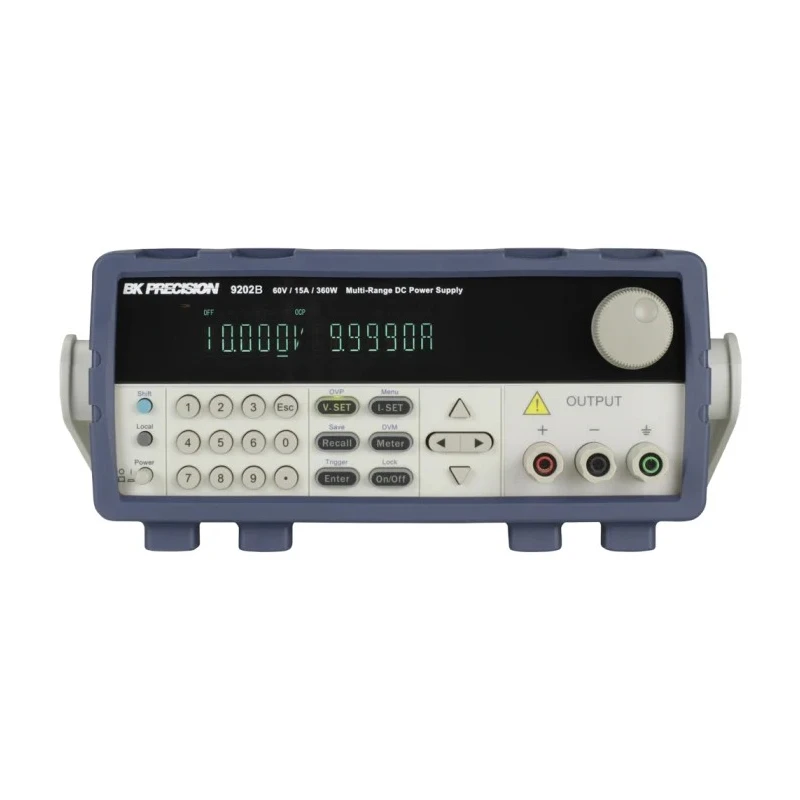

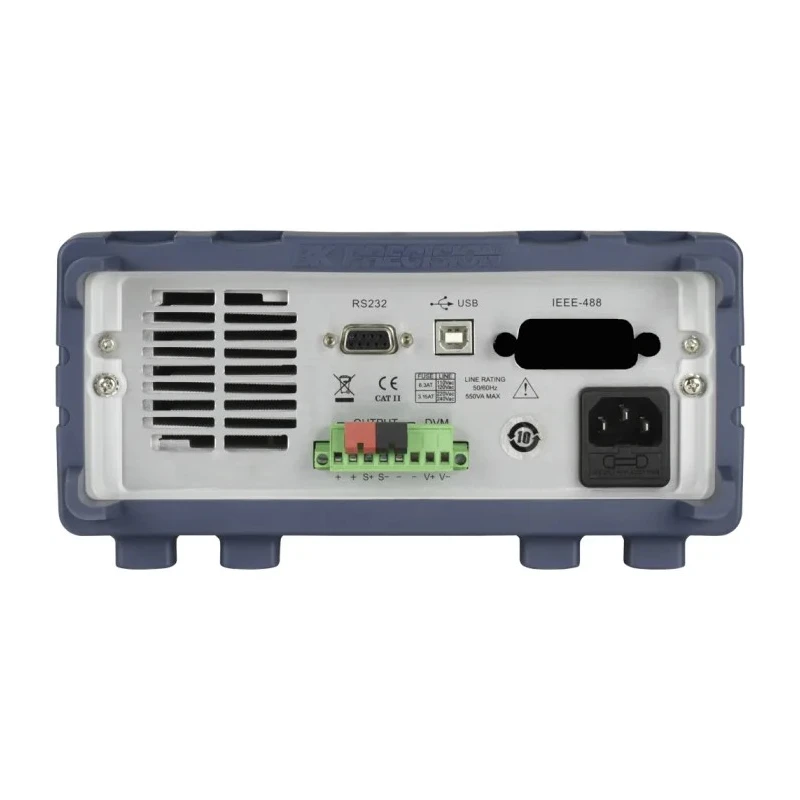

BK Precision Analogue Bench Power Supply 5-Output 0 V to 60 V 360 W 15 A Max BK9202B
Specifications
| Country of Origin | China |
|---|---|
| Brand | BK Precision |
| Power | 360W |
| Height | 88.2mm |
| Model | BK9202B |
| Depth | 354.6mm |
| Width | 214.5mm |
| Output type | Digital |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for |
| Number of outputs | 5 |
| Maximum Output Current | 15A |
| Standards/Approvals | ISO 16750 |
| Maximum Output Voltage | 60V |
| Maximum Supply Voltage | 80V |
| Minimum Supply Voltage | 0V |
| Digital/Analogue | Analogue |
| Minimum Output Current | 0A |
Key Features
- Multi-ranging operation automatically recalculates voltage and current limits for maximum output power.
- High programming and readback resolution of 1 mV and 0.1 mA for precise control.
- Stores and recalls up to 72 instrument settings for enhanced workflow.
- Includes output timer and list mode programming for operational flexibility.
- Equipped with standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands.
- Operates reliably within 0°C to 40°C ambient temperatures.
- Compact size with dimensions 214.5 mm width, 88.2 mm height, and 354.6 mm depth.
- Certified to ISO 16750 standards, ensuring quality and compliance.
Product Description
BK Precision BK9202B analogue bench power supply features five outputs capable of delivering voltages from 0 V to 60 V and a maximum current of 15 A, supporting a total power output of 360 W. Its multi-ranging functionality enables operators to achieve the maximum possible output power in any Volt/Ampere combination within the specified limits, offering versatility unmatched by conventional fixed-output supplies.
The instrument provides high-resolution programming and readback accuracy at 1 mV and 0.1 mA respectively, enabling precise voltage and current control essential for sensitive electrical and electronic testing tasks. Users can store and recall up to 72 different instrument configurations, facilitating quick setup changes for repetitive testing scenarios.
In addition, the BK9202B includes an output timer function and supports list mode programming, allowing automated testing sequences and enhanced operational control. Connectivity is handled through standard USB (USBTMC-compliant) and RS232 interfaces that support SCPI command sets for integration with external control and test automation systems.
Designed to operate within an ambient temperature range of 0°C to 40°C, the bench power supply measures 214.5 mm in width, 88.2 mm in height, and 354.6 mm in depth, fitting comfortably in laboratory and industrial bench setups. The device complies with ISO 16750 standards, ensuring reliability and safety in demanding environments.
This analogue Bench Power Supply is ideal for applications in industrial, laboratory, electrical engineering, and manufacturing sectors requiring multiple output channels with precise voltage and current control. The BK9202B replaces multiple single-output supplies on the bench or within racks, streamlining test setups and enhancing productivity.
Multi-ranging operation for maximum power output across voltage and current ranges. High resolution programming and readback of 1 mV and 0.1 mA. Memory function to store and recall up to 72 settings. Output timer and list mode programming for automated tasks.
USB and RS232 interfaces supporting SCPI commands for remote control. Operating temperature range of 0°C to 40°C. Compact bench-top form factor with ISO 16750 approval. Suitable for industrial, laboratory, and manufacturing applications.
Discover more Bench Power Supplies and Instruments by BK Precision on EnvMart for reliable and precise power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 60 V.
This bench power supply features five outputs.
The maximum output current is 15 A.
It has dimensions of 214.5 mm in width, 88.2 mm in height, and 354.6 mm in depth.
The total power output is rated at 360 W.
It operates reliably within an ambient temperature range of 0°C to 40°C.
It includes standard USB (USBTMC-compliant) and interfaces that support SCPI commands.
Yes, it can store and recall up to 72 different instrument configurations.
It is certified to ISO 16750 standards, ensuring quality and compliance.
It includes an output timer function and supports list mode programming for automated testing sequences.
