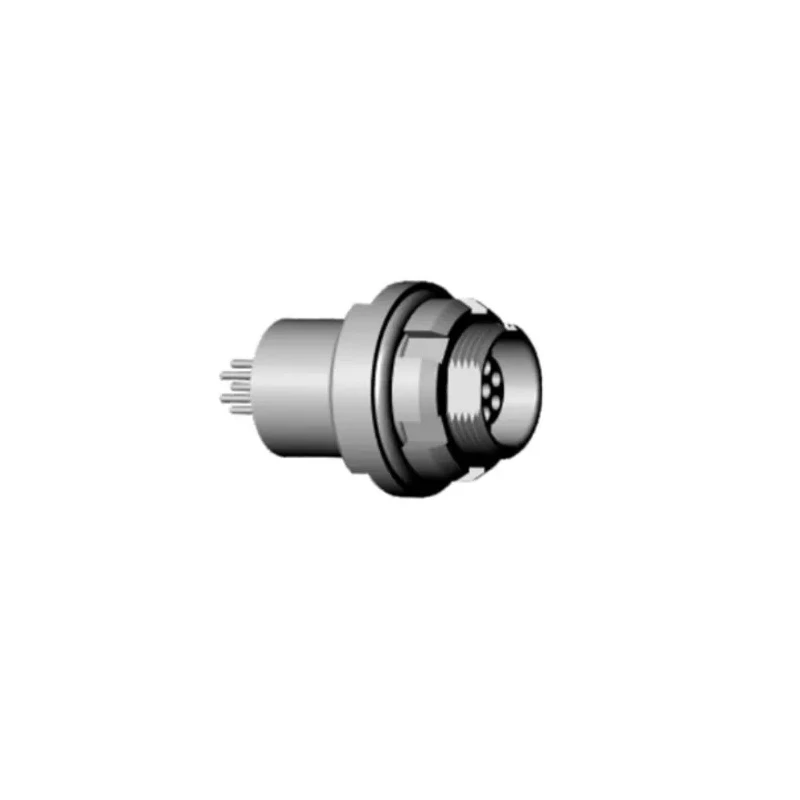

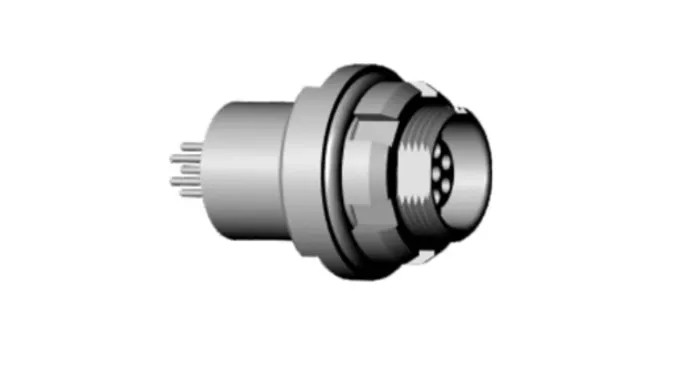

RS PRO Circular Connector Panel Mount M14, 16 Contacts, Socket Female, IP68, Push Pull Latching 240-6426
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1.5A |
| Model | 240-6426 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Chrome Plated Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CE, IEC, RoHS |
| Pole Format | 16 |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Mating Type | Push Pull |
| Connector Size | M14 |
| Plug/Socket | Socket |
Key Features
- This connector features a push pull latching system for quick and secure installation.
- The chrome plated brass housing ensures robust durability and corrosion resistance.
- Contact plating with gold provides excellent conductivity and reliability.
- Operates over a wide temperature range from -55°C to 250°C, suitable for harsh environments.
- Rated for 1.5A current with straight orientation and solder termination.
- Offers 360° EMC shielding to protect signals in demanding applications.
- Meets CE, IEC, and RoHS standards for quality and compliance.
- IP68 waterproof rating makes it ideal for indoor machinery and automation systems.
Product Description
RS PRO 240-6426 Circular Connector is a premium panel mount M14 connector designed for industrial applications requiring a waterproof, secure, and high-performance connection.
This 16 contact socket features female contact gender with gold plating and a chrome plated brass housing, providing excellent electrical conductivity, mechanical strength, and corrosion resistance.
The connector employs a push pull latching mechanism that simplifies installation and ensures strong locking while allowing quick disconnection.
Its IP68 waterproof rating and 360° EMC shielding make it suitable for use in industrial machinery, robotics, sensor integration, factory automation, and testing equipment operating in harsh and indoor environments.
Rated for operation from -55°C up to 250°C and a current capacity of 1.5A, this connector provides reliable performance in temperature extremes and demanding electrical conditions.
This connector includes 16 gold-plated contacts ensuring reliable signal transmission. The housing is made of chrome plated brass providing robustness and durability. Push pull latching system allows quick and secure mating and demating.
IP68 waterproof rating protects against dust and water ingress during operation. Compliance with CE, IEC, and RoHS ensures safety and environmental standards. Ideal for industrial automation, process control, robotics, and medical equipment.
Straight orientation and solder termination fit standard connection requirements.
Overall, the RS PRO 240-6426 circular connector offers a secure, durable, and flexible solution for industrial circular connector needs. Explore other Industrial Circular Connectors on EnvMart for your automation and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO Circular Connector is rated for a current of 1.5A.
This connector has an IP68 waterproof rating, making it suitable for protection against dust and water ingress during operation.
It operates over a wide temperature range from -55°C to 250°C, making it suitable for harsh environments.
The connector features 16 contacts with gold plating for excellent conductivity and reliability.
It uses solder termination, which fits standard connection requirements.
The housing is made of chrome plated brass, providing robustness and corrosion resistance.
This model is designed for panel mount installation.
It employs a push pull latching mechanism that allows for quick and secure mating and demating.
It meets CE, IEC, and RoHS standards for quality and compliance.
The connector size is M14, which is standard for this type of circular connector.
It is suitable for use in industrial machinery, robotics, sensor integration, factory automation, and testing equipment.
This connector features a female contact gender.
