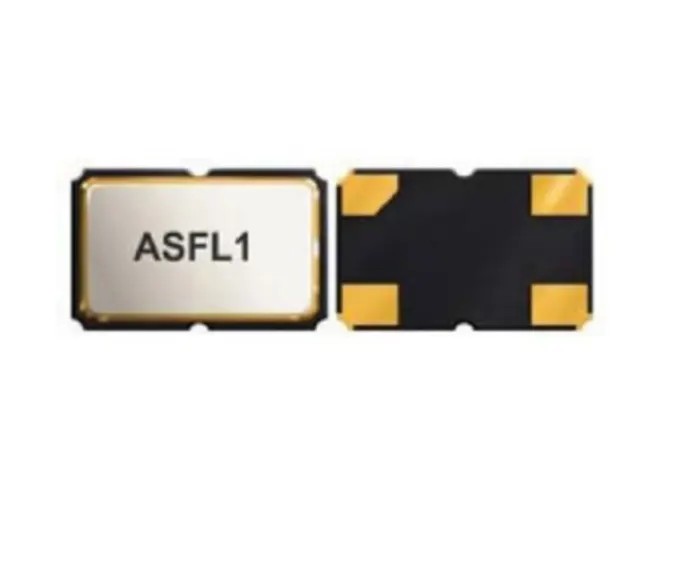

Abracon 48MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-48.000MHZ-EK-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ASFL1-48.000MHZ-EK-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ASFL1 |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 48MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 2.97V |
| Oscillator Type | Clock Oscillator |
| Output Level | HCMOS, TTL |
Key Features
- Operates at a frequency of 48MHz suitable for clock generation applications.
- Utilizes surface mount package with dimensions 5mm length, 3.2mm width, and 1.3mm height.
- Supports supply voltage range from 2.97V minimum to 3.63V maximum.
- Designed to operate within temperature range from -20°C to 70°C.
- Provides high reliability with seam sealed packaging and RoHS compliance.
- Compatible with HCMOS and TTL output levels for versatile electronic interfacing.
- Features a tri-state function, ideal for CCD clock, VTR cameras, wireless communication, PDA, and laptop computers.
- Offered in tape and reel packaging facilitating high-density surface mount technology (SMT) assembly.
Product Description
The Abracon ASFL1-48.000MHZ-EK-T is a 48MHz clock oscillator engineered for surface mount applications, delivering high precision frequency generation utilizing HCMOS and TTL output standards. This crystal oscillator's 4-pin surface mount package measures 5mm in length, 3.2mm in width, and 1.3mm in height, making it suitable for compact PCB layouts in modern electronic devices.
Operating within a supply voltage window of 2.97V to 3.63V, the device reliably functions across an extended temperature range from -20°C to 70°C, ensuring stable performance in diverse environmental conditions. Its seam sealed enclosure guarantees high reliability and longevity.
Your industrial application benefits from the tri-state function support, enabling its use as CCD clock for video tape recorders (VTR), wireless communication modules, personal digital assistants (PDA), laptops, and other electronic equipment requiring precision clock oscillators.
Manufactured to meet RoHS standards, this oscillator is compliant with lead-free reflow soldering processes and suitable for high-density SMT assembly, supplied in tape and reel packaging.
Key features offer tight frequency stability of ±20ppm ensuring timing accuracy critical in communication, computing, and instrumentation industrial segments. Operates at 48MHz frequency with HCMOS and TTL output levels.
Compact 4-pin surface mount package measuring 5mm x 3.2mm x 1.3mm. Supply voltage range supports 2.97V minimum and 3.63V maximum. Wide operating temperature range between -20°C and 70°C. Seam sealed design offers enhanced reliability and performance.
Tri-state function facilitates versatile clocking applications. RoHS compliant and suitable for lead-free SMT processes. Ideal for use in CCD clocks, wireless communication, PDAs, laptops, and VTR systems. Frequency stability within ±20ppm for precision timing.
These characteristics make the ASFL1 series oscillators optimal for industrial, communication, computing, and laboratory applications requiring precise frequency control. Browse more Crystal Oscillators and related components at EnvMart for your electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 48MHz, suitable for clock generation applications.
This oscillator has dimensions of 5mm in length, 3.2mm in width, and 1.3mm in height, making it suitable for compact PCB layouts.
It operates within a supply voltage range of 2.97V minimum to 3.63V maximum.
The operating temperature range for this unit is from -20°C to 70°C.
It supports HCMOS and TTL output levels, allowing for versatile electronic interfacing.
This model is supplied in tape and reel packaging, facilitating high-density surface mount technology assembly.
Yes, it features a tri-state function, making it suitable for various clocking applications.
The oscillator is RoHS compliant, ensuring it meets environmental regulations for lead-free soldering processes.
This oscillator has a pin count of 4, suitable for surface mount applications.
It is ideal for use in CCD clocks, wireless communication modules, PDAs, laptops, and video tape recorders (VTR).
The ASFL1-48.000MHZ-EK-T belongs to the ASFL1 series of oscillators.
The country of origin for this oscillator is India.
