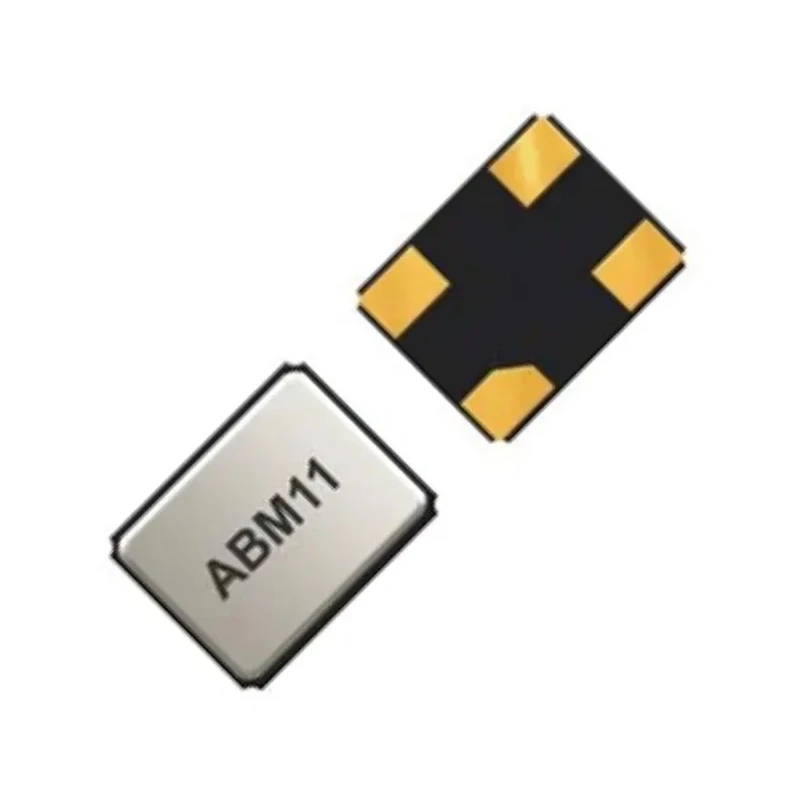

Abracon 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 2 x 1.6 x 0.59 mm ABM11-16.000MHZ-D2X-T3

Abracon ABM11-16.000MHZ-D2X-T3 is a 16 MHz surface mount crystal designed for ultra-miniature ceramic SMD applications. It features a precise frequency tolerance of ±30 ppm and a frequency stability of ±50 ppm, making it suitable for high precision timing requirements in electronics.

The crystal comes in a compact 2.0 x 1.6 x 0.59 mm seam-sealed ceramic package with a metal lid that assures reliability and high precision. It is RoHS compliant and supplied in tape and reel packaging, facilitating efficient use in automated PCB assembly.

This 4-pin crystal offers a load capacitance of 10 pF and a series resistance of 150 Ω, optimized for stable oscillator circuits. It operates reliably across a temperature range of -10°C to 60°C, making it suitable for use in diverse industrial and commercial electronics applications.

The ABM11 series is typically utilized in communication devices such as cellular phones, pagers, and PCMCIA cards where compact size and high frequency stability are critical.

Its ultra-miniature size supports high-density designs, while the ceramic package design provides environmental protection and mechanical robustness. The surface mount form factor allows easy integration on printed circuit boards with standard automated processes.

The crystal features a compact 2.0 x 1.6 x 0.59 mm ceramic SMD ultra-miniature package. It has a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm. Operates within an environmental temperature range from -10°C to 60°C.

Includes a seam-sealed ceramic package with a metal lid for enhanced reliability and precision. Pin count is 4 with a load capacitance of 10 pF, fitting surface mount applications. Series resistance is 150 Ω ensuring stable performance for high frequency circuits.

Packaging is tape and reel to facilitate automated manufacturing processes. Ideal for cellular telephones, pagers, and PCMCIA devices. Explore more products in Electronics Components at EnvMart for reliable electronic parts and precise components.
