| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C22-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 22V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 250Ω |
| Typical Voltage Temperature Coefficient | 16.4mV/K |

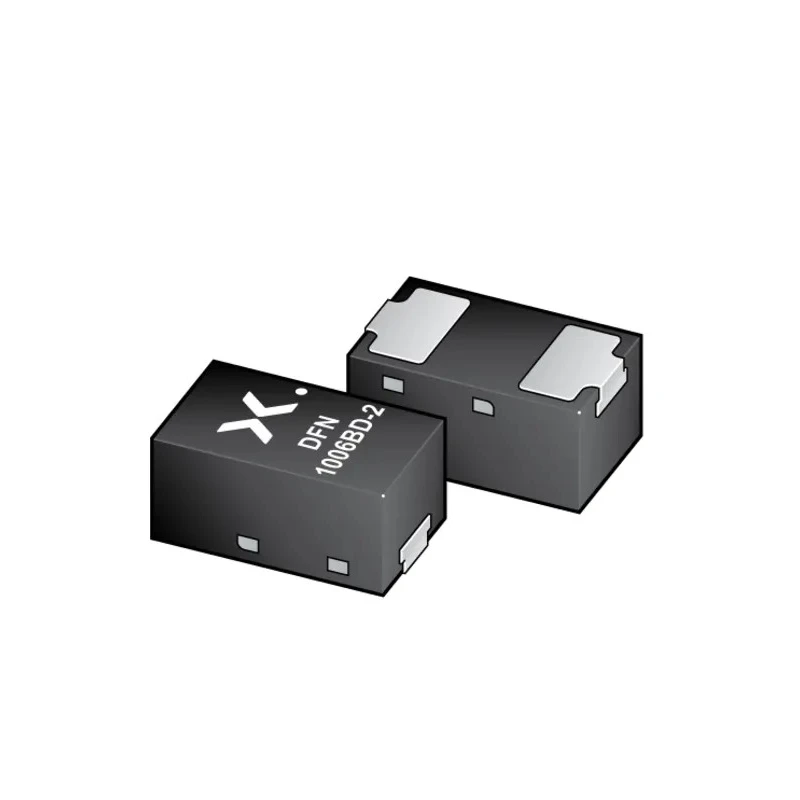

The Nexperia BZX884S-C22-QYL Zener Diode is a general purpose 1 element diode designed for voltage regulation applications and overvoltage protection. It provides a nominal Zener voltage of 22 V with a tight ±2% tolerance ensuring precise voltage clamping behavior. Packaged in the ultra-small DFN1006BD-2 surface mount device with two pins, it is ideal for space-constrained electronic circuits.
This diode can dissipate up to 365 mW of power and can operate continuously across a wide temperature range from -55°C to 150°C, making it suitable for robust industrial and automotive use. It features a maximum reverse leakage current of only 50 nA, which minimizes power loss and leakage-related effects in sensitive circuits.
The diode is qualified to the AEC-Q101 automotive standard, ensuring reliable performance in vehicle electronics and harsh environment conditions. Its low maximum Zener impedance of 250 ohms facilitates stable voltage regulation with minimal ripple or voltage drop. Typical voltage temperature coefficient is 16.4 mV/K, which supports predictable performance over temperature variations.
Applications for the BZX884S-C22-QYL include general semiconductor protection, voltage regulation in power supplies, and use in automotive electronics requiring tightly controlled voltage clamping.
Designed for surface mounting with compact package size. Precise 22 V Zener voltage with ±2% tolerance. Robust power dissipation of 365 mW. Low leakage current suitable for sensitive circuits. Wide operating temperature range from -55°C to 150°C.
Automotive qualification per AEC-Q101 standard. Stable voltage regulation with low Zener impedance. Explore Nexperia components and advanced Zener Diodes within the Electronics & Electricals category on EnvMart for professional semiconductor solutions.
