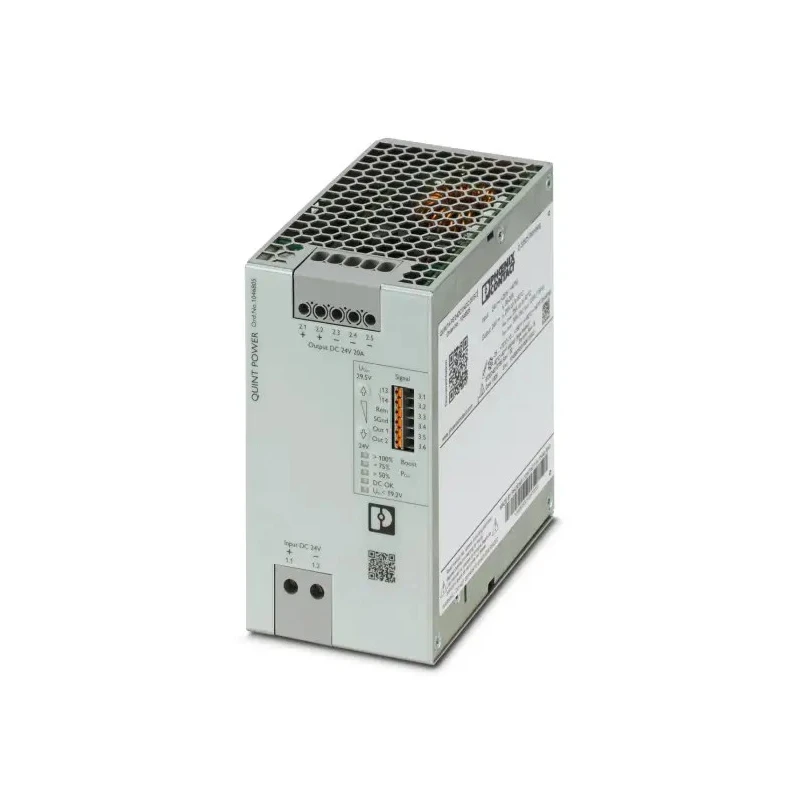

Phoenix Contact QUINT4 DC/DC Converter 24V DC, 20A Output, 24-32V DC Input, DIN Rail Mount, -25°C to 70°C Model QUINT4

The Phoenix Contact QUINT4 DC/DC Converter model QUINT4 delivers reliable power conversion with a fixed 24V DC output at 20A output current, accepting input voltages ranging between 24V and 32V DC. It is engineered for industrial use with a robust DIN rail mounting system facilitating easy incorporation into electrical enclosures and automation systems.

Designed to operate in harsh environments, this converter supports a temperature range from -25°C minimum to a maximum of 70°C, making it suitable for demanding industrial and manufacturing applications. The device features a high isolation voltage rating of 4kV that assures protection between input and output circuits, ensuring both safety and operational stability.

The unit maintains a low ripple and noise level of 50mV peak-to-peak, critical for sensitive electronic devices and control systems. Screw connection terminals with 18 mm stripping length allow secure and straightforward wiring. With an MTBF of over 1 million hours, the QUINT4 is built for continuous, heavy-duty operation.

This converter meets multiple international electromagnetic compatibility standards, including EN 61000-6-5, IEC 61850-3, and others, providing confidence in its performance in complex industrial electrical environments. Its compact size (130mm x 70mm x 125mm) and moderate weight of 1.2 kg make it space-efficient and easy to handle.

Provides a stable 24V DC output with 20A current capacity. Wide input voltage range from 24V to 32V DC ensures versatility. Compact DIN rail mounting simplifies installation in control panels. High isolation voltage of 4kV for safety and reliability.

Low ripple and noise of 50mV peak-to-peak enhances sensitive electronic applications. Robust construction suitable for industrial environments with operating temperatures from -25°C to 70°C. Equipped with screw connection terminals and 18 mm stripping length.

Mean Time Between Failures (MTBF) rated at 1,034,000 hours ensuring longevity. Compliant with EN 61000 series and IEC standards for electromagnetic compatibility. Compact dimensions measuring 130mm length, 70mm width, and 125mm depth.

This DC/DC power converter is ideal for applications in manufacturing automation, industrial controls, building management systems, and other environments requiring reliable power conversion with robust safety and compliance certifications.
