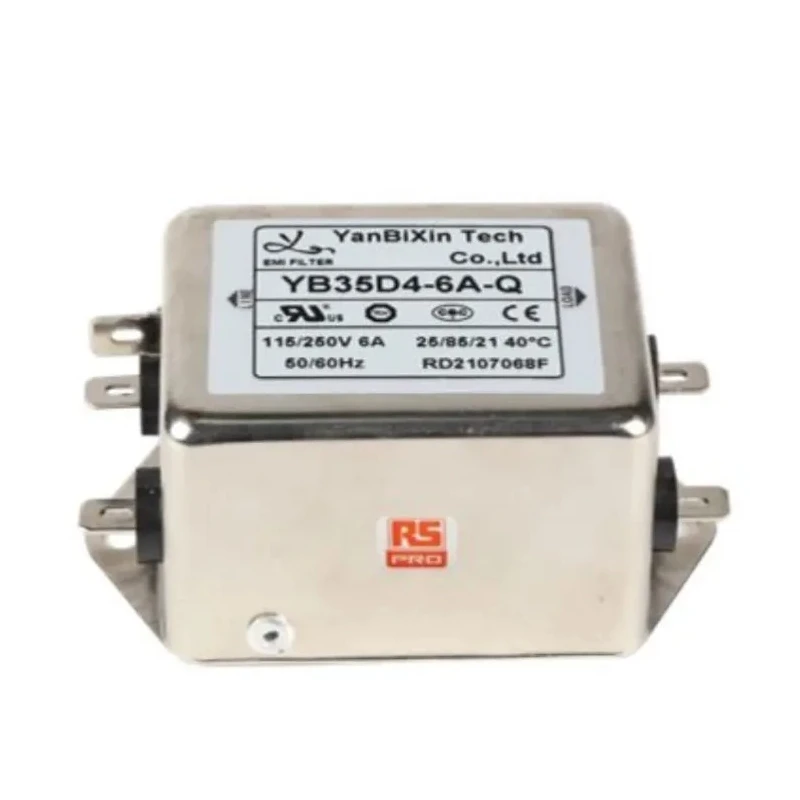

RS PRO 6 A 250V AC 50Hz 60 Hz Chassis Mount Power Line Filter Fast-On 1 Phase 237-8725
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 38mm |
| Length | 85mm |
| Model | 237-8725 |
| Depth | 51mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 2 |
| Resistance | 680kΩ |
| Capacitance | 0.47μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 2.4mA |
| Maximum Voltage | 250V ac |
| Inductance | 5.6mH |
| Standards/Approvals | UL1283 |
| Termination Style | Fast-On |
Key Features
- Designed to reduce conducted radio frequency interference for reliable equipment performance.
- Operates at 50Hz and 60Hz frequencies with 2 stages for enhanced filtering.
- Compact dimensions of 85mm length, 51mm depth, and 38mm height for easy installation.
- Features fast-on termination style and supports single-phase connections.
- Capacitance of 0.47μF and inductance of 5.6mH for effective noise suppression.
- Leakage current limited to 2.4mA to ensure safety and compliance.
- Operating temperature range from -25°C up to 85°C for versatile environmental use.
- Complies with UL1283 safety standard ensuring high quality and reliability.
Product Description
RS PRO 237-8725 is a high-quality Power Line Filter designed for chassis mount installations, rated for 6 A maximum current and 250V AC voltage at 50Hz and 60Hz operating frequencies. It is engineered to prevent external radio frequencies from affecting sensitive electrical equipment, thereby extending the lifespan and reliability of your devices.
This compact filter features a fast-on termination style for quick and secure connections and supports single-phase applications with 2 filtering stages. The capacitance of 0.47μF combined with 5.6mH inductance effectively reduces electromagnetic interference and transient voltage spikes caused by power outages, short circuits, or lightning strikes.
With dimensions of 85mm length, 51mm depth, and 38mm height, the RS PRO filter is suitable for small and medium-sized machines and household electrical equipment.
The leakage current is limited to 2.4mA, complying with safety and performance standards including UL1283. This device ensures consistent operation even under demanding environmental conditions, withstanding temperatures from -25°C to 85°C.
Manufactured in China, this RS PRO Power Line Filter is ideal for industrial, commercial, medical, and household uses where RFI suppression and surge protection are critical. Designed to reduce conducted radio frequency interference for reliable equipment performance.
Operates at 50Hz and 60Hz frequencies with 2 stages for enhanced filtering. Compact dimensions of 85mm length, 51mm depth, and 38mm height for easy installation. Features fast-on termination style and supports single-phase connections.
Capacitance of 0.47μF and inductance of 5.6mH for effective noise suppression. Leakage current limited to 2.4mA to ensure safety and compliance. Operating temperature range from -25°C up to 85°C for versatile environmental use.
Complies with UL1283 safety standard ensuring high quality and reliability. Explore more high-quality RS PRO filters and power line components at EnvMart to ensure optimal electrical performance and protection in your projects.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this power line filter is 6 A.
This model operates at a maximum voltage of 250V AC.
It supports operating frequencies of 50Hz and 60Hz.
The dimensions are 85mm in length, 51mm in depth, and 38mm in height.
This filter is designed for chassis mount installations.
The capacitance is 0.47μF and the inductance is 5.6mH.
The leakage current is limited to 2.4mA.
The operating temperature range is from -25°C to 85°C.
This model features 2 stages of filtering for enhanced performance.
It complies with the UL1283 safety standard.
This filter features a fast-on termination style for quick connections.
