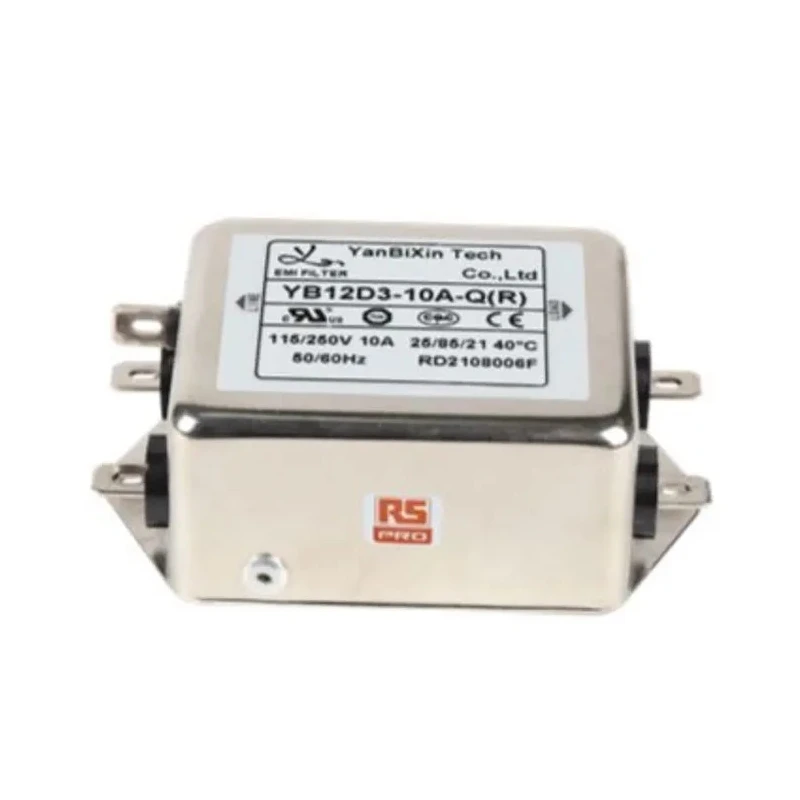

RS PRO 10A 250V AC 50Hz 60Hz Chassis Mount EMI Filter Fast-On Termination 237-8681

The RS PRO 237-8681 EMI filter is a high-quality, chassis mount power line filter rated at 10A and 250V AC, designed for single-phase electrical systems operating at 50Hz and 60Hz. Equipped with fast-on terminals, this filter efficiently suppresses electromagnetic interference and prevents external radio frequencies from impacting the performance of electrical and electronic equipment.

With a compact size of 85mm length, 51mm depth, and 29mm height, the RS PRO EMI filter can be easily installed in industrial and commercial electrical assemblies. Featuring a capacitance of 0.1μF and inductance of 2mH, it provides robust noise filtering suited for sensitive medical devices, high power office automation equipment, and data communication electronics.

The device limits leakage current to 800μA and has a low resistance of 2.2mΩ, ensuring minimal power loss while maintaining high filtering efficiency. Its operating temperature range from -25°C to 85°C makes it suitable for use under a variety of environmental conditions, guaranteeing durable and reliable service life.

Certified to UL1283 standards, this filter meets stringent electromagnetic compatibility requirements, offering safety and performance compliance. The fast-on termination style allows for quick and robust connections during installation and maintenance.

This EMI filter is ideal for industrial, laboratory, HVAC, manufacturing, and commercial applications requiring superior EMI suppression to protect sensitive devices from RFI damage and transient voltage spikes resulting from power outages and surges.

This EMI filter reduces radio frequency interference in electrical devices and ensures reliable operation. It is designed for one-phase electrical systems with a capacitance rating of 0.1μF. The component supports a maximum operating temperature of 85°C, suitable for various industrial environments.

The filter features compact dimensions of 85mm length, 51mm depth, and 29mm height for easy chassis mounting. Leakage current is limited to 800μA, and the filter has an inductance of 2mH to provide effective noise suppression.

The termination style is fast-on for quick and secure electrical connections. Constructed to UL1283 standards, ensuring compliance and safety in electromagnetic compatibility. It offers resistance of 2.2mΩ, making it reliable for sensitive electronics and power line applications.

Operating temperature range is from -25°C minimum to 85°C maximum, supporting varied climates and installations. Explore related EMI filters and power line protection components in the Electronics Components category at EnvMart for reliable industrial-grade solutions.
