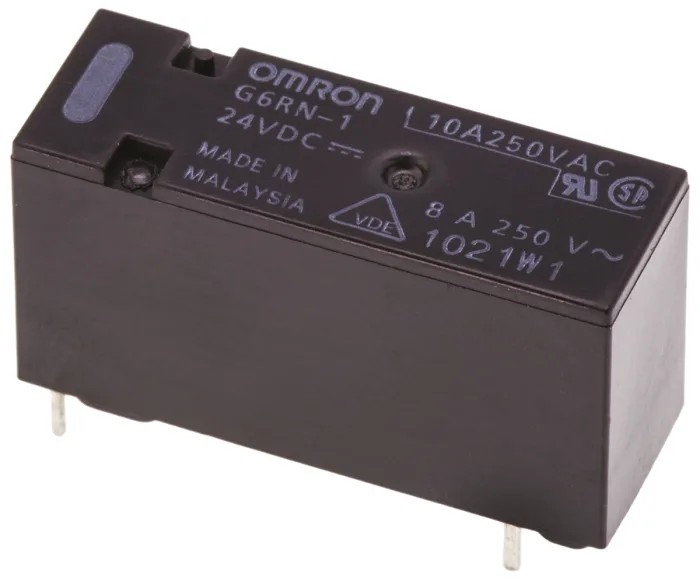

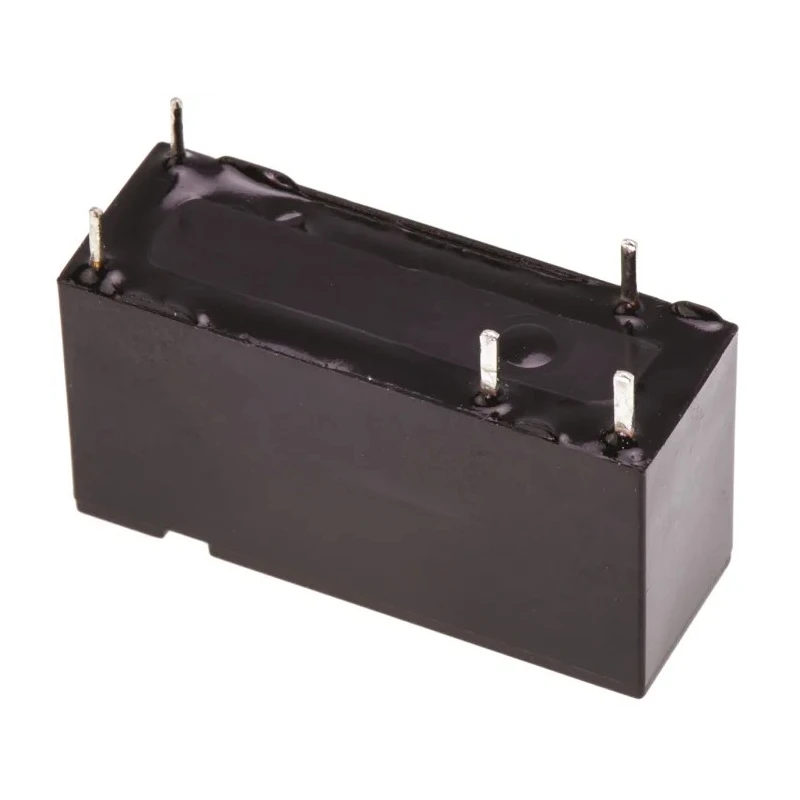

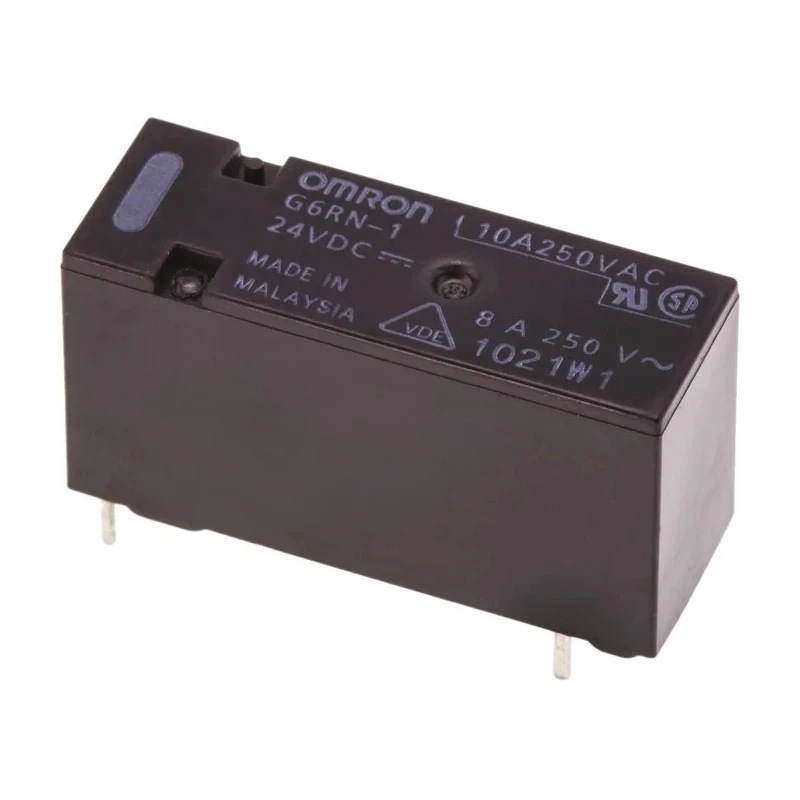

Omron Through Hole Power Relay 24V dc Coil, 8A Switching Current, SPDT G6RN-1 DC24
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 28.5mm |
| Model | G6RN-1 DC24 |
| Mount Type | Through Hole |
| Contact Material | Silver Alloy Gold Plated |
| Series | G6RN |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA (File No. 31928), EN/TÜV Certified (Certificate No. 6135), RoHS, UL (File No. E41515), VDE Standards |
| Coil Resistance | 2.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| OMRON G6R-1 PCB RLY 24VDCBrand | NEUTRAL |
| TE Connectivity PCB Mount Non-Latching Relay, 24V dc Coil, SPDTBrand | TE Connectivity |
Key Features
- Features a through hole mount suitable for PCB pin terminals.
- Operates reliably between -40°C and 85°C ambient temperatures.
- Coil resistance of 2.6 kΩ with coil power consumption of 0.22 W.
- Switching voltage ratings include up to 250V ac and 30V dc.
- Made with silver alloy gold plated contact material to ensure low contact resistance and durability.
- Designed to meet international standards including CSA, EN/TÜV, RoHS, UL, and VDE certifications.

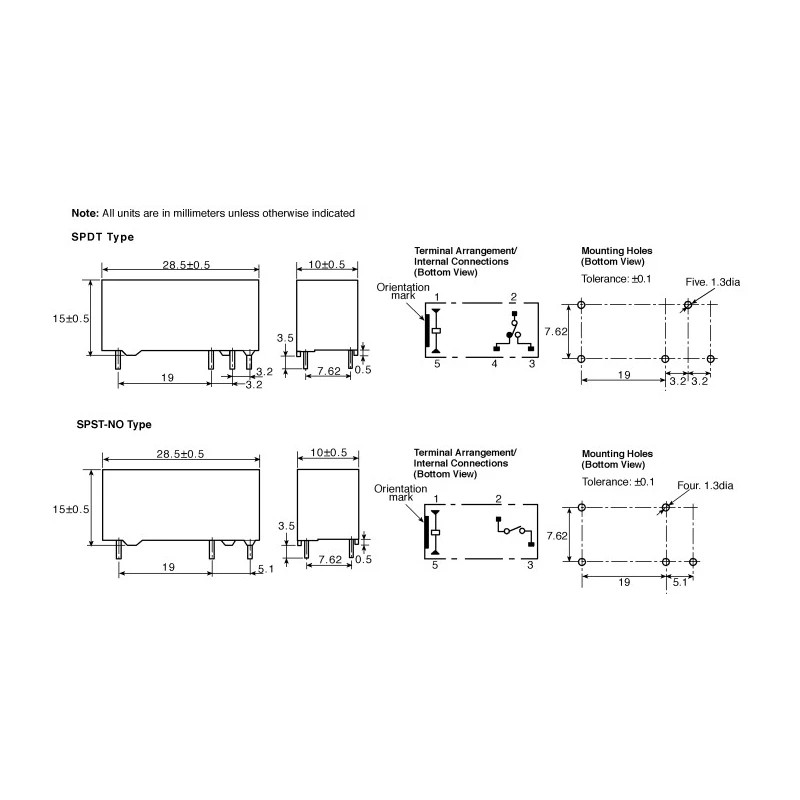

- Compact dimensions with a height of 15 mm and length of 28.5 mm.
- Suitable for industrial automation, control panels, HVAC systems, and signal conditioning applications.
Product Description
Omron G6RN-1 DC24 is a non-latching through hole Power Relay offering a 24V dc coil voltage and 8A switching current in a SPDT (Single Pole Double Throw) contact configuration. It is designed for reliable PCB mounting with robust through hole terminals.
This relay features silver alloy gold plated contacts providing low contact resistance of 100 milliohms for enhanced performance and durability. It operates within a wide temperature range from -40°C to 85°C, supporting demanding industrial environments.
Coil resistance is rated at 2.6 kΩ and coil power consumption is minimal at 0.22 watts. The relay supports switching voltages of up to 30V dc and 250V ac, making it suitable for various power control and signal conditioning needs.
Measuring just 15 mm in height and 28.5 mm in length, this compact relay meets multiple international safety and quality standards including CSA, EN/TÜV, RoHS, UL, and VDE. Its through hole mount and PCB pin terminals ensure secure and stable installation in electronic assemblies.
Applications include industrial automation, HVAC control, manufacturing systems, instrumentation, and other electrical power switching circuits requiring high reliability and performance.
Features a through hole mount suitable for PCB pin terminals. Operates reliably between -40°C and 85°C ambient temperatures. Coil resistance of 2.6 kΩ with coil power consumption of 0.22 W. Switching voltage ratings include up to 250V ac and 30V dc.
Made with silver alloy gold plated contact material to ensure low contact resistance and durability. Designed to meet international standards including CSA, EN/TÜV, RoHS, UL, and VDE certifications. Compact dimensions with a height of 15 mm and length of 28.5 mm.
Suitable for industrial automation, control panels, HVAC systems, and signal conditioning applications. Browse our wide selection of Omron relays and electrical components at EnvMart for your industrial and electronic project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 8A.
This model operates with a coil voltage of 24V dc.
The relay measures 15 mm in height and 28.5 mm in length.
It features a Single Pole Double Throw (SPDT) contact configuration.
The maximum operating temperature is 85°C.
This relay uses a through hole mount suitable for PCB pin terminals.
The contact resistance is rated at 100 milliohms.
It supports switching voltages of up to 250V ac and 30V dc.
It is designed to meet several international standards including CSA, EN/TÜV, RoHS, UL, and VDE certifications.
The coil resistance is rated at 2.6 kΩ.
It is suitable for applications in industrial automation, control panels, HVAC systems, and signal conditioning.
The coil power consumption is minimal at 0.22 watts.
