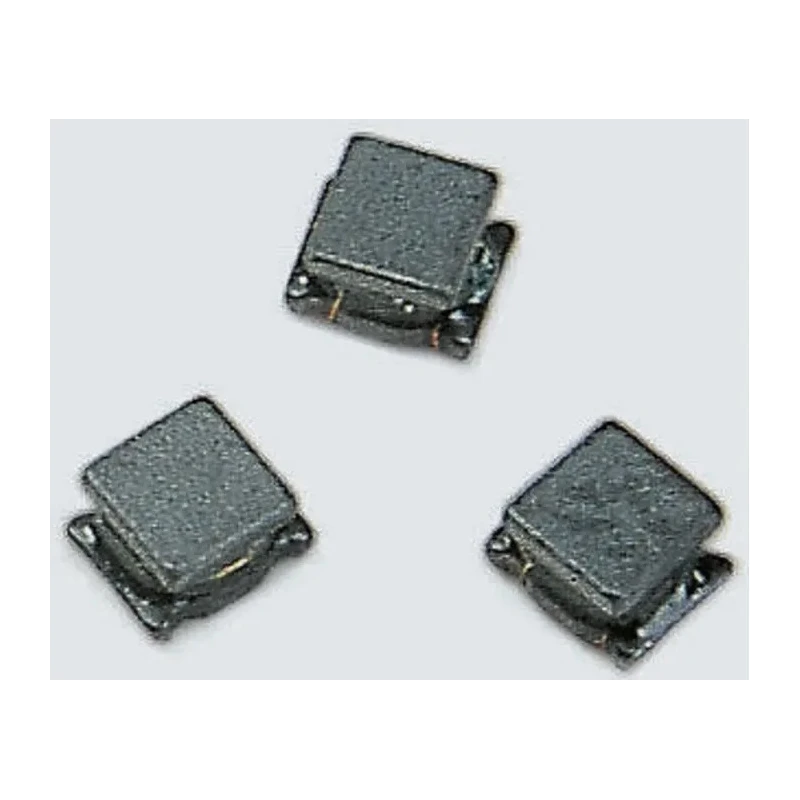

Murata Wirewound Surface Mount Inductor 1812 Package 180 μH ±5% 120 mA DC Current Ferrite Core LQH43MN181J03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43MN181J03L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 180μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 120mA |
| Pin Count | 2 |
| Maximum DC Resistance | 4.5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 5MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core to enhance magnetic properties.
- Surface mount design compatible with standard SMT assembly processes.
- Maximum DC resistance of 4.5 ohms ensuring low power loss.
- Operating temperature range from -40°C to 85°C suitable for various environments.
- Uses solder termination style for reliable PCB connection.
- Embossed tape packaging ideal for automated placement.
- High quality factor of minimum 40 for stable performance at high frequencies.
- Maximum self resonant frequency of 5 MHz allowing use in high-frequency circuits.
Product Description
Murata LQH43MN181J03L is a premium wirewound surface mount inductor designed with a ferrite core and housed in an 1812 package size. It offers a precise inductance of 180 μH with a tolerance of ±5% and supports a maximum DC current of 120 mA, making it suitable for electronic circuits requiring high inductance and current handling capabilities.

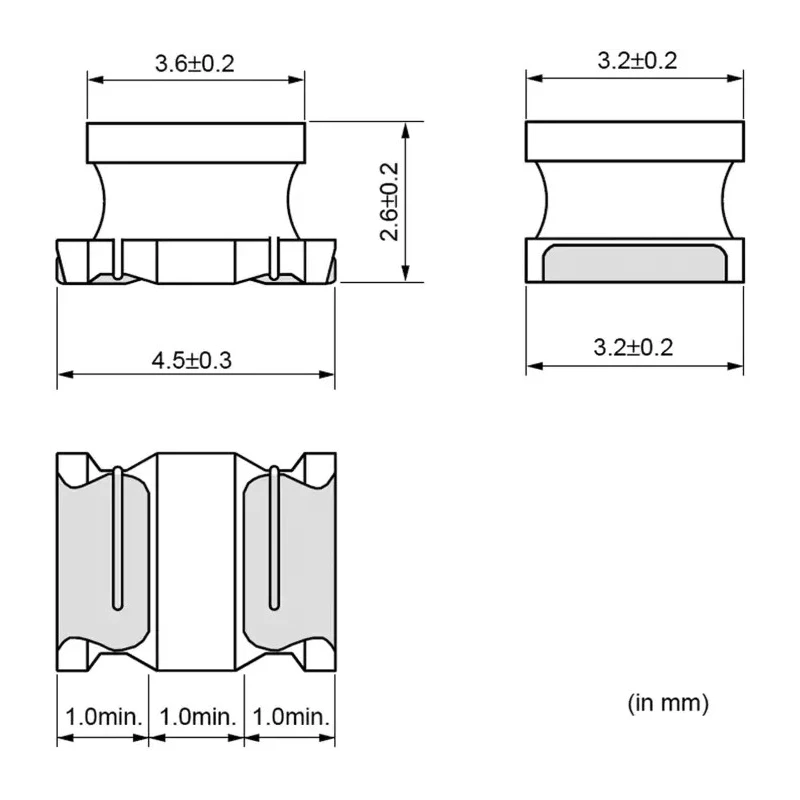

This inductor features a solder termination style compatible with standard surface mount technology (SMT), enabling efficient PCB assembly processes. Its compact 1812 case measures 4.5 mm in length, 3.2 mm in depth, and 2.6 mm in height, fitting standard SMT footprints.
Engineered for reliability, it offers a maximum DC resistance of 4.5 ohms, providing low power dissipation. The device operates within a wide temperature range of -40°C to 85°C, suitable for industrial, commercial, and consumer electronics applications.
The product complies with RoHS directives, ensuring environmentally friendly manufacturing standards. Its high-quality factor of minimum 40 allows excellent performance in high-frequency applications up to a maximum self resonant frequency of 5 MHz.
Packaged on embossed tape, the component supports automated pick-and-place processes, enhancing manufacturing efficiency. Manufactured in Japan, this inductor stands out for its durability and consistent quality.
Wirewound Surface Mount Inductor with ferrite core and 1812 package size. Inductance of 180 μH with ±5% tolerance and max DC current 120 mA. Low DC resistance of 4.5 Ω and high Q factor (min. 40) for efficient power handling.
RoHS compliant and operates from -40°C to 85°C ambient temperature. Suitable for industrial, electronic component manufacturing, and power circuits.
This Murata LQH43MN181J03L inductor is ideal for use in electronic equipment requiring stable inductance, such as power supplies, filters, and RF circuits. Explore the Electronics Components category on EnvMart for a wide range of inductors and other passive components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 180 μH with a tolerance of ±5%.
It supports a maximum DC current of 120 mA.
The maximum DC resistance is 4.5 ohms, ensuring low power loss.
The operating temperature range is from -40°C to 85°C, making it suitable for various environments.
The maximum self-resonant frequency is 5 MHz, allowing use in high-frequency circuits.
It has dimensions of 4.5 mm in length, 3.2 mm in depth, and 2.6 mm in height.
It uses a solder termination style, compatible with standard surface mount technology (SMT).
It is packaged on embossed tape, which is ideal for automated pick-and-place processes.
It has a minimum quality factor of 40, providing stable performance at high frequencies.
Yes, this inductor complies with RoHS directives, ensuring environmentally friendly manufacturing standards.
This model is manufactured in Japan.
It is suitable for use in electronic equipment requiring stable inductance, such as power supplies, filters, and RF circuits.
