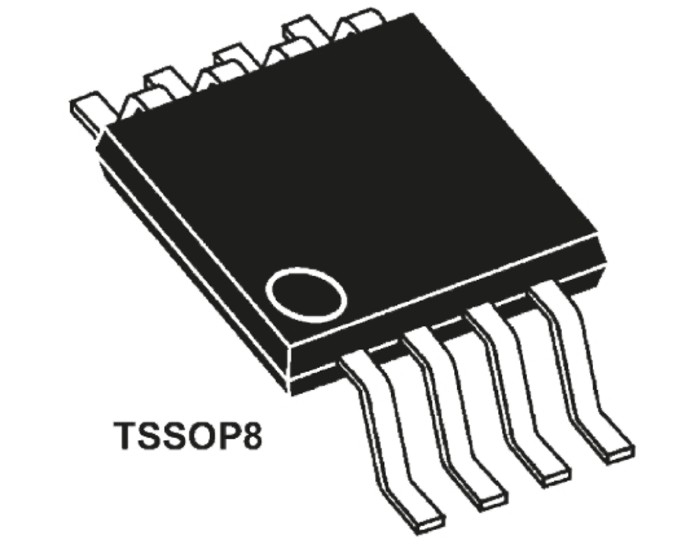

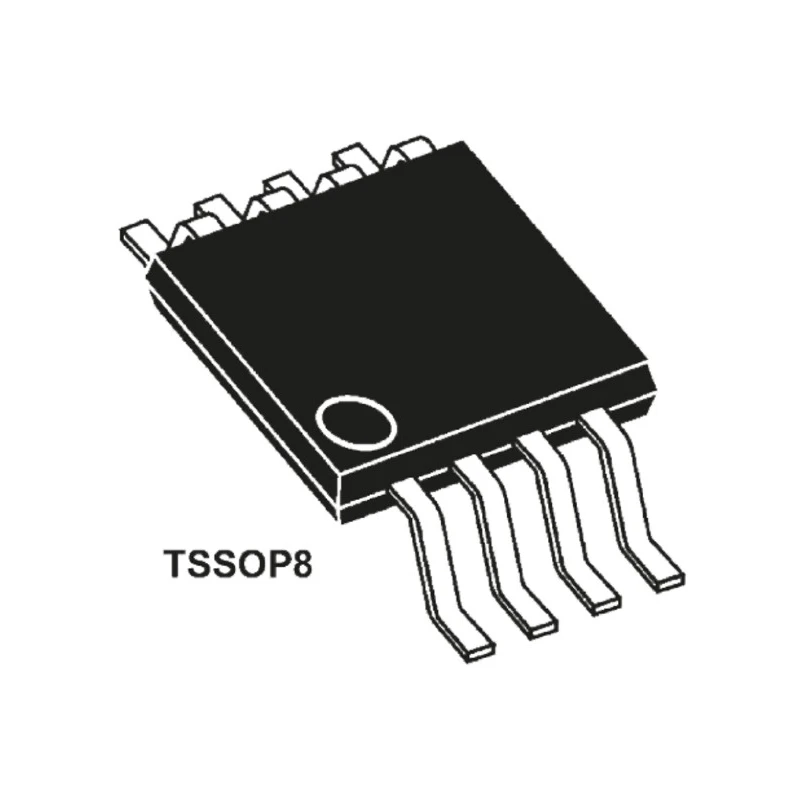

onsemi Logic Level Translator Uni-Directional ECL Family TTL, ECL Output, 8-Pin TSSOP MC100EPT22DTG

onsemi MC100EPT22DTG is a Uni-Directional Logic Level Translator from the ECL family that enables seamless interfacing between LVTTL input logic signals and LVPECL, LVCMOS output standards. Its compact 8-Pin TSSOP surface mount package provides a practical solution for space-constrained electronic circuits requiring voltage translation between different transistor-transistor logic levels.

This device features a maximum propagation delay time of 2ns at CL conditions, ensuring rapid signal transfer ideal for high-speed digital communication and control systems. It supports output types TTL and ECL with a maximum low-level output current of 50mA and maximum high-level output current of -50mA, providing robust performance across various electronic applications.

Operating voltage range spans from a minimum of 3V up to 3.6V, making it compatible with multiple power supply levels found in contemporary industrial and laboratory circuits. The MC100EPT22DTG has a broad operating temperature range from -40°C to 85°C, allowing reliable use in diverse environments, from manufacturing to laboratory testing.

With 2 elements integrated per chip, it accommodates multiple logic translations within a single package, optimizing PCB design complexity and component count. Designed for surface mount installation, it supports efficient automated assembly processes common in industrial manufacturing.

Uni-directional level translation suitable for LVTTL to LVPECL, LVCMOS interfaces. Compact 8-Pin TSSOP surface mount package for board space optimization. Maximum propagation delay time of 2ns supports high-speed logic operations.

Wide temperature range of -40°C to 85°C ensures ruggedness for industrial use. Power supply voltage range of 3V to 3.6V for versatile circuit compatibility. Includes two elements per chip for efficient logic functions. Output types TTL and ECL with robust output current specifications.

This logic level translator is well-suited for industrial electronics, laboratory instrumentation, communication equipment, and manufacturing systems requiring precise and reliable voltage level interfacing. The device is compliant with standard surface mount packaging and is available for integration into volume production lines.
