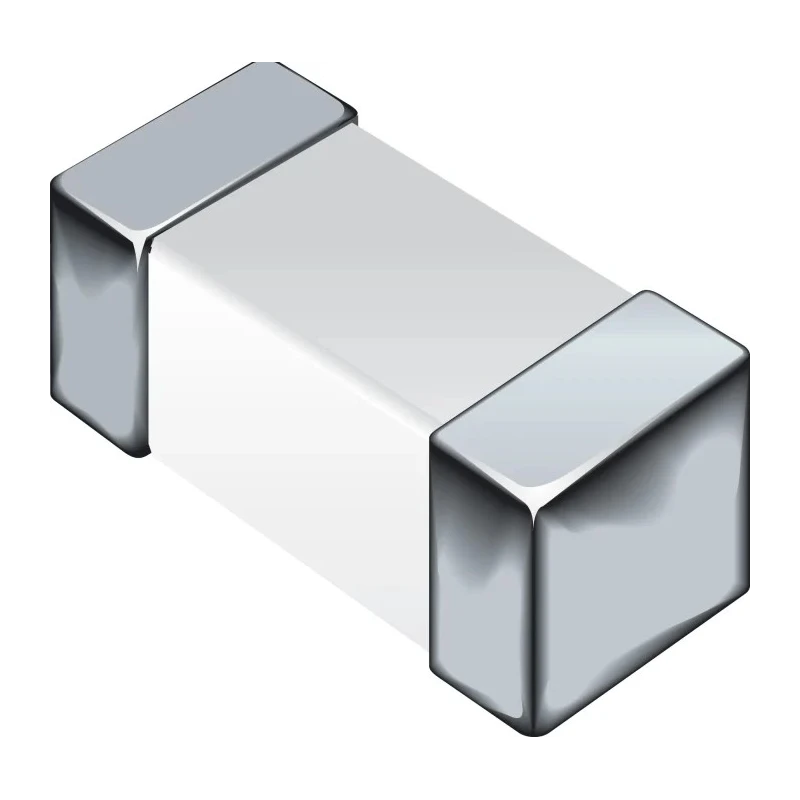

Bourns Multilayer Surface Mount Inductor 100 nH Ceramic Core 5% Tolerance 300mA Current CI160808
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | CI160808 |
| Depth | 3.2mm |
| Series | CI160808 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 100nH |
| Standards/Approvals | RoHS Directive 2015, 863 |
| Package/Case | Surface Mount |
| Maximum DC Current | 300mA |
| Maximum DC Resistance | 0.05Ω |
| Inductance Tolerance | 5 % |
| Termination Style | Silver/Nickel/Tin |
| Maximum Self Resonant Frequency | 500MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Multilayer Ceramic Chip Inductor |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed for surface mount PCBs to enable compact inductor applications.
- Supports a maximum DC current of 300 mA suitable for low power circuits.
- Features a maximum DC resistance of 0.05 ohms ensuring efficient current flow.
- Operates reliably in temperatures ranging from -55°C to 105°C for diverse environments.
- Complies with automotive standard AEC-Q200 for automotive-grade reliability.
- Constructed with a multilayer ceramic chip design for high quality factor minimum of 10.
- Termination style uses silver, nickel, and tin materials for strong solderability.
- Compact physical dimensions of 4.5mm length, 3.2mm height, and 3.2mm depth support space-saving layouts.
Product Description
Bourns CI160808 is a multilayer surface mount inductor featuring a ceramic core and a nominal inductance of 100 nH. Designed with a tolerance of 5%, this component performs efficiently in electronic circuits requiring high precision inductors. It supports a maximum DC current of 300 mA and offers a low maximum DC resistance of 0.05 ohms, ensuring minimal energy loss.
This inductor operates reliably within a temperature range from -55°C to 105°C, making it suitable for automotive and industrial applications. It complies with the AEC-Q200 automotive standard, underpinning its robustness for automotive electronics.
The multilayer ceramic chip construction delivers a high quality factor minimum of 10 and a self-resonant frequency up to 500 MHz, providing enhanced performance in high-frequency circuit designs. The termination style combines silver, nickel, and tin plating, enhancing solderability and connection reliability on printed circuit boards.
Physically compact with dimensions of 4.5mm length, 3.2mm height, and 3.2mm depth, this surface mount inductor supports miniaturized circuit board layouts. The ceramic core material ensures stable inductance characteristics and thermal stability.
Ideal for use in various industrial, automotive, telecommunications, and consumer electronics applications where surface mounted inductors are required for signal filtering, energy storage, and noise suppression.
Designed for surface mount PCBs to enable compact inductor applications. Supports a maximum DC current of 300 mA suitable for low power circuits. Features a maximum DC resistance of 0.05 ohms ensuring efficient current flow.
Operates reliably in temperatures ranging from -55°C to 105°C for diverse environments. Complies with automotive standard AEC-Q200 for automotive-grade reliability. Constructed with a multilayer ceramic chip design for high quality factor minimum of 10.
Termination style uses silver, nickel, and tin materials for strong solderability. Compact physical dimensions of 4.5mm length, 3.2mm height, and 3.2mm depth support space-saving layouts. Explore the range of Surface Mount Inductors at EnvMart for your electronic component needs and enhance your circuit designs with reliable Bourns components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100 nH with a tolerance of 5%.
It supports a maximum DC current of 300 mA, making it suitable for low power circuits.
The maximum DC resistance is 0.05 ohms, ensuring efficient current flow.
This inductor operates reliably within a temperature range of -55°C to 105°C.
It complies with the AEC-Q200 automotive standard, ensuring automotive-grade reliability.
It features a multilayer ceramic chip construction, which contributes to its high quality factor.
The dimensions are 4.5 mm in length, 3.2 mm in height, and 3.2 mm in depth.
The maximum self-resonant frequency is up to 500 MHz, suitable for high-frequency circuit designs.
The termination style uses silver, nickel, and tin materials, enhancing solderability.
It is suitable for various applications in automotive, telecommunications, and consumer electronics for signal filtering and noise suppression.
The minimum quality factor is 10, indicating its efficiency in performance.
It complies with the RoHS Directive 2015, ensuring it meets environmental standards.
