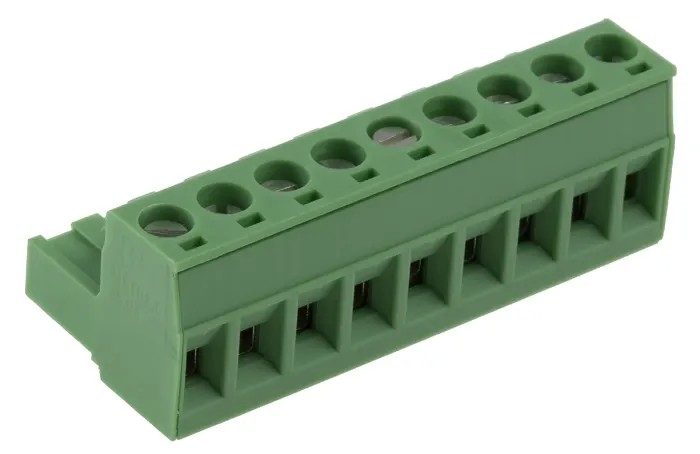

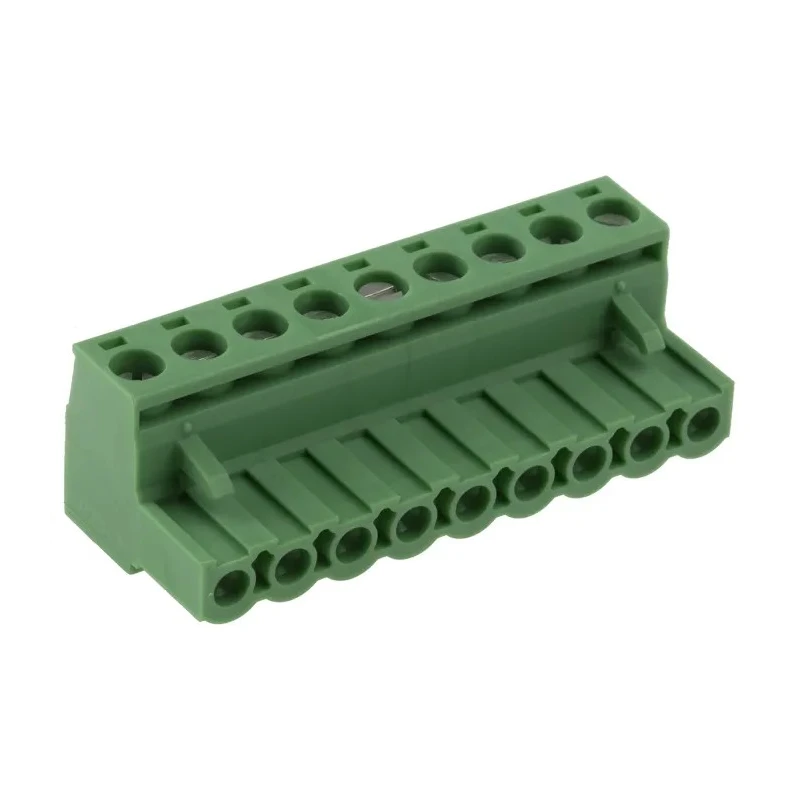

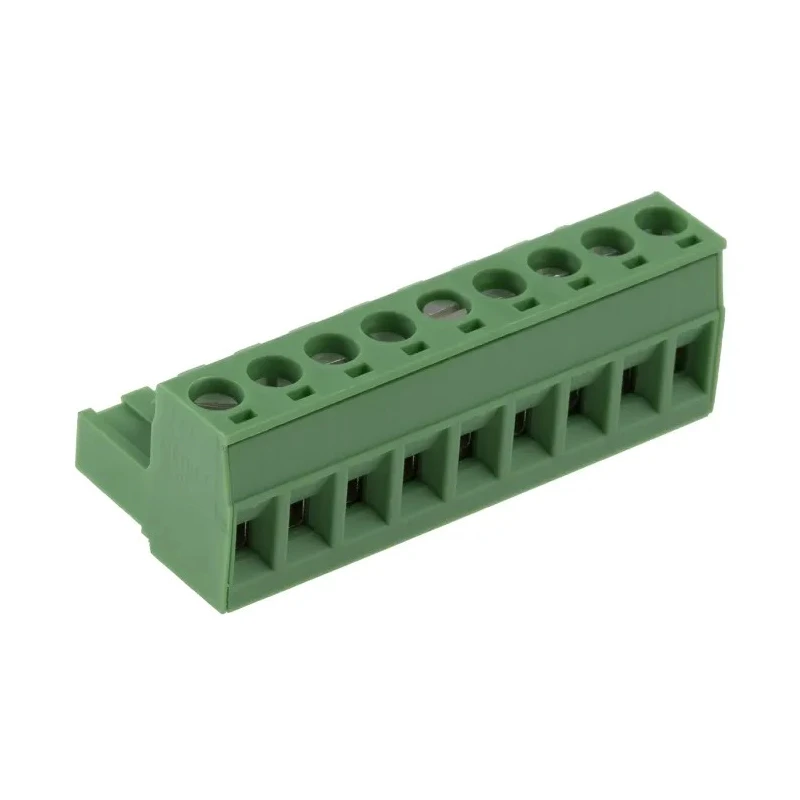

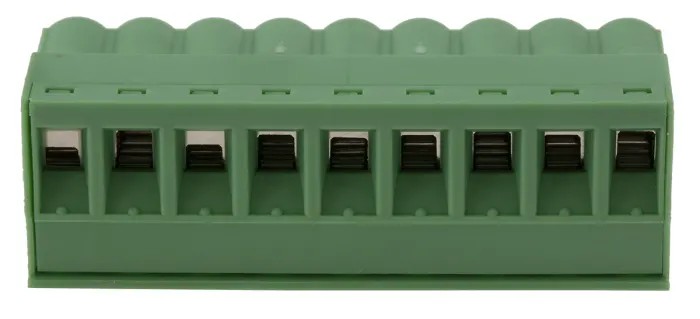

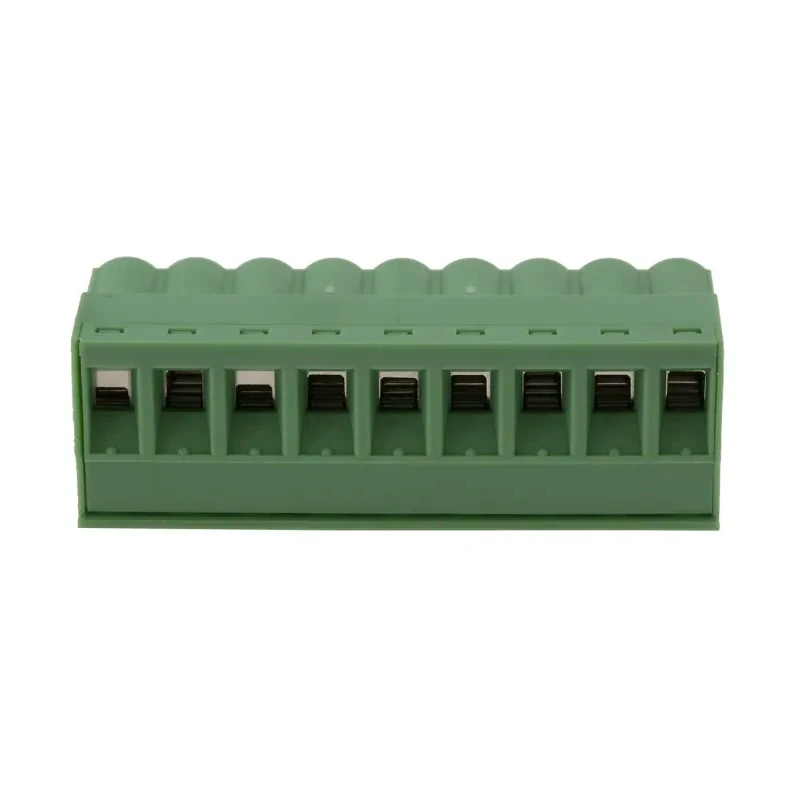

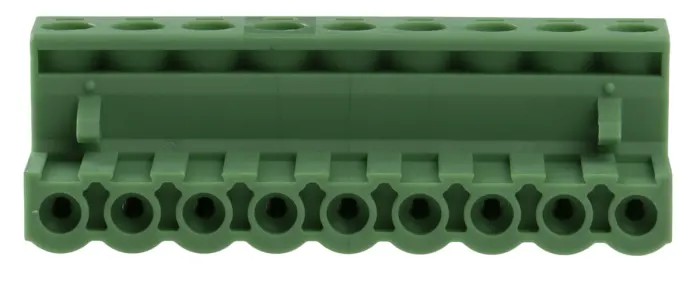

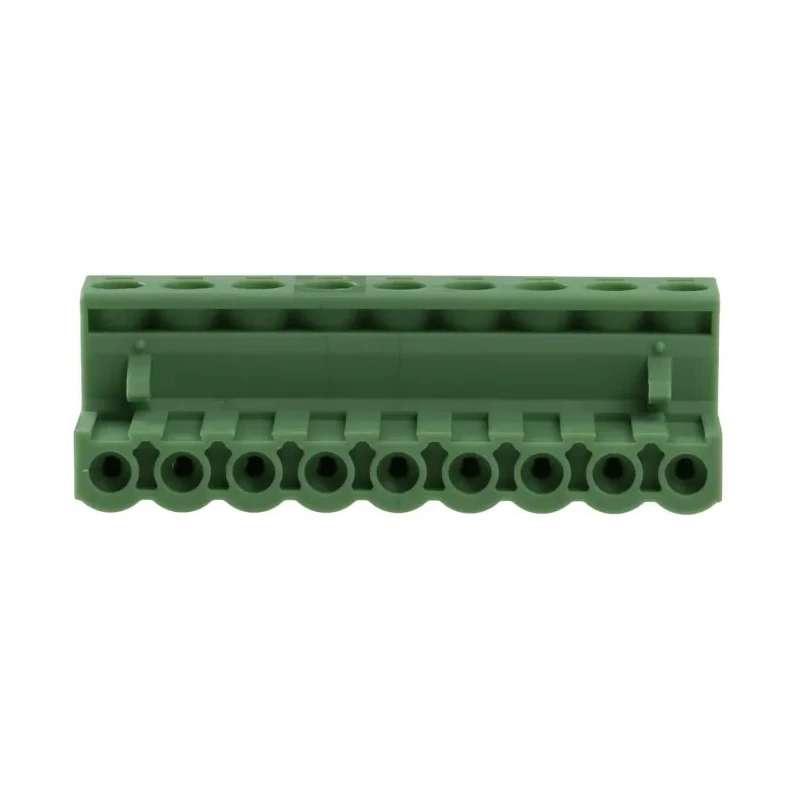

Phoenix Contact MSTB 2.5/9-ST-5.08 Series Pluggable Terminal Block, 9-Contact, 5.08 mm Pitch, 1 Row, Polyamide 1757080
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Horizontal |
| Current | 12A |
| Length | 18.3mm |
| Model | 1757080 |
| Depth | 15mm |
| Width | 45.72mm |
| Housing Material | Polyamide |
| Series | MSTB 2.5/9-ST-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 9 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
Key Features
- Features a polyamide housing for heat resistance and electrical insulation.
- Supports up to 12 A current and voltage rating of 320 V.
- Includes screw wire connection method suitable for wire sizes 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).
- Compact dimensions of 18.3 mm length, 45.72 mm width, and 15 mm depth for space-saving PCB design.
- Horizontal orientation and plug-in mounting type for easy installation.
- Flame-retardant material with UL94 V-0 rating for enhanced safety.
- Lightweight design at approximately 14.89 grams for minimal PCB strain.
- Rated for surge voltage up to 4 kV to protect against power spikes.
Product Description
Phoenix Contact 1757080 MSTB 2.5/9-ST-5.08 Series Pluggable Terminal Block is engineered for reliable and compact electrical connections on printed circuit boards in industrial and electronic applications. With nine contact positions and a 5.08 mm pitch, it facilitates secure multi-cable connections simultaneously.
The terminal block features a durable polyamide housing that provides excellent heat resistance and electrical insulation, making it safe and robust for challenging environments. It supports a current rating of 12 A and voltage rating of 320 V, suitable for a broad range of medium voltage industrial applications.
Wire connections utilize a screw method compatible with wire sizes ranging from 0.2 mm² (24 AWG) to 2.5 mm² (12 AWG), ensuring flexible and secure wiring options. The terminal block's horizontal orientation and plug-in mounting simplify installation and replacement on PCBs.
Its compact size, measuring 18.3 mm in length, 45.72 mm in width, and 15 mm in depth, allows it to fit efficiently in space-constrained electrical assemblies. The flame-retardant polyamide material complies with UL94 V-0 standards, stopping flames within 10 seconds to enhance safety during operation.
With a surge voltage rating of 4 kV, this product protects connected circuits from power spikes and transients. The lightweight design at 14.89 grams reduces mechanical stress on PCB assemblies.
Manufactured in Germany, the MSTB series adheres to strict quality and reliability standards expected in industrial, manufacturing, and electronic control environments. Polyamide housing for heat and electrical insulation.
9 contact positions with 5.08 mm pitch. Screw connection supporting 0.2 mm² to 2.5 mm² wire sizes. Voltage rating of 320 V and current rating of 12 A. Flame-retardant UL94 V-0 material. Compact dimensions suitable for small PCB spaces.
4 kV surge voltage protection. Plug-in mounting for easy installation. German manufacturing quality.
Ideal for industrial, electronic manufacturing, and HVAC control panel implementations, this terminal block ensures safe and reliable electrical connections. Explore more Phoenix Contact terminal blocks and electronic components on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 320 V and a current rating of 12 A, suitable for various medium voltage industrial applications.
This terminal block utilizes a screw connection method, compatible with wire sizes ranging from 0.2 mm² (24 AWG) to 2.5 mm² (12 AWG).
The dimensions are 18.3 mm in length, 45.72 mm in width, and 15 mm in depth, making it compact for PCB applications.
This model features nine contact positions, allowing for secure multi-cable connections simultaneously.
The housing is made of polyamide, providing heat resistance and electrical insulation.
It has a horizontal orientation and a plug-in mounting type, which simplifies installation and replacement on PCBs.
It is rated for a surge voltage of up to 4 kV, protecting connected circuits from power spikes.
Yes, it is made from flame-retardant material that complies with UL94 V-0 standards, enhancing safety during operation.
It is manufactured in Germany, adhering to strict quality and reliability standards.
The pitch of this model is 5.08 mm, allowing for compact arrangements on PCBs.
It is ideal for use in industrial, electronic manufacturing, and HVAC control panel implementations.
This model weighs approximately 14.89 grams, which helps minimize mechanical stress on PCB assemblies.
