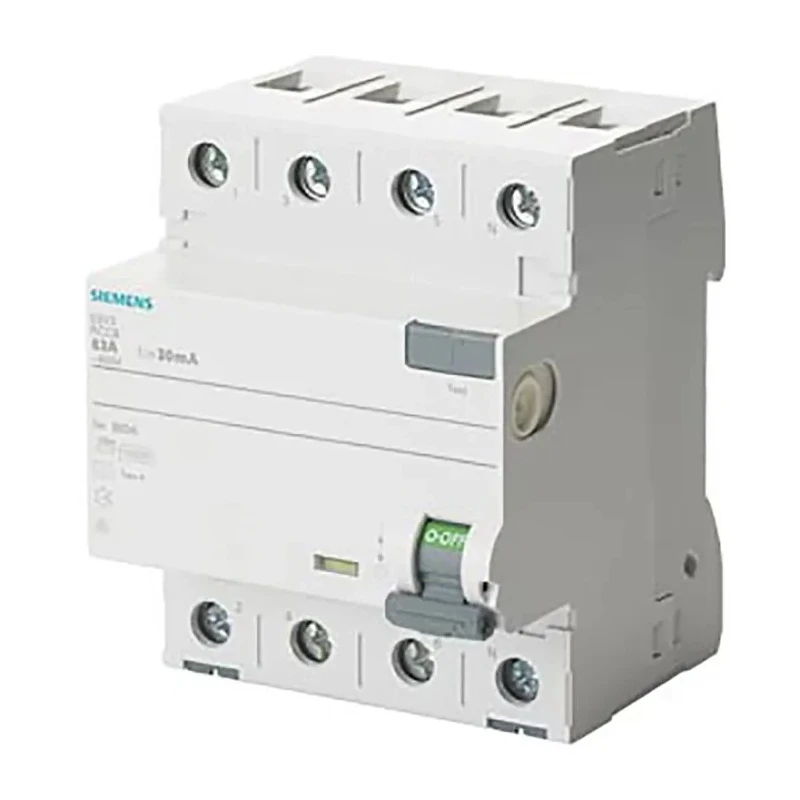

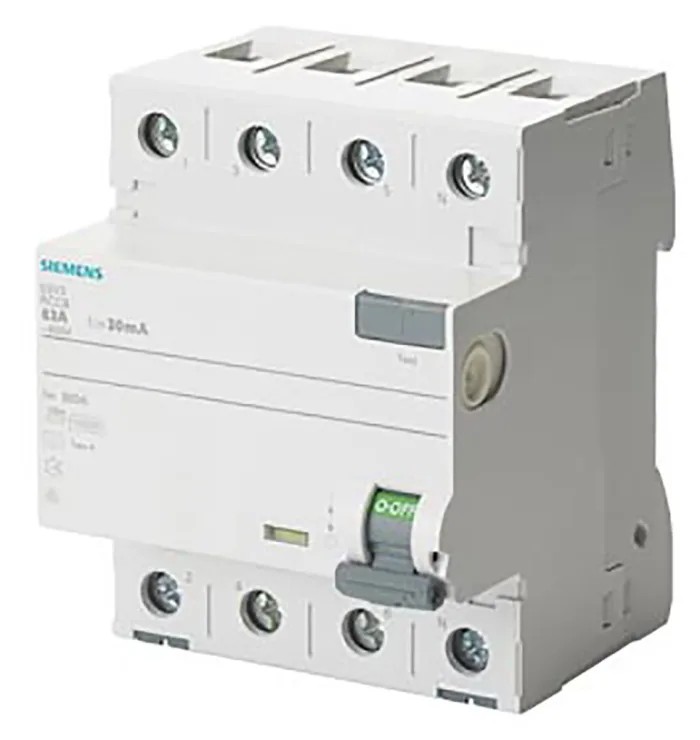

Siemens Residual Current Circuit Breaker 63A 4-Pole 300mA Type A 0.8kA 400V ac 5SV3646-6KL
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SV3646-6KL |
| Depth | 70mm |
| Enclosure | IP20 |
| Width | 72mm |
| Mount Type | DIN Rail |
| Current Rating | 63A |
| Series | 5SV3 |
| Terminal type | Screw |
| Ambient Temperature | -25→+45 °C |
| Breaking Capacity | 0.8kA |
| Number of Poles | 4 |
| Standards/Approvals | CE, EAC, CCC, UKCA, VDE |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type A |
| Better World Claim | Extended Product Life |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | Type A |
| Siemens 5SM3 RCCB, 63A, 4 Pole, 300mA, Type A, 400V acBrand | Siemens |
| Kopp 3 + N 63 A Instantaneous RCD Switch, Trip Sensitivity 300mABrand | Kopp |
Key Features
- Suitable for residential and industrial electrical safety applications.
- Equipped with instantaneous break time and toggle switch reset actuator.
- Mounts conveniently on DIN rail for easy installation.
- Complies with CE, EAC, CCC, UKCA, and VDE standards.
- Constructed with a robust IP20 enclosure and screw terminal connections.
- Operates reliably across an ambient temperature range of -25 to +45 °C.
- Designed for extended product life with over 10,000 switching cycles.
- Provides earth leakage protection ensuring personnel and fire safety.
Product Description
Siemens 5SV3646-6KL Residual Current Circuit Breaker (RCCB) is engineered to offer highly reliable personnel and fire protection with a current rating of 63A and a 4-pole configuration. This Type A RCCB operates at 400V AC with a breaking capacity of 0.8kA and trip sensitivity of 300 mA, ensuring rapid and effective earth leakage detection.
The device supports seamless DIN rail mounting, allowing easy integration into electrical distribution systems. It features a toggle switch reset actuator and electromagnetic tripping mechanism for instant break time response, enhancing safety and operational efficiency.
Constructed with an IP20-rated enclosure and screw terminals, the breaker is suitable for indoor installations in both residential and industrial environments. It maintains functional integrity over an ambient temperature range from -25 to +45 °C and is silicone free to promote longer equipment life, withstanding more than 10,000 switching cycles.
Certified to meet stringent international standards including CE, EAC, CCC, UKCA, and VDE, the Siemens 5SV3646-6KL ensures compliance and reliability. Its compact dimensions (Height: 90 mm, Width: 72 mm, Depth: 70 mm) make it a practical choice for modern electrical panels.
Suitable for residential and industrial electrical safety applications. Equipped with instantaneous break time and toggle switch reset actuator. Mounts conveniently on DIN rail for easy installation. Complies with CE, EAC, CCC, UKCA, and VDE standards.
Constructed with a robust IP20 enclosure and screw terminal connections. Operates reliably across an ambient temperature range of -25 to +45 °C. Designed for extended product life with over 10,000 switching cycles. Provides earth leakage protection ensuring personnel and fire safety.
Silicone free for enhanced durability and safety.
This RCCB fits perfectly within industrial, commercial, and residential electrical protection frameworks, delivering enhanced safety against electrical faults and leakage currents. It contributes to safer electrical installations in environments demanding high switching reliability and conformity to international standards.
Explore more Siemens electrical components and circuit protection devices on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 63A.
It has a trip sensitivity of 300mA.
The breaking capacity of this RCCB is 0.8kA.
This unit operates at a rated AC voltage of 400V.
It is a 4-pole circuit breaker.
It operates reliably across an ambient temperature range of -25 to +45 °C.
The enclosure is rated IP20.
It mounts conveniently on a DIN rail for easy installation.
It features a toggle switch reset actuator.
It complies with CE, EAC, CCC, UKCA, and VDE standards.
The depth is 70mm and the width is 72mm.
It uses an electromagnetic tripping mechanism for instantaneous break time response.
