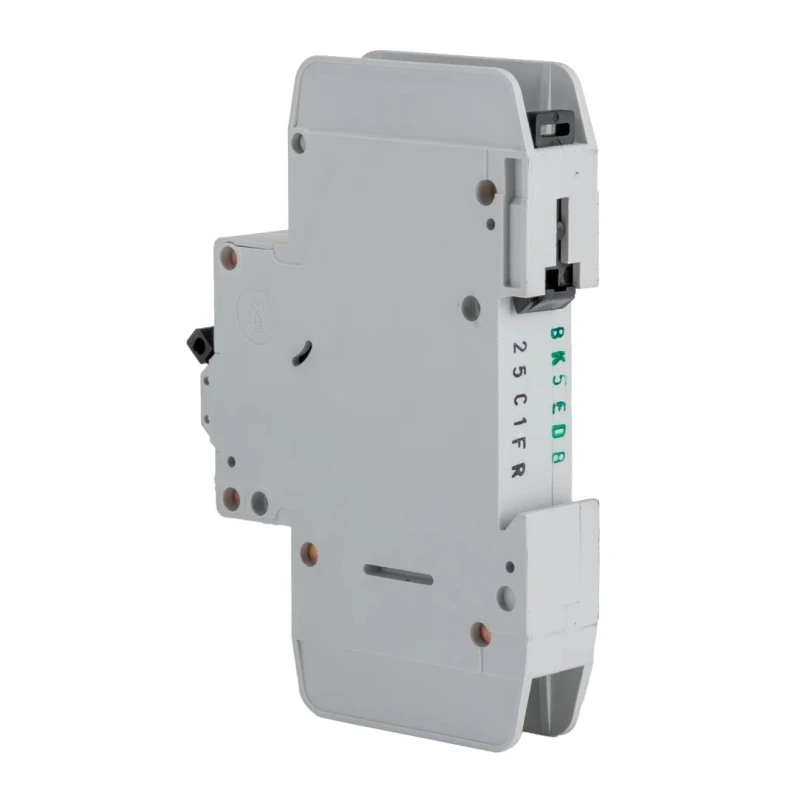

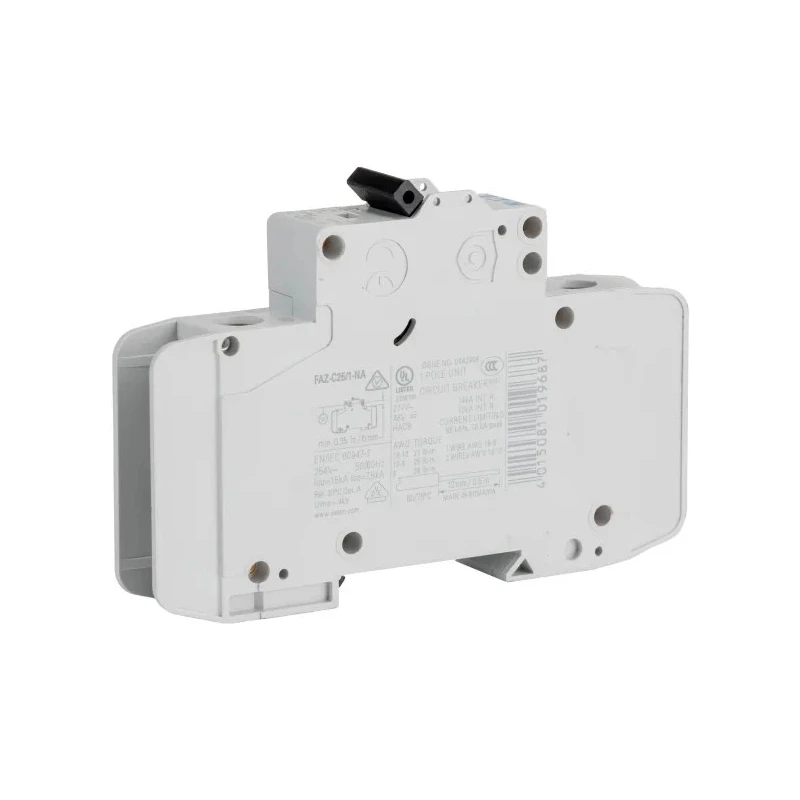

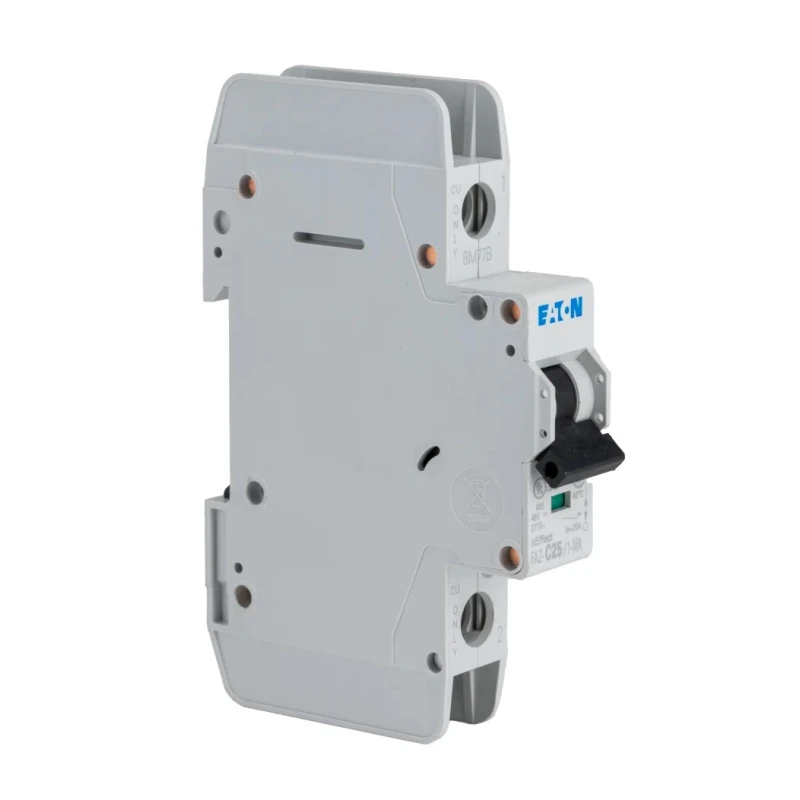

Eaton xEffect Miniature Circuit Breaker 1-Pole 25A Type C Thermal-Magnetic Trip 415V AC 48V DC 10 kA 102092 FAZ-C25/1-NA

The Eaton 102092 FAZ-C25/1-NA xEffect Miniature Circuit Breaker is a high-performance, single-pole circuit breaker designed for industrial and commercial electrical protection. It features a robust thermal-magnetic tripping mechanism that protects electrical circuits against overloads and short circuits, ensuring the safety of installations and personnel.

Rated at 25 amperes, this circuit breaker supports alternating current (AC) systems operating at up to 415 volts and direct current (DC) systems up to 48 volts. Its instantaneous breaking capacity of 10 kiloamperes (kA) allows it to safely handle high fault currents without damage or failure.

This compact device has a DIN rail mounting design making installation straightforward inside control panels and distribution boards. The device width is 66 mm, height 80 mm, and depth 80 mm, making it space-efficient. Its toggle switch actuator provides a clear on/off status and allows for manual resetting after tripping. Screw terminals ensure a reliable and firm electrical connection.

The FAZ series includes this model with a Type C tripping characteristic suitable for general industrial applications where moderate inrush current is expected. Its IP20 ingress protection rating prevents accidental contact with live parts and ingress of solid objects greater than 12.5 mm.

Ideal for protecting electrical circuits in industrial machinery, commercial electrical installations, control panels, and distribution boards. It is particularly suited for areas requiring compact, reliable overcurrent protection with easy reset capability.

Rated current: 25A with reliable tripping characteristics. Thermal-magnetic trip mechanism for rapid response to faults. Single-pole design for simplified protection schemes. Suitable for DIN rail mounting to standard industrial chassis.

Compact dimensions to save panel space. Screw terminal connections for secure wiring. Type C tripping suitable for moderate inrush currents. Breaking capacity rating of 10kA for high fault current interruption. IP20 rated for basic protection against contact and solids.

Eaton, formerly known as Moeller, is renowned for manufacturing high-quality electrical protection devices. This Miniature Circuit Breaker combines durability, safety, and ease of use, making it a trusted choice for industrial, commercial, and electrical engineering applications.
