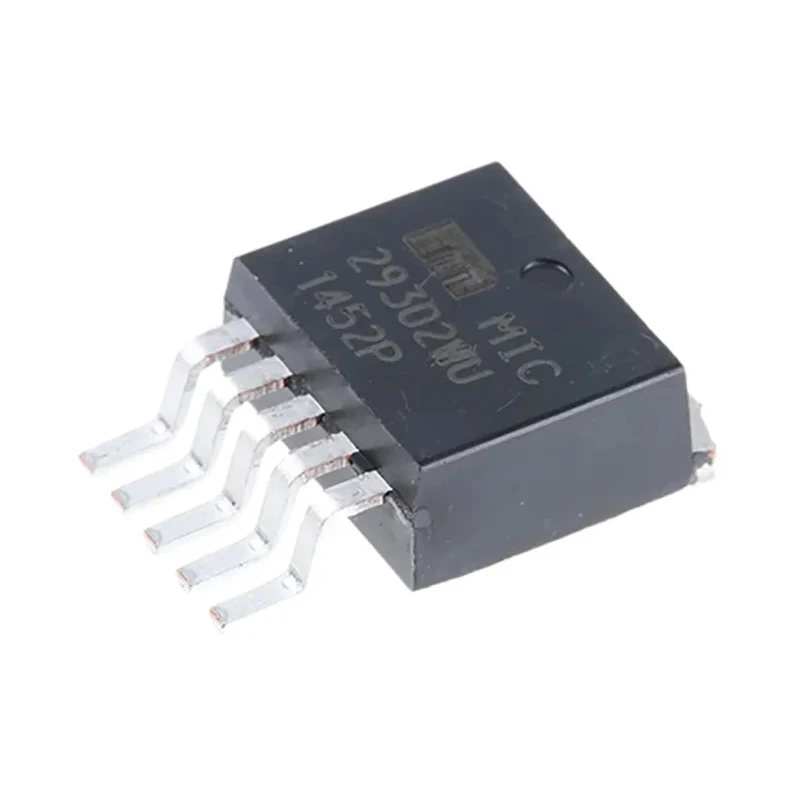

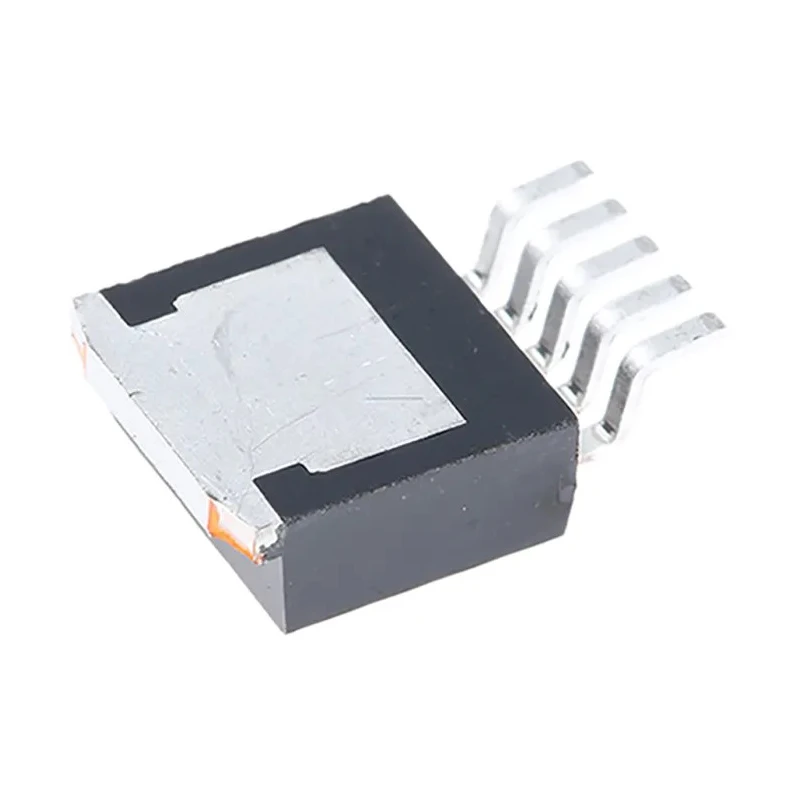

Microchip Voltage Regulator 26V, 3A Low Dropout, Positive Polarity, Surface Mount 5-Pin MIC29302WU

The Microchip MIC29302WU is a 3A low dropout voltage regulator designed for high accuracy, high current applications requiring stable and efficient voltage regulation. Utilizing Microchip's Super Beta PNP technology, this positive polarity voltage regulator features a PNP pass element to provide low dropout voltages between 350mV and 425mV, with a fast transient response time for enhanced performance.

Its zero-current shutdown mode allows energy savings during inactive periods. The regulator includes an error flag output that signals when the output voltage is out of regulation, ensuring reliability in sensitive electronics.

Constructed as a surface mount device in a 5-pin D2PAK package, the MIC29302WU supports operation from a minimum input voltage of 2.5V up to a maximum of 26V, withstanding temperatures up to 125°C, making it suitable for automotive, battery-powered, and high-efficiency computer equipment applications.

Typical applications include use as a high-efficiency post regulator for switching power supplies, LDO linear voltage regulation in industrial and embedded systems, and general purpose voltage regulation where precision and reliability are critical.

The regulator is ideal for automotive power management solutions. Supports battery-powered devices with stable voltage output. Improves efficiency in high accuracy linear power supply designs. Compact and robust surface mount package facilitates integration in modern electronic assemblies.

Features fast transient response ensuring stable operation under variable load conditions.

This product is held to Microchip quality standards and complies with common electronic component norms. It is suitable for use in industrial, automotive, telecommunications, and computing equipment requiring efficient power management.
