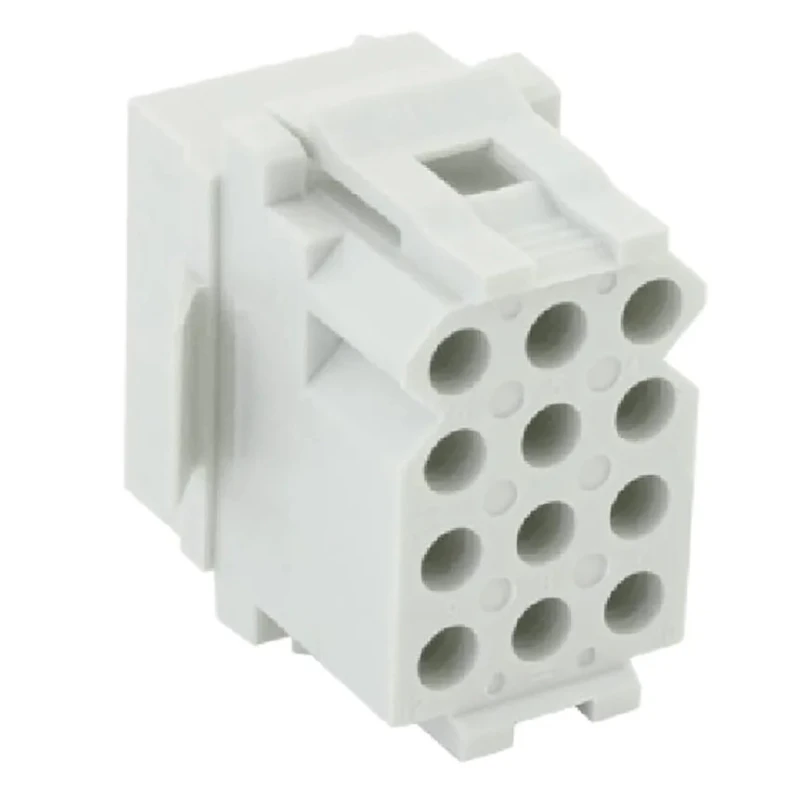

Souriau Sunbank by Eaton Connector Housing 12 Way 4 Row Straight Panel Mount Polyamide 5.08 mm Pitch SMS12R3

Souriau Sunbank by Eaton SMS12R3 Connector Housing is a high-quality, 12-way, 4-row female connector housing designed for panel mounting in electronic and electrical assemblies. This connector housing features a 5.08 mm pitch and a straight orientation, offering compatibility with quick mating PCB connectors. The polyamide PA 6 UL94-V0 construction provides excellent flame retardant properties, making it suitable for demanding industrial and railway indoor applications.

The SMS series housings are structured to snap and lock into panel cutouts without additional hardware, enabling rapid assembly and reliable installation. Positive housing retention latches and polarization keys ensure secure connections and prevent mating errors. These housings comply with fire and smoke standards (I3/F2 per NFF16101 and NFF16102), meeting European railway safety requirements (HL3/R23 EN45545).

The housing dimensions include a length of 16.2 mm and width of 25 mm, designed for compact integration. The connector mates with size 16 TRIM TRIO 1.6 mm diameter snap-lock pin and socket contacts, which can be purchased separately.

The housing material is polyamide with UL94-V0 flame retardant rating. The product ensures positive locking and polarization on quick mating panel connectors. It supports up to 12 electrical contacts arranged in 4 rows. This connector housing is suitable for electronic, railway, transportation, industrial, and manufacturing applications.

Its compliant design facilitates safety and standardization in harsh fire and smoke environments.

This Souriau Sunbank by Eaton SMS12R3 connector housing exemplifies advanced design for safe and efficient wire-to-board connection solutions. Browse other Connector Housings and electronic components at EnvMart to find complementary products for your assembly needs.
