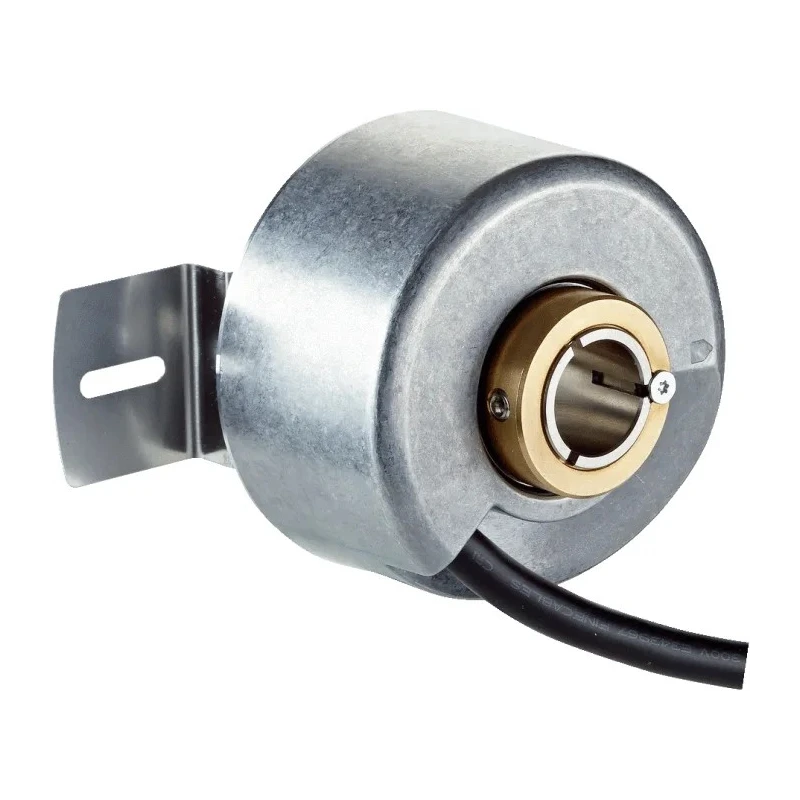

SICK DBS60 Core Series Incremental Encoder 30V, 4096 ppr, HTL and TTL Signal, Hollow Shaft 15.87 mm DBS60

SICK DBS60 Core Series Incremental Encoder DBS60 is designed for precise and reliable motion control sensing in various industrial applications. It operates on a 30V supply voltage and offers a high resolution of 4096 pulses per revolution, enabling accurate measurement of position, speed, and distance.

The encoder features a hollow shaft design with a diameter of 15.87 mm, allowing for simple and secure mounting on shafts up to 5/8 inches. Its compact housing diameter of 58 mm and shallow installation depth make it ideal for space-constrained installations.

With output signal types HTL and TTL and a rugged IP65 rated enclosure, the DBS60 provides robust performance even in harsh conditions. The encoder supports a wide operating temperature range from -30°C to 85°C and can withstand rotational speeds up to 9000 rpm.

Additional advantages include front and rear mounting options using face mount and servo flange configurations, multiple flange and stator coupling hole patterns for diverse installation requirements, and insulated hollow shaft options to protect against high shaft temperatures and currents.

This incremental encoder is commonly applied in factory and logistics automation, including asynchronous motors, elevators, packaging machines, warehousing and transport logistics systems, and conveyor speed measurement tasks. It offers jerk-free acceleration and deceleration monitoring for elevator cars and precise position tracking on transfer systems.

Provides incremental encoder technology for accurate position and speed sensing. Features 4096 pulses per revolution for high resolution output. Supports HTL and TTL output signal types ensuring compatibility with various control systems.

Equipped with a hollow shaft of 15.87 mm diameter facilitating easy shaft mounting. Compact and robust design with IP65 rating suitable for industrial environments. Operating voltage up to 30V allowing versatile application in automation.

Wide operating temperature range from -30°C to 85°C for reliable outdoor and indoor use. Mount type is hollow shaft mount, enabling flexible installation options. Maximum rotational speed of 9000 rpm supporting dynamic motion monitoring.

Switching frequency up to 300kHz for efficient signal processing in high-speed applications.

This encoder is manufactured in Malaysia and built for new condition with compliance to EN 61000-6-3, EN 61000-6-2 standards. The DBS60 Core Series offers a durable and versatile solution for various industrial motion sensing needs. Browse the wide range of Motion Control Sensors available at EnvMart for further solutions.
