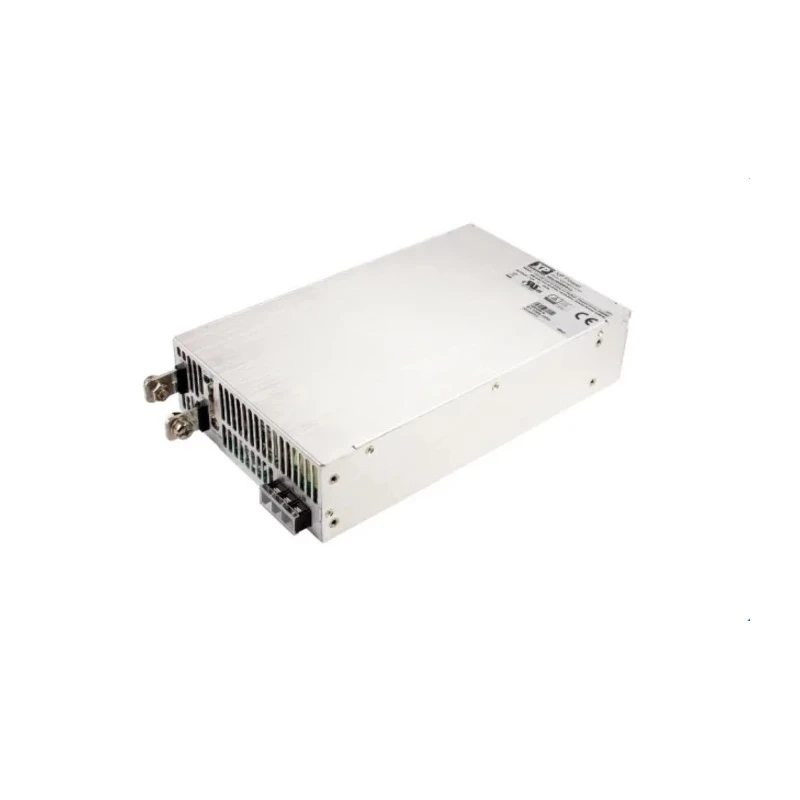

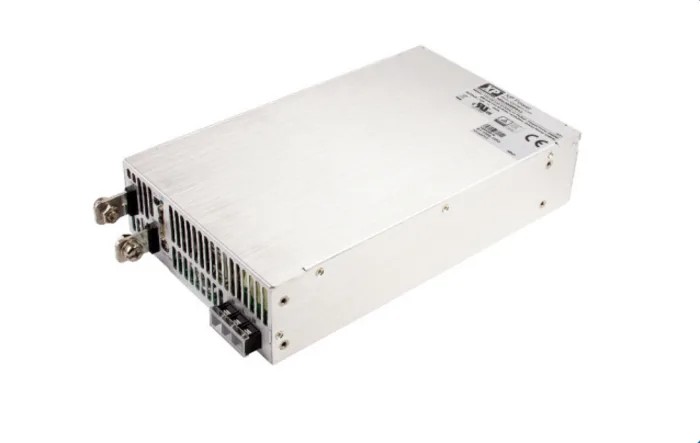

XP Power HDL3000PS36 Switching Power Supply 60V 3kW Chassis Mount 264V AC HDL3000PS36

XP Power HDL3000PS36 switching power supply is a high power density, 3 kW chassis mount unit capable of delivering up to 60V output voltage and 83.5A output current with a maximum input voltage of 264V AC. This power supply series is designed for industrial and electronic applications demanding programmable voltage and current outputs with high efficiency and compact footprint.

The HDL3000PS36 measures 170mm in length, 12.48mm in depth, and 2.52mm in width, making it suitable for chassis mounting in tight spaces. It operates over a wide temperature range between -20°C and 60°C, supporting demanding environmental conditions. Efficiency reaches up to 92%, helping reduce operational energy costs and heat generation.

Key control features include the ability to program output voltage and current between 0% and 105% through resistance, voltage, or I2C bus control. The unit also supports parallel operation to scale power output as required, with active current sharing ensuring balance among parallel units.

Additional functionality includes remote on/off control, remote sensing for voltage drop compensation, and a power OK signal to indicate normal operation. The standby output remains active when mains power is present and can be selected for 5V at 0.5A or 9V at 0.3A.

This power supply complies with multiple safety and industry standards such as EN 62368-1:2014/A11:2017, UL 62368-1, CAN/CSA C22.2 No. 62368-1-14, and IEC 62368-1:2014 making it a reliable choice for industrial machines, laboratory instruments, manufacturing systems, HVAC units, and other demanding applications requiring stable, programmable DC power.

The product is manufactured in Taiwan, Province Of China, reflecting high-quality production standards. Its compact, highly efficient design and broad operating parameters make it ideal for a variety of professional industrial and electronic use cases.

Explore other Switching Power Supplies and related power solutions at EnvMart for comprehensive power management options. This model supports output voltage and current programming from 0 to 105% via multiple interfaces.

It features a compact chassis mount design with dimensions of 170mm length, 12.48mm depth, and 2.52mm width. Operating temperature ranges from -20°C to 60°C ensuring wide environmental compatibility. Includes advanced features such as active current sharing, remote on/off, remote sense, and power OK signaling.

The standby output provides selectable 5V/0.5A or 9V/0.3A when mains is present. Complies with international safety standards including EN 62368-1, UL 62368-1, CAN/CSA and IEC 62368-1. Offers high efficiency performance up to 92% for reduced energy loss.

Designed for parallel operation to increase power capacity as needed.
