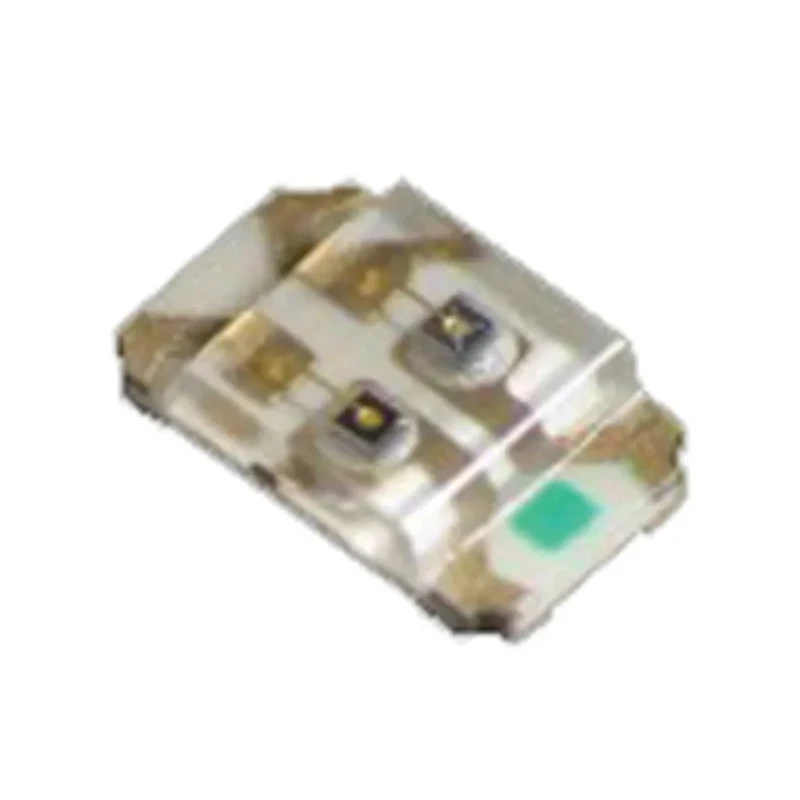

Kingbright 2.5 V Green, Yellow Multi-Colour LED 2012 Surface Mount KPHBM-2012CGKSYKC

Kingbright KPHBM-2012CGKSYKC is a Surface Mount Technology (SMT) multi-colour LED device that combines green and yellow LEDs in a compact 2012 (0805) package. Operating at a forward voltage of 2.5 V, this LED offers efficient illumination and indicator functions with impressively low power consumption and a broad 120° viewing angle, making it highly visible for various applications.

The device features a rectangular clear lens measuring 5 x 2.8 mm, designed to optimize light dispersion and radiation pattern. Incorporating two LEDs with dominant wavelengths of 570 nm (yellow) and 590 nm (green), it supports bright and distinct indication outputs suitable for electronic instrumentation, control panels, and backlighting solutions.

This multi-colour LED is mounted via a surface mount method on a standard 2012 footprint with four pins, ensuring straightforward integration into printed circuit boards for industrial, consumer electronics, and signage applications. Its maximum forward current rating is 30 mA with a power dissipation limit of 75 mW, facilitating low energy consumption while maintaining high illumination efficiency.

The LED series follows RoHS standards, ensuring compliance with environmental directives and providing safe and sustainable use in manufacturing processes, particularly in electronics and electrical assemblies.

Typical applications include electronic display indicators, signaling devices, status lights, and decorative lighting. Its low power and compact surface mount package allow use in space-constrained environments such as mobile devices and instrumentation.

The LED package type is 2012 with a surface mount mounting style. Features two LEDs with green and yellow colours for multi-colour indication. Maximum forward current is 30 mA with a low power dissipation of 75 mW. Viewing angle of 120 degrees provides wide visibility for indicators.

Clear rectangular lens dimensioned at 5 x 2.8 mm for optimal light emission. Forward voltage rated at 2.5 V reduces overall power consumption. Equipped with four pins compatible with standard PCB footprints. Manufactured in China and RoHS compliant.
