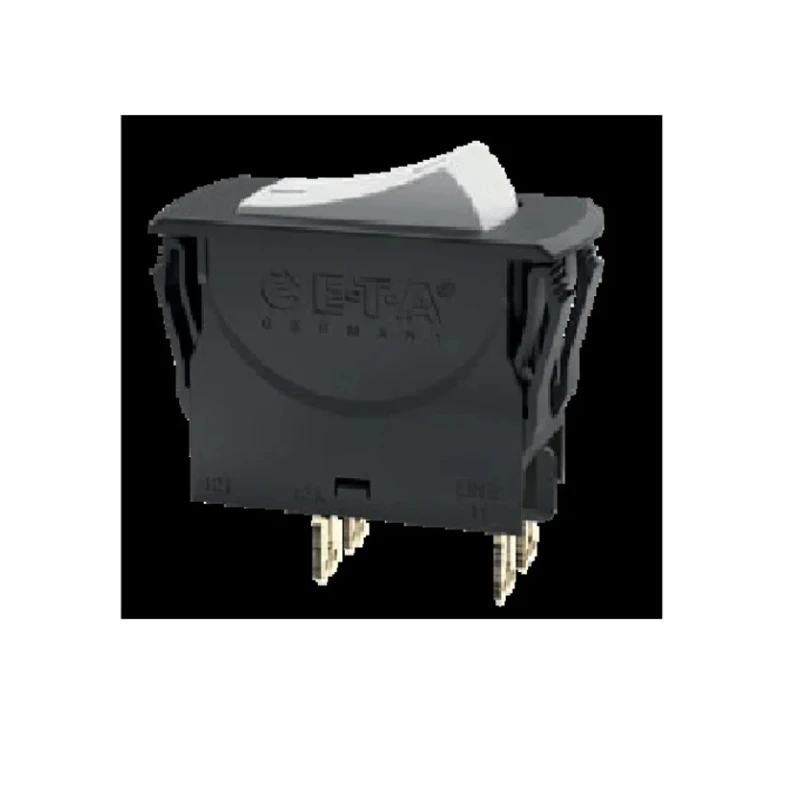

ETA Thermal Circuit Breaker 5-Pole Rocker Reset Actuator 10A Current Rating 240V AC 50V DC 3120-N554-P7T1-W19DG4-10A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	Tunisia
Range	3120-N
Brand	ETA
Height	52.4mm
Model	3120-N554-P7T1-W19DG4-10A
Depth	42.6mm
Mounting Type	Snap-in, cut-out 44.5mm x 22mm
Width	28mm
Mount Type	Screw
Current Rating	10A
Series	3120-N
Terminal type	Blade
Breaking Capacity	10A
Number of Poles	5
Standards/Approvals	RoHS, REACH, CCC, VDE, IEC, CSA, EAC
Rated AC Voltage	240V ac
Rated DC Voltage	50V dc
Tripping Mechanism	Thermal
Reset Actuator Type	Rocker

Key Features

The breaker employs a thermal bimetal trip element for dependable overload protection.
It features a rocker reset actuator enabling quick and easy manual reset after tripping.
Screw mounting and blade terminal types offer secure installation and connectivity.
Designed for rated AC voltage of 240V and DC voltage of 50V, suitable for various electrical systems.
Compact dimensions with a width of 28mm, height of 52.4mm, and depth of 42.6mm.
Positively trip-free mechanism ensures circuit disconnection even if the actuator is blocked.
Snap-in mounting with a cut-out size of 44.5mm x 22mm reduces installation time.
Conforms to RoHS, REACH, CCC, VDE, IEC, CSA, and EAC standards for safety and environmental compliance.

Product Description

ETA 3120-N554-P7T1-W19DG4-10A thermal circuit breaker is a robust 5-pole device designed to combine overcurrent protection with ON/OFF switching capabilities. It operates using a thermal bimetal trip element, providing reliable protection against overloads.

The breaker includes a rocker-type reset actuator, allowing users to promptly and easily reset the device after a trip event. It features screw mounting and blade terminals for stable mechanical and electrical connections.

This circuit breaker is rated for operation at 240V AC and 50V DC with a current rating of 10A and a breaking capacity of 10A, suitable for protecting electrical circuits in industrial and commercial environments.

Its compact form factor, with dimensions of 28mm width, 52.4mm height, and 42.6mm depth, supports space-saving installations. The snap-in mounting with a cut-out size of 44.5mm x 22mm helps reduce wiring and mounting time.

The device complies with multiple international safety and environmental standards including RoHS, REACH, CCC, VDE, IEC, CSA, and EAC, ensuring environmental safety and reliable performance.

The positively trip-free mechanism guarantees that the circuit breaker will disconnect the circuit even if the actuator becomes blocked, enhancing safety for applications involving motors, pumps, transformers, and cable circuits.

The breaker employs a thermal bimetal trip element for dependable overload protection. It features a rocker reset actuator enabling quick and easy manual reset after tripping. Screw mounting and blade terminal types offer secure installation and connectivity.

Designed for rated AC voltage of 240V and DC voltage of 50V, suitable for various electrical systems. Compact dimensions with a width of 28mm, height of 52.4mm, and depth of 42.6mm. Positively trip-free mechanism ensures circuit disconnection even if the actuator is blocked.

Snap-in mounting with a cut-out size of 44.5mm x 22mm reduces installation time. Conforms to RoHS, REACH, CCC, VDE, IEC, CSA, and EAC standards for safety and environmental compliance. Ideal for overload protection of motors, pumps, transformers, and cables.

This thermal circuit breaker is widely used across industrial, electrical panel, manufacturing, and automation sectors, providing exceptional safety and operational reliability. Explore our range of Circuit Breakers for comprehensive electrical protection solutions at EnvMart.
