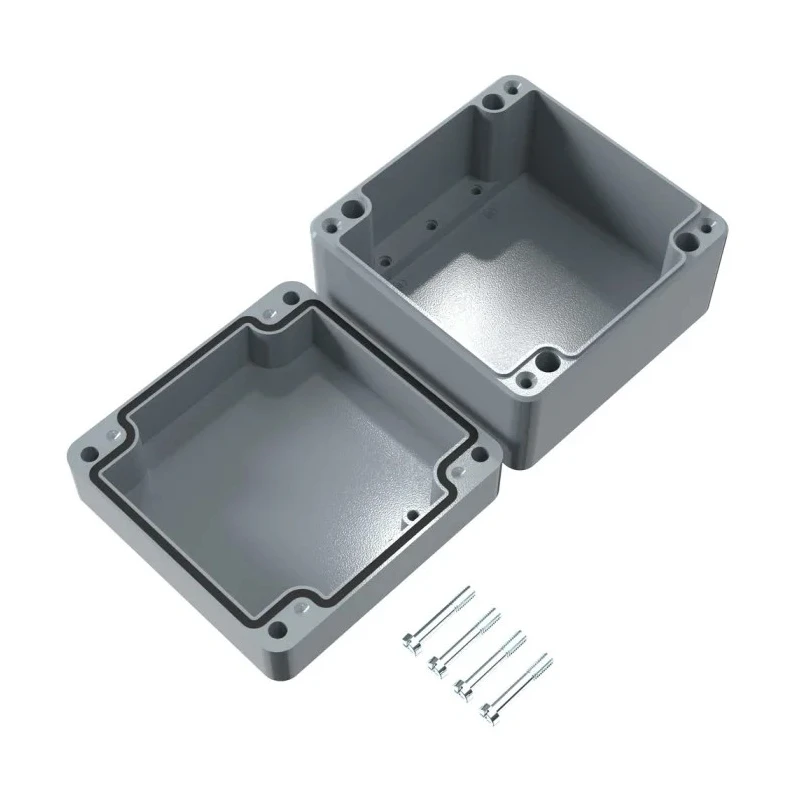

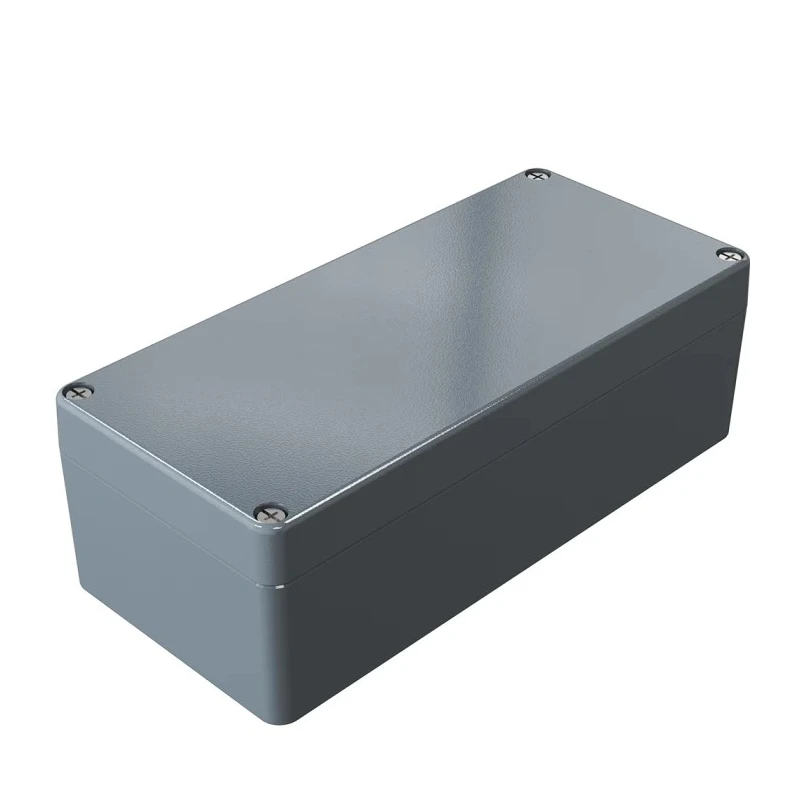

Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure, IP66, IK09, 140 mm x 140 mm x 140 mm 01141409
Specifications
| Country of Origin | India |
|---|---|
| Brand | Rose |
| Body Material | Die Cast Aluminium |
| Model | 01141409 |
| IP Rating | IP66 |
| Gross Weight | 1.5kg |
| Series | Aluminium Standard |
| External Width | 140mm |
| External Height | 140mm |
| Shielding | Shielded |
| Hazardous Area Certification | Maritime, UL |
| Standards/Approvals | UL508 |
| External Length | 140mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| Number of Knockouts | 0 |
Key Features
- Die cast aluminium body ensures robust construction and conductive properties.
- Grey lid with polyurethane gasket provides tight dust and water-resistant sealing.
- Stainless steel fixing screws and earthing screws offer secure assembly and grounding.
- UL508 certified with hazardous area certification for maritime and industrial use.
- Mechanical impact resistant with IK09 rating for durability.
- Shielded design with zero knockouts for enhanced protection.
- Mountable on DIN rails or walls using mounting plates for flexible installation.
- Operates efficiently across a wide temperature range from -40°C to +90°C.
Product Description
Rose 01141409 Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure is a high-quality protective housing designed for industrial and electrical applications. It features a robust die cast aluminium body that offers conductive properties, making it an excellent choice to safeguard sensitive electrical components.
The enclosure measures 140 mm in height, width, and length, providing a compact solution for storing small parts and equipment. Its grey lid and polyurethane gasket ensure a secure, dust and water-resistant seal with an IP66 ingress protection rating, capable of resisting high-pressure water jets and dust ingress.
With IK09 impact resistance rating, this enclosure is built to withstand mechanical shocks and harsh environmental conditions. Stainless steel fixing screws maintain corrosion resistance for long-term reliability, while earthing screws provide effective grounding to enhance safety.
The unit complies with UL508 standards and holds hazardous area certification for maritime and UL-rated environments, ensuring suitability in demanding industrial settings.
The enclosure is shielded and does not have knockouts, maintaining a secure protection barrier. It supports mounting on DIN rails or walls with mounting plates, offering flexible installation options tailored to various industrial setups.
Rose's Aluminium Standard Series enclosure operates efficiently within a wide temperature range from -40°C to +90°C, making it suitable for diverse applications including industrial automation, food and beverage processing, construction, and traffic control systems.
The die cast aluminium body ensures robustness and electrical conductivity. Compact dimensions allow for versatile usage in small component storage. PU gasket provides effective sealing against dust and moisture ingress.
Stainless steel screws increase durability and corrosion resistance. UL508 certification and hazardous area approvals ensure industrial safety compliance. IK09 rating confirms resistance to mechanical impacts. Flexible mounting options on DIN rails or walls.
Wide operating temperature range supports demanding environmental conditions. Applications span multiple industrial sectors for enhanced utility.
Enhance your industrial equipment protection with Rose Aluminium Standard Series enclosures, an ideal choice for reliable and rugged electrical housing solutions. Explore more products like this in the General Purpose Enclosures category at EnvMart to find suitable enclosures for diverse industrial requirements.
Explore more products in our Electrical Enclosure category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 140 mm in height, width, and length, providing a compact solution for storing small parts and equipment.
It has an IP66 ingress protection rating, which means it is resistant to high-pressure water jets and dust ingress.
The body is constructed from die cast aluminium, which offers robust construction and conductive properties.
This enclosure has an IK09 rating, indicating it is designed to withstand mechanical shocks and harsh environmental conditions.
It can be mounted on DIN rails or walls using mounting plates, allowing for flexible installation options.
The enclosure features a polyurethane gasket that provides a tight, dust and water-resistant seal.
It complies with UL508 standards and has hazardous area certification for maritime and UL-rated environments.
The gross weight of the enclosure is 1.5 kg.
It operates efficiently within a wide temperature range from -40°C to +90°C.
No, this model is shielded and does not have any knockouts, maintaining a secure protection barrier.
It is suitable for various industrial applications, including industrial automation, food and beverage processing, construction, and traffic control systems.
The enclosure uses stainless steel fixing screws and earthing screws, which offer corrosion resistance and secure assembly.
