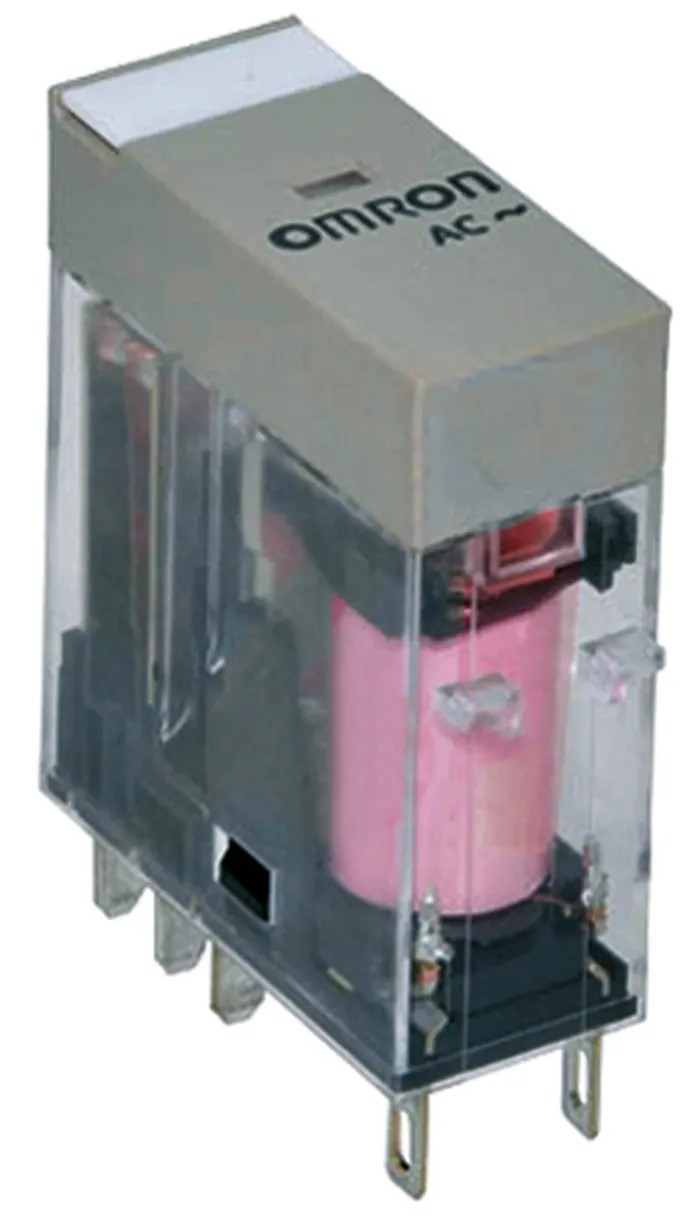

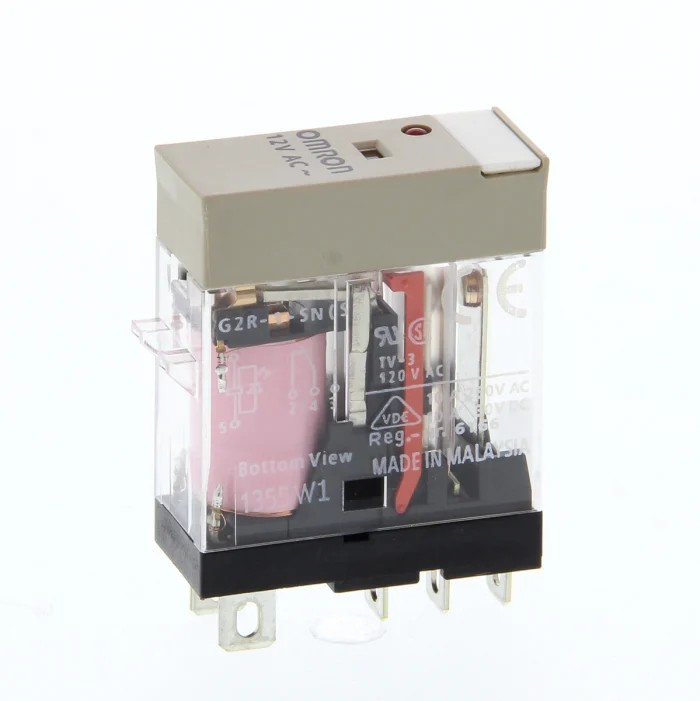

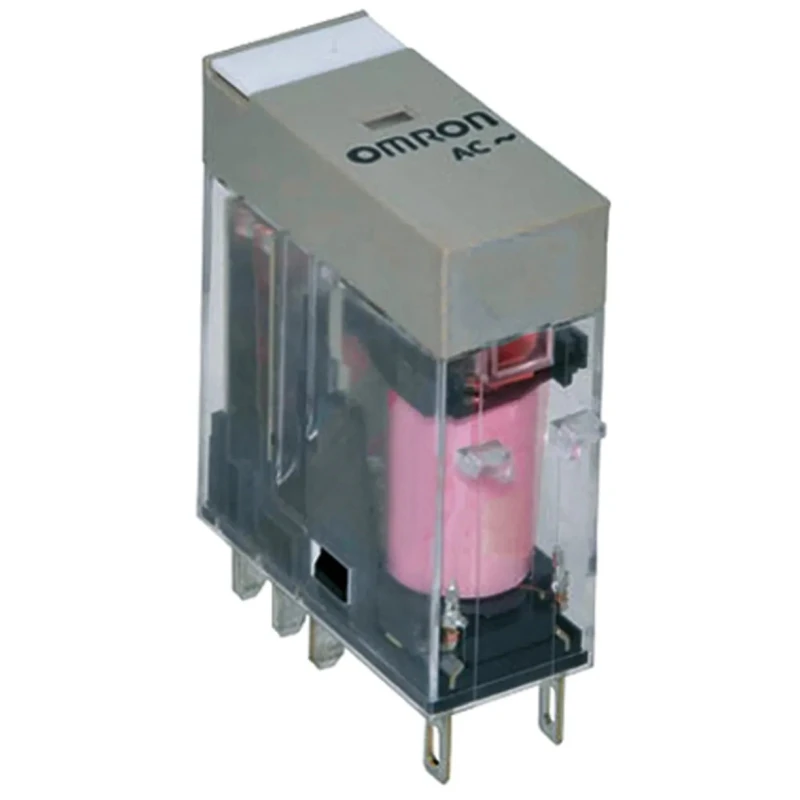

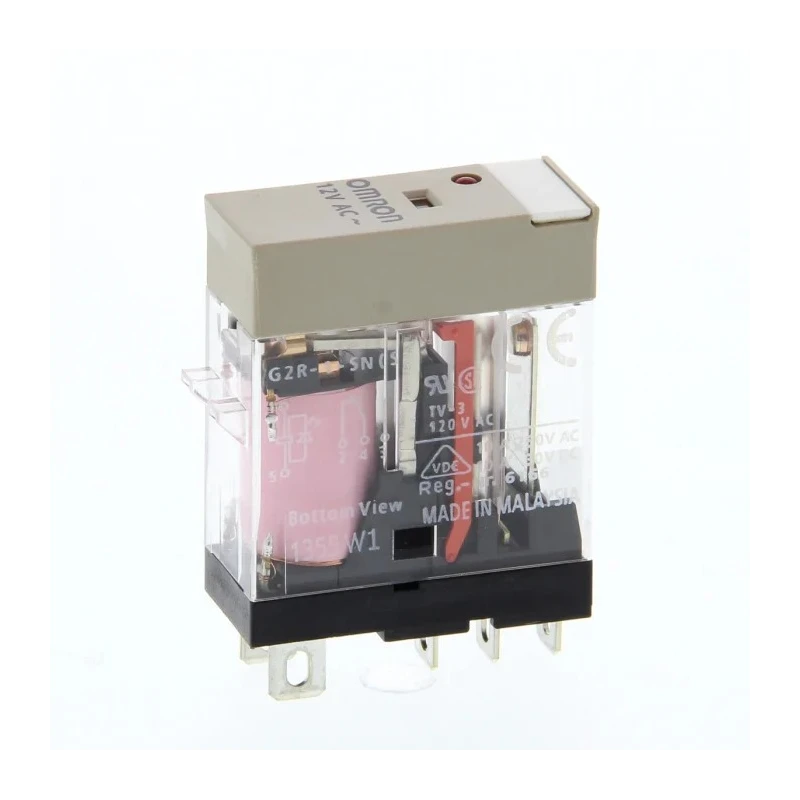

Omron Power Relay 120V Coil, 10A Switching Current, SPDT Contact Configuration G2R-1-SN 120VAC (S)

The Omron G2R-1-SN 120VAC (S) power relay is a high-performance component designed for industrial and electrical automation applications requiring robust and reliable switching. Featuring a coil voltage of 120V and a switching current rating of 10A with a single-pole double-throw (SPDT) contact configuration, this relay offers versatile load management capabilities.

Its compact form factor measures 29 mm in length, 13 mm in width, and 35.5 mm in height, allowing for efficient use of panel space. The relay uses plug-in type terminals which simplify wiring and maintenance. A mechanical operation indicator built into the relay provides visual confirmation of its operational status, aiding in troubleshooting and monitoring.

Reliability is further enhanced by the built-in coil-disconnection self-diagnostic function which alerts operators to coil issues, preventing unexpected system failures. The AgSnIn contact material used in the relay construction significantly improves durability by reducing contact wear, ensuring longer operational life and consistent performance under heavy loads.

This relay performs reliably across a wide temperature range from -40°C to +70°C, making it suitable for harsh industrial environments. It meets recognized standards such as UL and CSA, providing assurance of safety and quality compliance.

Typical applications for the Omron G2R-1-SN include control panels in electrical distribution, machinery control systems, safety system switching, and HVAC system controls. Its robust performance and diagnostic features make it ideal for critical switching tasks in industrial automation, manufacturing, and electrical infrastructure settings.

Compact size maximizes control panel efficiency. Plug-in terminals reduce wiring time and complexity. Mechanical indicator facilitates easy operation monitoring. Self-diagnostic coil function prevents relay failures. Durable AgSnIn contacts increase relay lifespan.

Wide operating temperature range for versatile environments. Compliance with international safety standards UL and CSA. SPDT configuration supports multiple switching applications. Suitable for electrical distribution and industrial automation.

Enhances reliability in HVAC and machinery control systems. Explore more Power Relays and electrical control components on EnvMart to find quality solutions for your industrial and automation needs.
