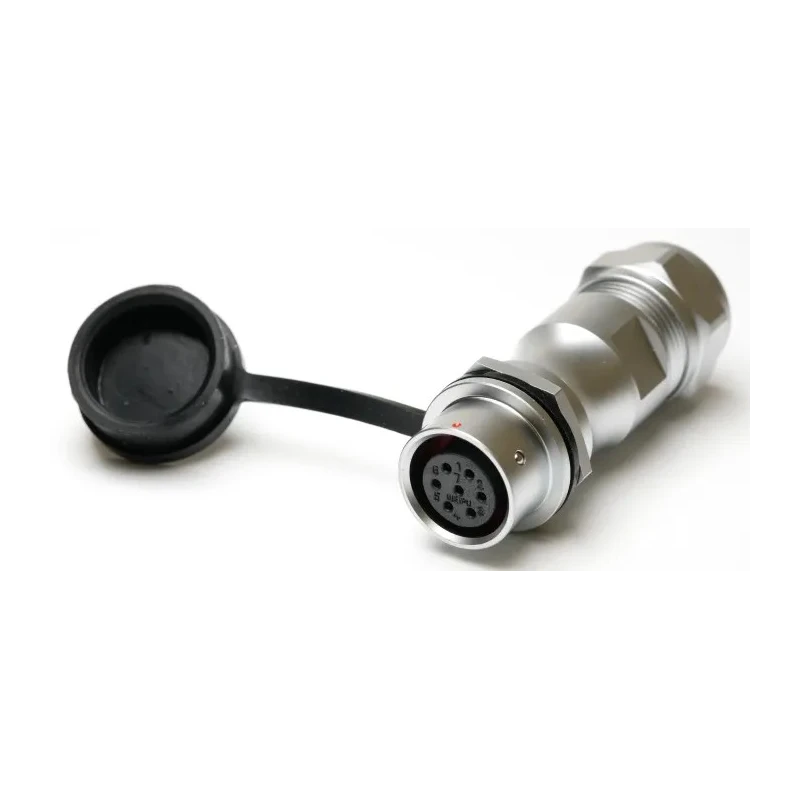

RS PRO Industrial Circular Connector, 7 Contacts, Cable Mount, M16 Size, Socket Female, 5A Current, 400V, IP67 206-5083
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 400V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 206-5083 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | SF16 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 7 |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Shell Size | 18.4 mm |
| Mating Type | Push Pull |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- This socket connector is suitable for cable mounting with a push-pull coupling system for quick installation.
- Constructed with chrome plated brass housing and gold-plated brass contacts for durability and corrosion resistance.
- Certified with IP67 waterproof rating ensuring protection against dust and water ingress.
- Designed for operating temperatures between -40°C and 85°C, supporting 400V voltage and 5A current ratings.
- Compatible with medical, communications, test & measurement, and industrial equipment requiring reliable, watertight connections.
- The connector features solder termination and a straight orientation with an 18.4 mm shell size for compact installation.
- Rated for 500 mating cycles to ensure long-lasting performance.
Product Description
RS PRO 206-5083 is an Industrial Circular Connector from the SF16 series designed for cable mounting applications. This M16 connector features 7 contacts in a female socket configuration, offering a secure push-pull coupling mechanism rated at 5 amps and 400 volts. The housing is made from durable chrome plated brass, while the contacts are brass plated with gold to ensure reliable conductivity and resistance to corrosion.
Engineered for harsh industrial environments, this connector carries an IP67 rating, providing complete protection against dust and water immersion. It supports a wide temperature range from -40°C to 85°C, making it suitable for applications such as medical devices, communications equipment, test & measurement instruments, and other demanding settings.
Installation is straightforward with the solder-type termination and straight orientation, facilitating quick and secure cable connections. The connector shell size is 18.4 mm, and it is designed for 500 mating cycles to withstand repeated usage without degradation.
Key features include a push-pull coupling system for ease of connection and disconnection, compatibility with cables having outer diameters between 5 to 8 mm or 8 to 12 mm, and excellent insulation resistance of 2000 MΩ. These properties make it ideal for customized waterproof connector systems requiring reliable interconnections.
This RS PRO Industrial Circular Connector is manufactured in China under the controlled processes of the SF16 series, ensuring high standards of performance and durability. This M16 cable-mounted circular connector provides secure and waterproof connections.
Made with chrome plated brass housing and gold-plated brass contacts for long life. Supports operating temperatures from -40°C to 85°C and rated at 400V, 5A current. Push-pull coupling system enables easy mating and demating of connectors.
Durable design rated for 500 mating cycles to ensure extended usage. Suitable for medical, industrial, communication, and test equipment applications requiring waterproof connectors. Explore additional RS PRO Industrial Circular Connectors and accessories at EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 400V voltage and 5A current.
It has an IP67 rating, providing complete protection against dust and water immersion.
The connector supports operating temperatures from -40°C to 85°C.
This connector features 7 contacts in a female socket configuration.
The housing is made from chrome plated brass, and the contacts are brass with gold plating for improved conductivity and corrosion resistance.
It utilizes solder termination for secure cable connections.
The shell size of this model is 18.4 mm.
It features a push-pull coupling mechanism for easy connection and disconnection.
This connector is rated for 500 mating cycles, ensuring extended usage without degradation.
It is suitable for medical, communications, test & measurement, and industrial equipment requiring reliable, watertight connections.
The connector has a straight orientation for installation.
This model is compatible with cables having outer diameters between 5 to 8 mm or 8 to 12 mm.
