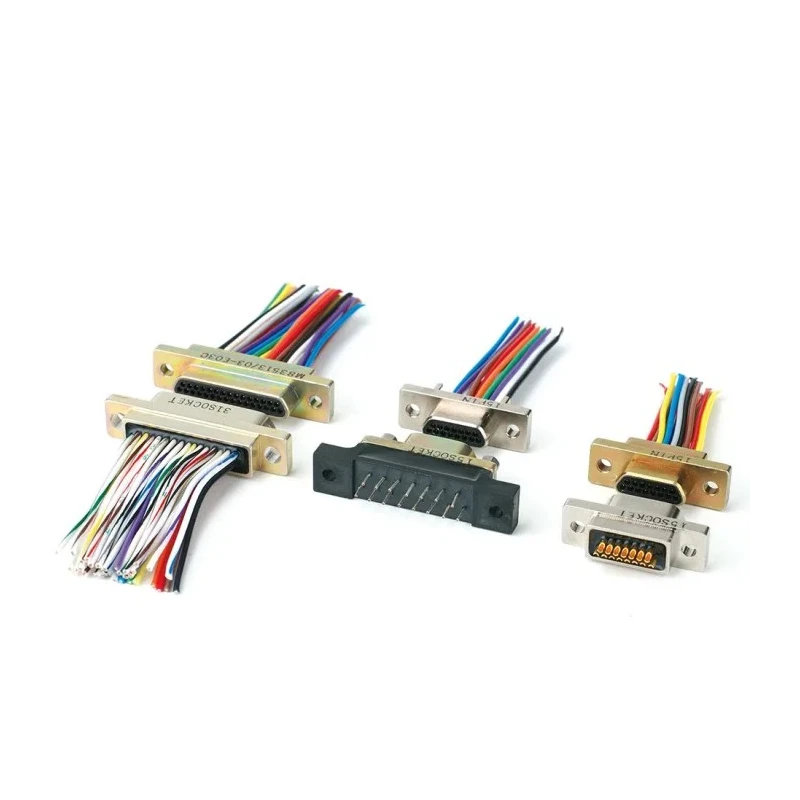

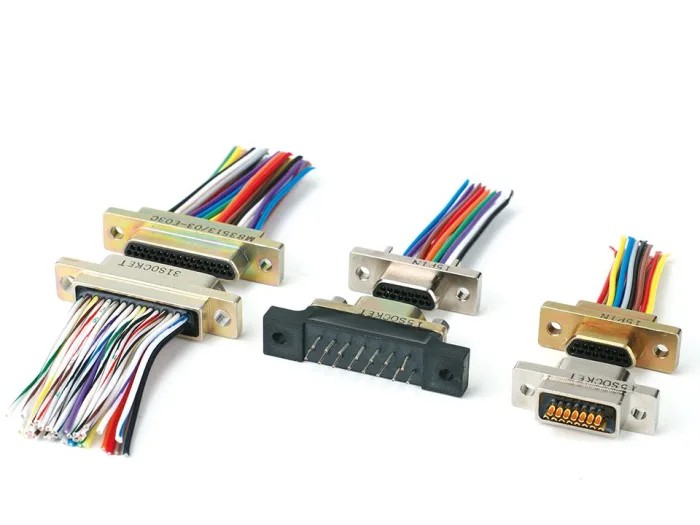

Amphenol Canada 9 Way Micro-D D-Sub Connector Male M83513/03-A11N
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Amphenol Canada |
| Model | M83513/03-A11N |
| Contact Material | Copper Alloy |
| Series | M83513 |
| Termination Type | PC Pin |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Micro-D |
| D-Sub Shell Size | A |
Key Features
- The connector features 9 contacts arranged in a Micro-D shell size A configuration.
- It has a male gender with PC pin termination for reliable connections.
- Contact material is copper alloy with gold over nickel plating ensuring excellent conductivity and corrosion resistance.
- Operates reliably across a temperature range from -55°C to 125°C.
- Designed to meet stringent US military standard M83513 requirements for micro connectors.
- Offers low mating and unmating force with uniform insertion forces for ease of use.
- One-piece contacts with compliant tines ensure consistent electrical performance.
- Preferred for space and satellite applications due to its durable construction and performance.
Product Description
Amphenol Canada M83513/03-A11N 9 Way Micro-D D-Sub Connector Male is engineered to provide a compact and robust interconnect solution suitable for demanding industrial, aerospace, satellite, and military applications.
This connector features 9 contacts within a Micro-D shell size A design, offering reliable performance in tight spaces where traditional connectors cannot fit. The robust copper alloy contacts plated with gold over nickel ensure optimal electrical conductivity and resistance to corrosion, significantly extending the connector's service life.
Termination is via PC pin, and the connector is built to provide low insertion and extraction forces with a one-piece contact design incorporating compliant tines for consistent and secure connections.
It performs reliably across a wide temperature range from -55°C to 125°C, making it suitable for extreme environmental conditions, including space and satellite equipment where thermal and mechanical stresses are common.
The M83513 series from Amphenol Canada strictly conforms to US military standard M83513 for micro connectors, providing assurance of quality and compatibility for military and aerospace projects.
The connector has a full 9-contact arrangement in a Micro-D shell size A format. Built with high-grade copper alloy contacts with durable gold over nickel plating. PC pin termination ensures strong mechanical and electrical connections.
Operates from -55°C to 125°C for extended application versatility. Low mating and unmating force with uniform insertion forces for ease of handling. Ideal for applications in aerospace, space, satellite, defense, and high-reliability industrial sectors.
Manufactured in Mexico with strict quality controls.
This product is included in the Amphenol Canada range of D-Sub connectors designed for micro applications. It is a preferred choice where space-saving, ruggedness, and strict performance standards are mandatory.
Browse the comprehensive D-Sub Connector category on EnvMart for a wide selection of interconnect solutions from trusted brands including Amphenol Canada.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
This connector features a total of 9 contacts.
It uses PC pin termination for reliable connections.
The minimum operating temperature is -55°C.
The contacts are made from copper alloy with gold over nickel plating.
It has a Micro-D shell size A configuration.
The connector features a male gender.
It is suitable for aerospace, space, satellite, defense, and high-reliability industrial applications.
This product is manufactured in Mexico.
Yes, it is designed to meet stringent US military standard M83513 requirements for micro connectors.
The compliant tines ensure consistent electrical performance and provide low mating and unmating forces for ease of use.
The gold over nickel plating ensures excellent conductivity and corrosion resistance, significantly extending the connector's service life.
