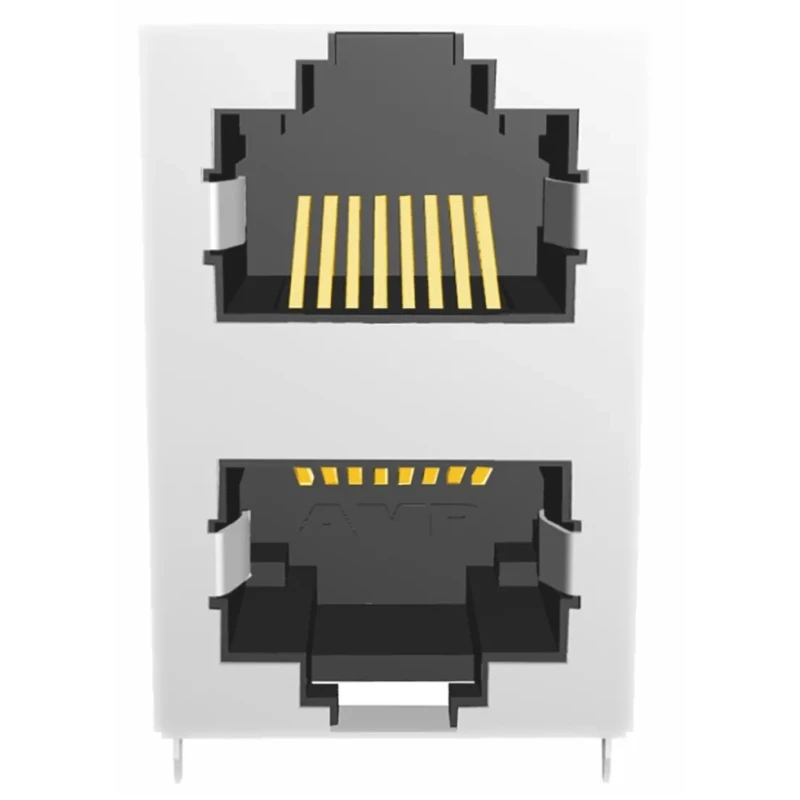

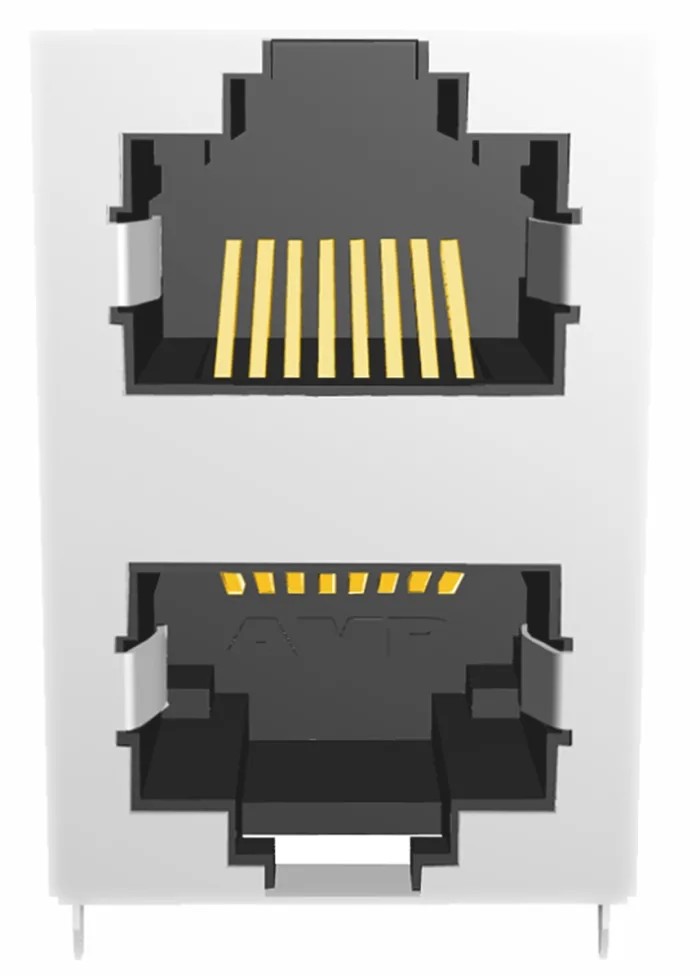

TE Connectivity 5569380 Series RJ45 Connector Female PCB Cat5 Shielded Right Angle 1 Port 8 Way RJ45
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 25.27mm |
| Model | RJ45 |
| Depth | 28.45mm |
| Connector Type | Modular Jack |
| Number Of Ways | 8 |
| Width | 17.27mm |
| Mount Type | PCB |
| Contact Material | Phosphor Bronze |
| Series | 5569380 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Contact Plating | Gold |
| Connector Gender | Female |
| LAN Category | Cat5 |
| Ethernet Connector Type | RJ45 |
Key Features
- This RJ45 connector supports Cat5 LAN category for network applications.
- It features a female modular jack with 1 port and 8 ways configuration.
- The connector has shielded contacts for EMI/RFI protection.
- Right angle orientation with solder termination ensures easy PCB mounting.
- Constructed with phosphor bronze contacts plated with gold for durability and conductivity.
- The housing is flame retardant polyester rated UL 94V-0 for safety compliance.
- Operating temperature ranges from -40°C to 85°C for broad environmental suitability.
- The product is manufactured in China and presented new in condition.
Product Description
TE Connectivity RJ45 5569380 Series RJ45 Connector Female PCB Cat5 Shielded Right Angle 1 Port 8 Way is engineered for high-performance Ethernet applications meeting Cat5 LAN standards, featuring a compact footprint for efficient PCB space utilization.
This modular jack connector has a female contact configuration with 8 ways to support standard network cables and signals. The right angle orientation and solder termination type facilitate straightforward PCB mounting and secure connection.
Constructed with phosphor bronze contacts plated in gold, it ensures excellent electrical conductivity and corrosion resistance, while the UL 94V-0 flame retardant polyester housing guarantees industrial safety standards.
The shielded design offers effective EMI/RFI protection, making it ideal for environments sensitive to electromagnetic interference. The connector operates reliably across temperatures from -40°C to 85°C, suitable for various industrial and commercial settings.
Physical dimensions of 25.27 mm length, 17.27 mm width, and 28.45 mm depth provide a compact footprint in communication devices, routers, servers, and consumer electronics. This connector complies with FCC part 68 regulations aligned with Telecommunications Industry Association standards.
It is widely used in networking equipment, telecommunications, and business electronics where robust and reliable RJ45 connections are required. The connector does not incorporate LED indicators or hazardous area certification.
Supports Cat5 LAN category for Ethernet networks. Female modular jack with shielded contacts for enhanced signal integrity. Right angle mounting reduces PCB space and optimizes layout. Solder termination ensures durable solder joint connections.
Gold-plated phosphor bronze contacts provide corrosion resistance and optimum conductivity. Flame retardant housing meets UL 94V-0 standard for safety. Operating temperature from -40°C to 85°C ensures versatility. Dimensions compactly designed for efficient PCB integration.
Complies with relevant FCC and TIA standards. Manufactured in China and supplied new. Explore our comprehensive Ethernet Connector category for more industrial-grade networking components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a right angle orientation, which facilitates efficient PCB mounting and optimizes layout.
The connector can operate at a maximum temperature of 85°C, making it suitable for a range of environments.
The connector has a length of 25.27 mm and a width of 17.27 mm, providing a compact footprint for PCB integration.
It features 1 port, configured as a female modular jack with 8 ways for standard network connections.
This model utilizes solder termination, ensuring secure and durable connections on the PCB.
The contacts are made of phosphor bronze and are plated with gold to enhance conductivity and corrosion resistance.
It features shielded contacts, which offer protection against electromagnetic interference (EMI) and radio frequency interference (RFI).
The connector operates reliably at a minimum temperature of -40°C, allowing it to function in various conditions.
Yes, it complies with FCC part 68 regulations and aligns with Telecommunications Industry Association standards.
The depth of this model is 28.45 mm, contributing to its compact design.
This RJ45 connector is manufactured in China, ensuring a specific origin for the product.
It is widely used in networking equipment, telecommunications, and business electronics where reliable RJ45 connections are essential.
