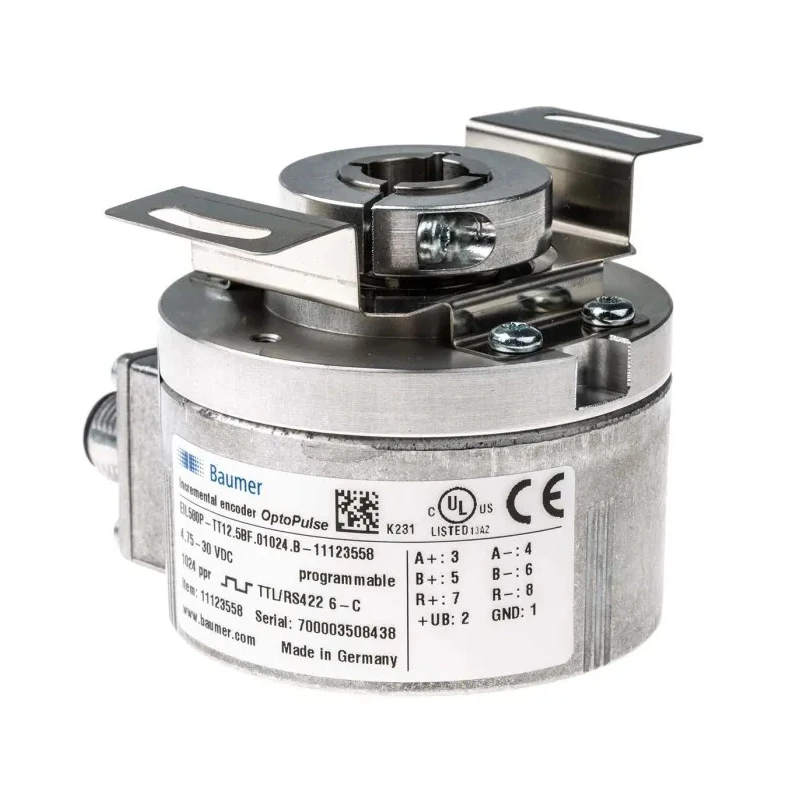

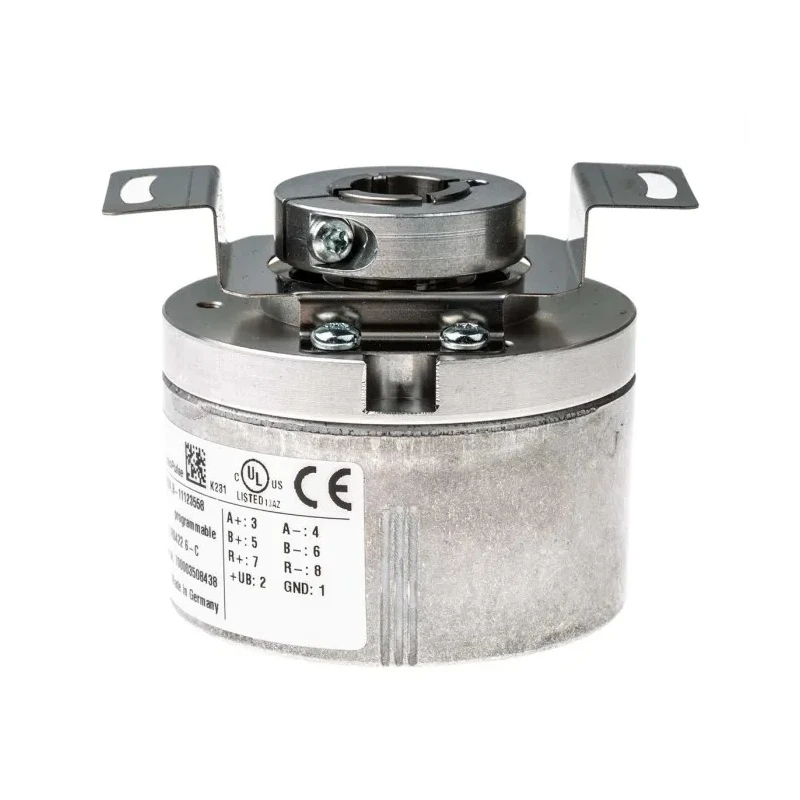

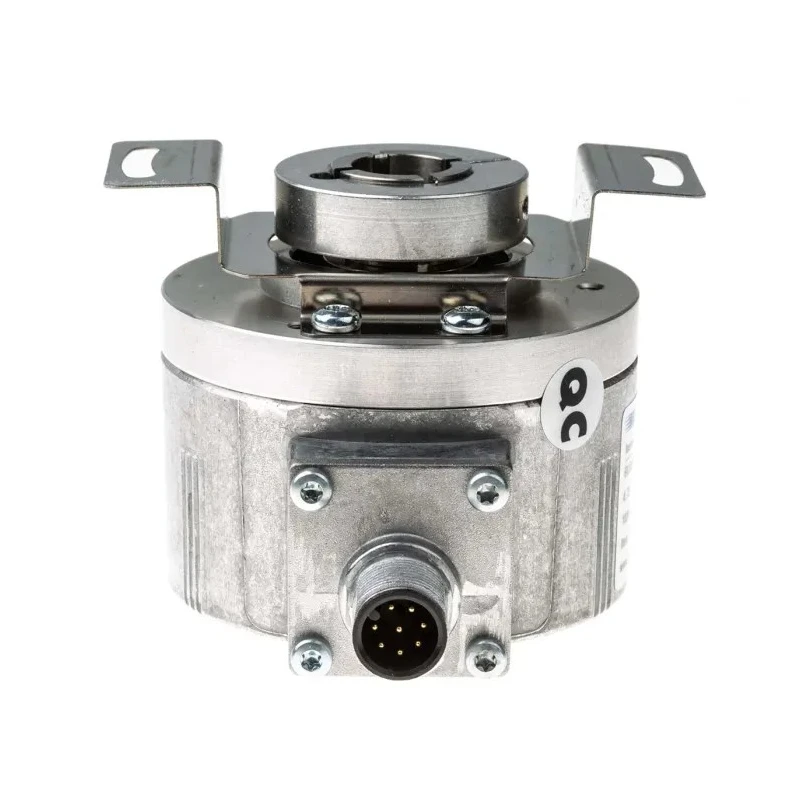

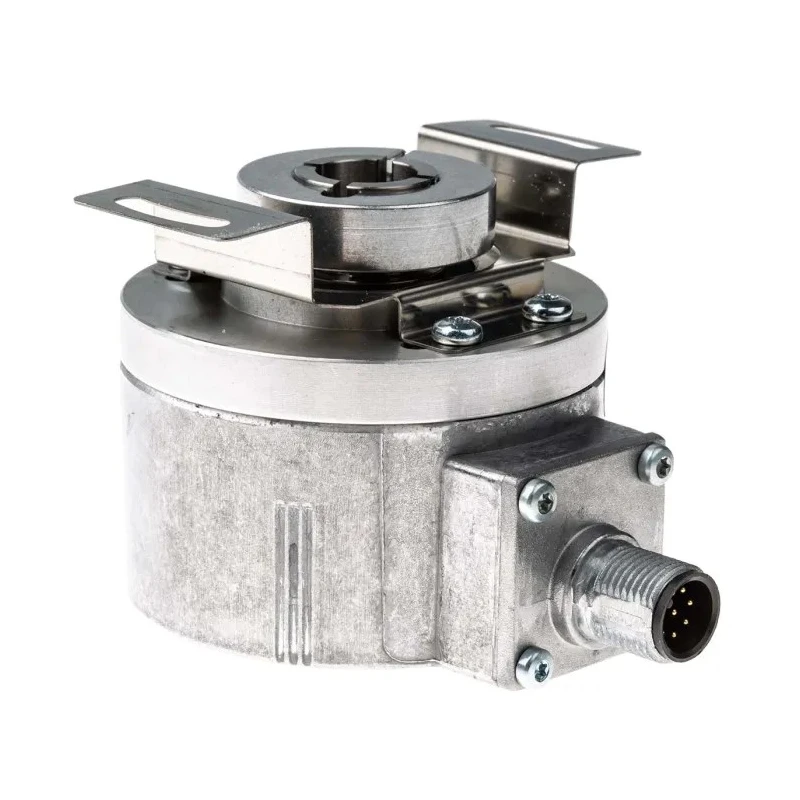

Baumer Optical Incremental Encoder 30V dc, 65536 ppr, TTL/HTL Signal, Hollow Shaft 12 mm EIL580P

Baumer's EIL580P series is an optical incremental encoder designed for precise motion control applications. The model EIL580P features a hollow shaft with a diameter of 12 mm, delivering 65536 pulses per revolution (ppr) with TTL/HTL output signals. Operating at a maximum speed of 6000 rpm and powered by a 30V dc supply, it supports industrial automation systems requiring high accuracy and durability.

The encoder's 58 mm die-cast aluminium housing provides robustness while maintaining a compact form factor. Its IP65 rating makes it resistant to dust and water ingress, suitable for demanding industrial environments. The M12 flange connector ensures reliable electrical connection, while the hollow shaft flange mount allows for easy installation without compromising mechanical integrity.

With a wide operating temperature range from -40°C to 100°C, the EIL580P encoder adapts well to varied thermal conditions. It complies with UL standards for safety and quality assurance. The optical sensing technology ensures accurate position measurement with high resistance to shock and vibrations, making it ideal for manufacturing, industrial machinery, robotics, and automation control contexts.

The encoder interfaces using RS422 and TTL standards, supporting versatile signal processing requirements. Its precise construction and advanced sensor technology make it suitable for use in laboratory instruments, HVAC systems, manufacturing equipment, and other industrial automation solutions.

Compact 58 mm diameter die-cast aluminium housing for durability. Maximum rotational speed up to 6000 rpm for high precision applications. Superior IP65 protection rating for use in harsh industrial environments. Equipped with M12 flange connector for secure and easy installation.

Wide operating temperature range from -40°C to 100°C. Compatible with RS422 and TTL interface types for flexible signal output. Designed with shock and vibration resistance ensuring reliable performance. Flange mount hollow shaft design simplifies integration with rotating machinery.

This Baumer EIL580P optical incremental encoder combines high performance, flexibility, and reliability for use in diverse industrial and automation scenarios. For more precision sensors and motion control devices, explore EnvMart's Sensors and Motion Control Sensors categories.
