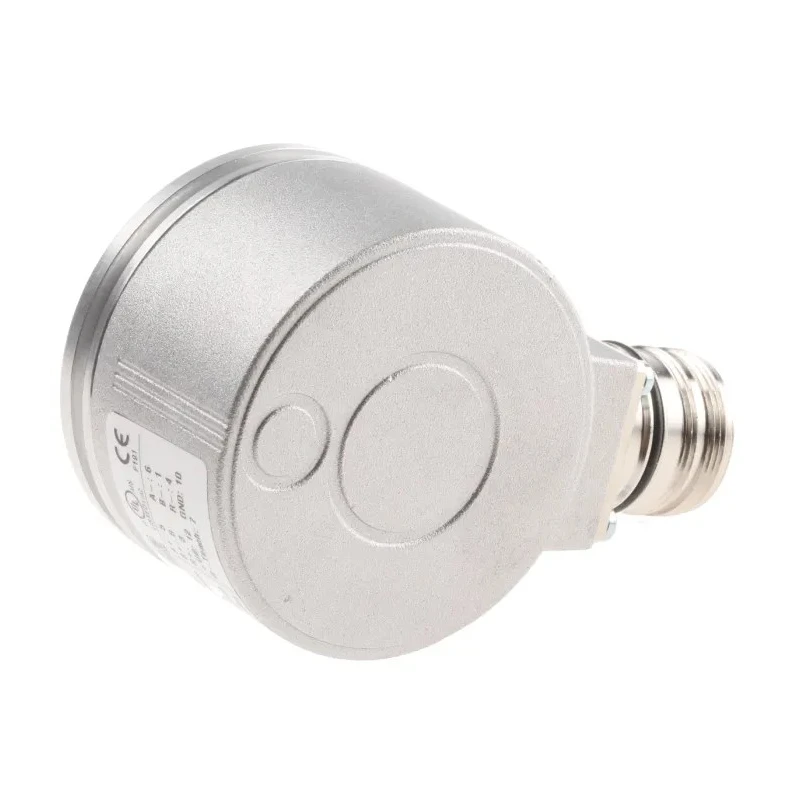

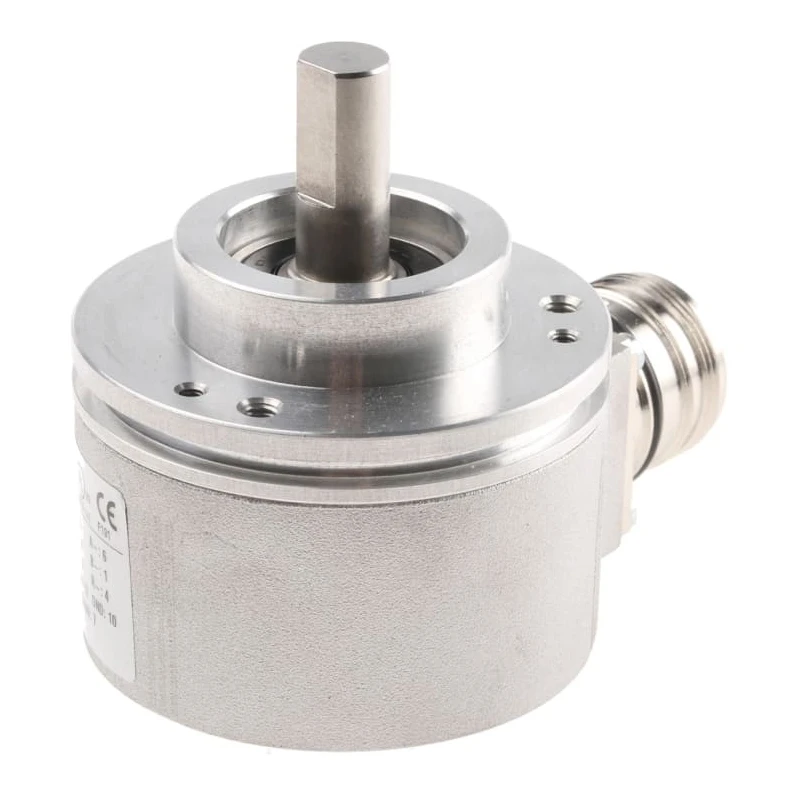

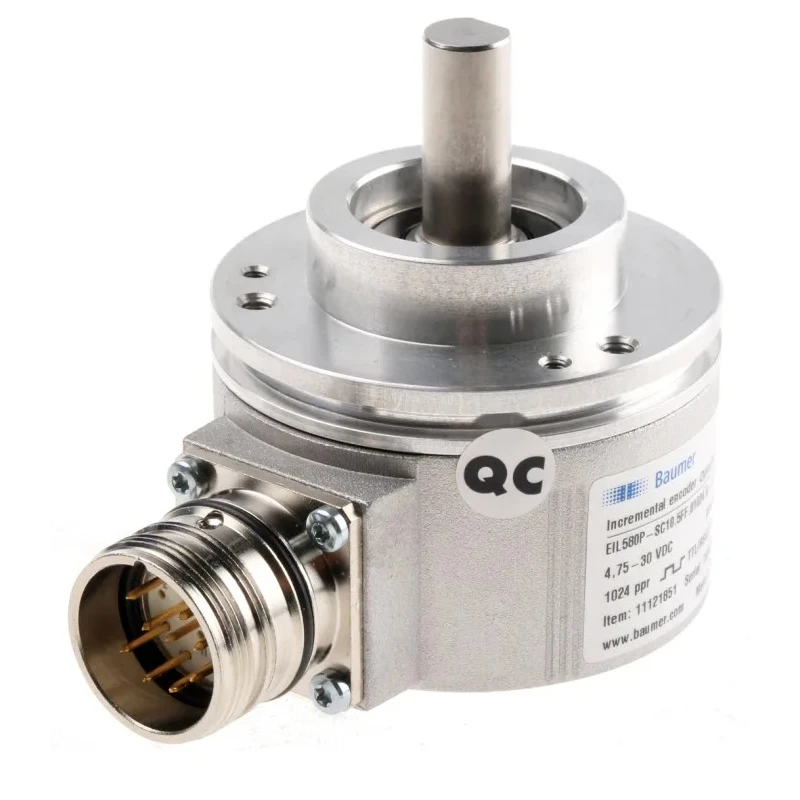

Baumer Optical Incremental Encoder EIL580P Series 30V dc, 65536 ppr, TTL/HTL Signal, Solid Shaft 10 mm EIL580P
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Model | EIL580P |
| IP Rating | IP65 |
| Mount Type | Clamping Flange Mount |
| Series | EIL580P |
| Overall Width | 58mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 10mm |
| Overall height | 63mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Terminal type | M23 Flange Connector |
| Interface Type | TTL, RS422 |
| Pulses per Revolution | 65536ppr |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 30V dc |
| Overall Depth | 48mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | TTL/HTL |
Key Features
- Features precise optical sensing technology for accurate signal output.
- Supports TTL and HTL signal types with RS422 interface for compatibility.
- Durable solid shaft made of stainless steel ensuring high resistance to shock and vibration.
- Clamping flange mount design with IP65 rated die-cast aluminium housing.
- Operates reliably in extreme temperatures from -40°C to 100°C.
- Capable of maximum rotational speed up to 12000 rpm with switching frequency of 300 kHz.
- Equipped with M23 flange connector for secure cable connection.
- Compact dimensions with 58 mm diameter and 63 mm height.
Product Description
Baumer EIL580P Series Optical Incremental Encoder with model EIL580P is designed for precise position and speed measurements in demanding industrial and automation environments. It operates on a 30V dc supply and provides exceptional resolution of 65536 pulses per revolution, making it ideal for applications requiring high accuracy and repeatability.
The encoder features a solid 10 mm stainless steel shaft ensuring robust mechanical stability. Its die-cast aluminium housing is rated IP65 for protection against dust and water ingress, suitable for harsh factory settings. The clamping flange mount facilitates easy and secure installation.
The output signal supports both TTL and HTL formats with RS422 interface, providing flexibility for integration with various motion control systems. The device operates up to 12000 rpm with a switching frequency of 300 kHz, enabling fast and reliable signal processing.
Designed for extreme conditions, it functions reliably between -40°C and 100°C, with UL certification underscoring its quality and safety standards. The encoder’s compact dimensions (58 mm width, 63 mm height, 48 mm depth) make it suitable for constrained spaces.
Precise optical sensing technology for high resolution and accuracy. Solid stainless steel shaft for mechanical durability. IP65 rated die-cast aluminium housing for industrial durability. Clamping flange mount enables stable installation.
Supports TTL/HTL output signals with RS422 interface. Wide operating temperature range (-40°C to 100°C). High max rotational speed up to 12000 rpm with 300 kHz switching frequency. M23 flange connector ensures secure cable connection.
Compact size suitable for various industrial applications. Manufactured in Germany with UL approvals.
This incremental encoder is widely used in industrial automation, motion control systems, manufacturing machinery, and robotics. Its high pulse count and robust build quality ensure reliable operation in demanding environments, including laboratories, manufacturing plants, and HVAC systems.
Explore other encoders and Motion Control Sensors at EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can operate at a maximum rotational speed of 12000 rpm.
It provides a resolution of 65536 pulses per revolution (ppr).
The encoder supports TTL and HTL output signals with an RS422 interface.
It operates reliably in a temperature range from -40°C to 100°C.
The encoder has an IP65 rating, providing protection against dust and water ingress.
It features a clamping flange mount design for secure installation.
The overall dimensions are 58 mm in width, 63 mm in height, and 48 mm in depth.
It is equipped with an M23 flange connector for secure cable connection.
The encoder has a switching frequency of 300 kHz.
This encoder is manufactured in Germany.
It operates on a supply voltage of 30V dc.
The encoder has UL certification, ensuring it meets quality and safety standards.
