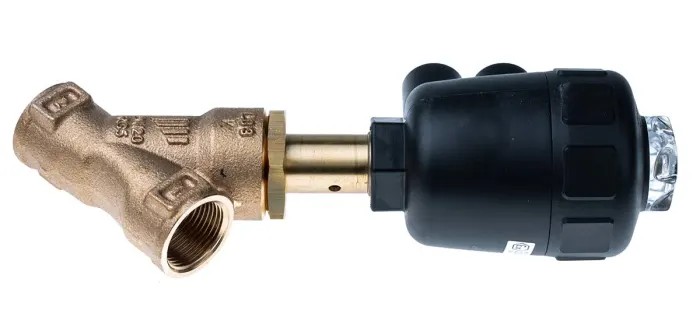

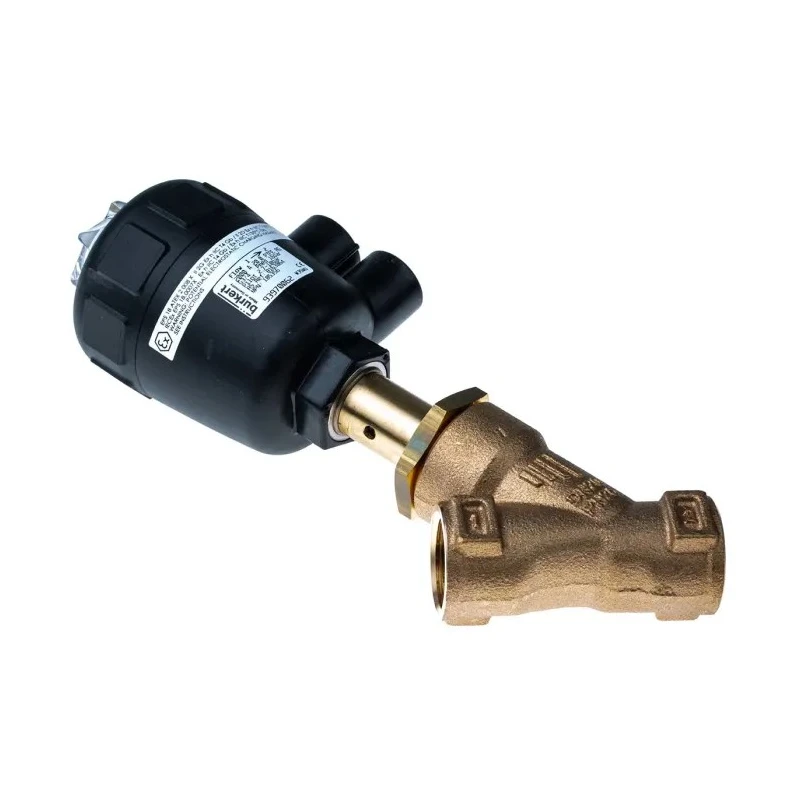

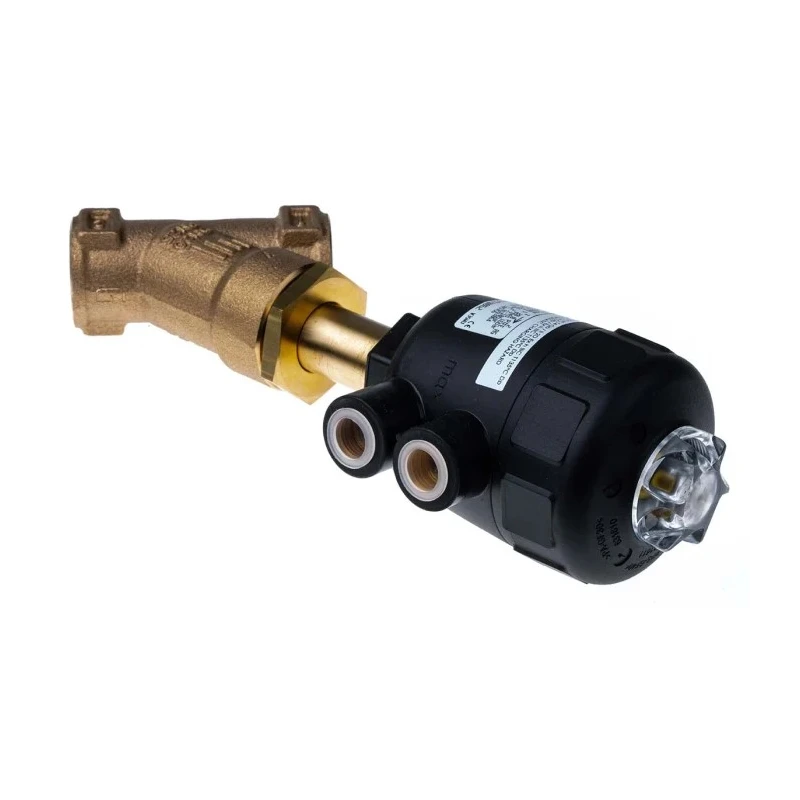

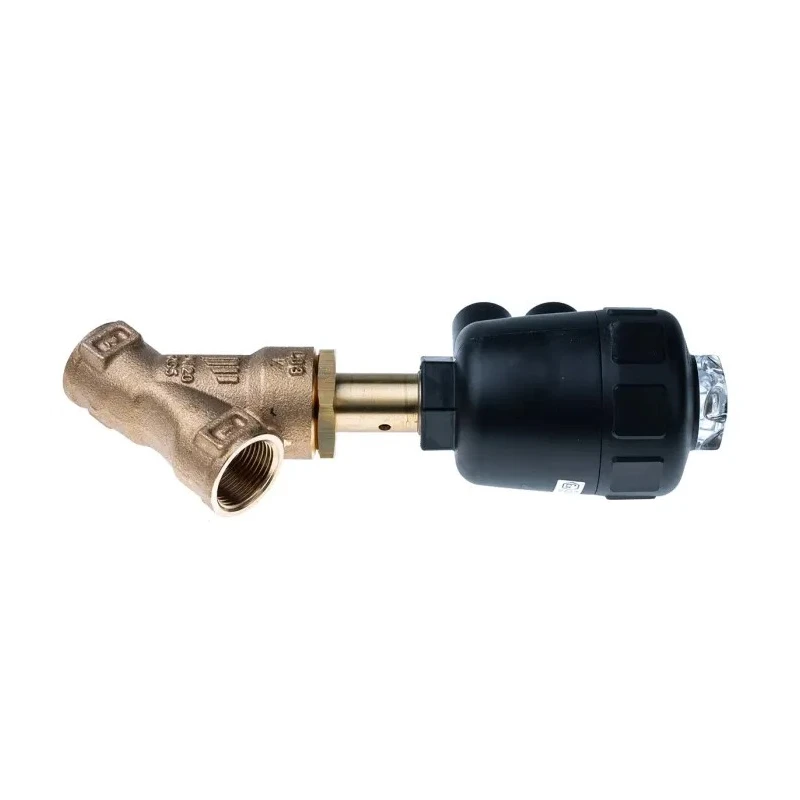

Burkert Angle Type Pneumatic Actuated Valve Stainless Steel 16 Bar 3/4 in 185356
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Maximum Operating Pressure | 16 bar |
| Inlet Connection Type | Threaded |
| Model | 185356 |
| Valve Type | Angle |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Valve Material | Stainless Steel |
| Inlet Port Size | 3/4 in |
| Default Valve Position | NC |
| Outlet Thread Standard | G |
| Return Type | Spring |
Key Features
- The valve features a 3/4 inch threaded inlet and outlet port size for easy installation.
- It is constructed with stainless steel for robust and corrosion-resistant operation.
- The maximum operating pressure is rated at 16 bar, suitable for demanding pneumatic applications.
- Designed with a normally closed (NC) default valve position ensuring fail-safe operation.
- The valve employs spring return type for reliable resetting after operation.
- Operating temperature ranges from -10°C to 60°C for versatile application environments.
- The outlet threads adhere to the G standard ensuring compatibility with industrial piping.
- Compact 2/2-way angle seat design with under-seat flow provides high flow efficiency rated at 8 m³/h.
Product Description
Burkert 185356 is an angle type pneumatic actuated valve engineered for industrial fluid power control, featuring a robust stainless steel valve body. It operates at a maximum pressure of 16 bar and a fluid temperature range from -10°C to 60°C, making it suitable for various industrial, manufacturing, and water treatment applications.
This valve includes a 3/4 inch threaded inlet and outlet connection conforming to G thread standards, facilitating easy integration into piping systems. Its normally closed (NC) configuration and spring return mechanism ensure fail-safe operation and reliable reset after power loss or system shutdown.
The valve design promotes an under-seat flow in a 2/2-way configuration, providing high flow rates up to 8 m³/h with minimal pressure drop. Live loaded packing and N-seal piston actuators enhance sealing performance, preventing leakage and reducing maintenance needs.
Additional features include a polyamide actuator casing and PTFE seal materials, which provide chemical resistance and durability under various operating conditions. Its compact design ensures installation versatility in confined spaces.
This Burkert pneumatic valve is well-suited for use in industrial automation, HVAC systems, laboratory instrumentation, water treatment plants, and general manufacturing processes requiring precise fluid control under high pressure.
The valve features a 3/4 inch threaded inlet and outlet port size for easy installation. It is constructed with stainless steel for robust and corrosion-resistant operation. The maximum operating pressure is rated at 16 bar, suitable for demanding pneumatic applications.
Designed with a normally closed (NC) default valve position ensuring fail-safe operation. The valve employs spring return type for reliable resetting after operation. Operating temperature ranges from -10°C to 60°C for versatile application environments.
The outlet threads adhere to the G standard ensuring compatibility with industrial piping. Compact 2/2-way angle seat design with under-seat flow provides high flow efficiency rated at 8 m³/h. Equipped with live loaded packing and N-seal piston actuator to prevent leakage and extend service life.
The polyamide actuator casing and PTFE seal material guarantee durability and chemical resistance. Explore our comprehensive selection of pneumatic actuated valves at EnvMart for reliable and precise fluid control solutions in industrial and manufacturing sectors.
Explore more products in our Pneumatic Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The valve has a maximum operating pressure rated at 16 bar, making it suitable for demanding pneumatic applications.
It operates within a temperature range of -10°C to 60°C, allowing for versatile applications in various environments.
This model is an angle type pneumatic actuated valve designed for fluid power control.
The valve features a 3/4 inch threaded inlet port size for easy installation into piping systems.
It is designed with a normally closed (NC) default valve position and employs a spring return mechanism for reliable resetting after operation.
The valve provides a high flow efficiency rated at 8 m³/h with minimal pressure drop due to its under-seat flow design.
The valve body is constructed from stainless steel, and it includes PTFE seal materials for chemical resistance and durability.
It is equipped with an N-seal piston actuator, which enhances sealing performance and prevents leakage.
Yes, it is suitable for various applications including industrial automation, HVAC systems, and water treatment plants requiring precise fluid control.
The outlet threads conform to the G standard, ensuring compatibility with industrial piping systems.
The valve is manufactured in Germany, ensuring high standards of engineering and quality.
It features a compact 2/2-way angle seat design that promotes efficient flow control.
