| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN11NG00D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 11nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 500mA |
| Pin Count | 2 |
| Maximum DC Resistance | 140mΩ |
| Inductance Tolerance | ±2 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 5.5GHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |

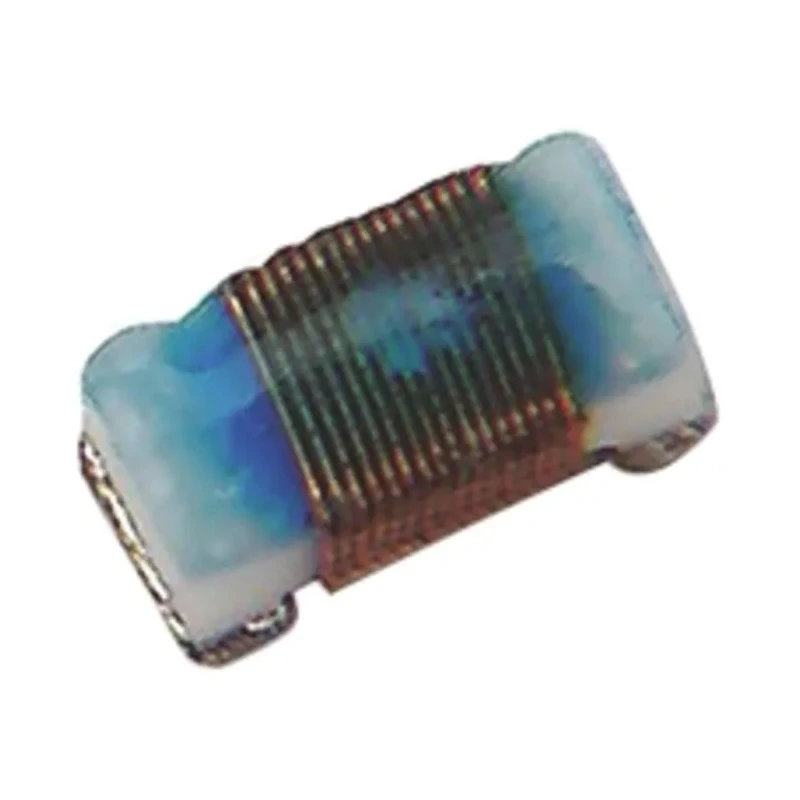

Murata LQW15AN11NG00D wirewound surface mount inductor offers high precision inductance of 11 nH with a tight tolerance of ±2%. It features a ferrite core enclosed in a moulded 0402 package, measuring 1mm in length, 0.5mm in height, and 0.5mm in depth, designed for compact and efficient PCB layouts. This inductor supports a maximum DC current of 500 mA and has a low maximum DC resistance of 140 mΩ, enabling efficient operation.
Specially designed for high frequency operation with a maximum self-resonant frequency of 5.5 GHz, this component is ideal for wireless telecommunications circuits such as Bluetooth, GSM, and WLAN applications. Its minimum quality factor (Q) of 30 ensures effective signal filtering and integrity in high frequency designs.
The device operates reliably across a wide temperature range from -55°C to 125°C, complying with RoHS standards for environmental safety. Its solder termination style and 2-pin configuration accommodate surface mount technology (SMT), supporting automated manufacturing processes. The product is packaged on paper tape to facilitate automated pick-and-place assembly in production lines.
Compact 0402 size with precise wirewound inductance. Ferrite core provides stable magnetic properties for signal integrity. High resonance frequency suitable for VHF and UHF applications. Low DC resistance minimizes power losses.
Wide operating temperature range ensures durability in various environments. RoHS compliant for environmental and safety standards. Optimized for wireless communication equipment design. Suitable for Bluetooth, GSM, and WLAN modules.
Packaged on paper tape for easy automated assembly. High quality manufacturing standards by Murata.
This wirewound surface mount inductor is suited for industrial, telecommunications, and electronics manufacturing sectors requiring reliable, high frequency passive components. Explore more components in the Surface Mount Inductor category on EnvMart.
