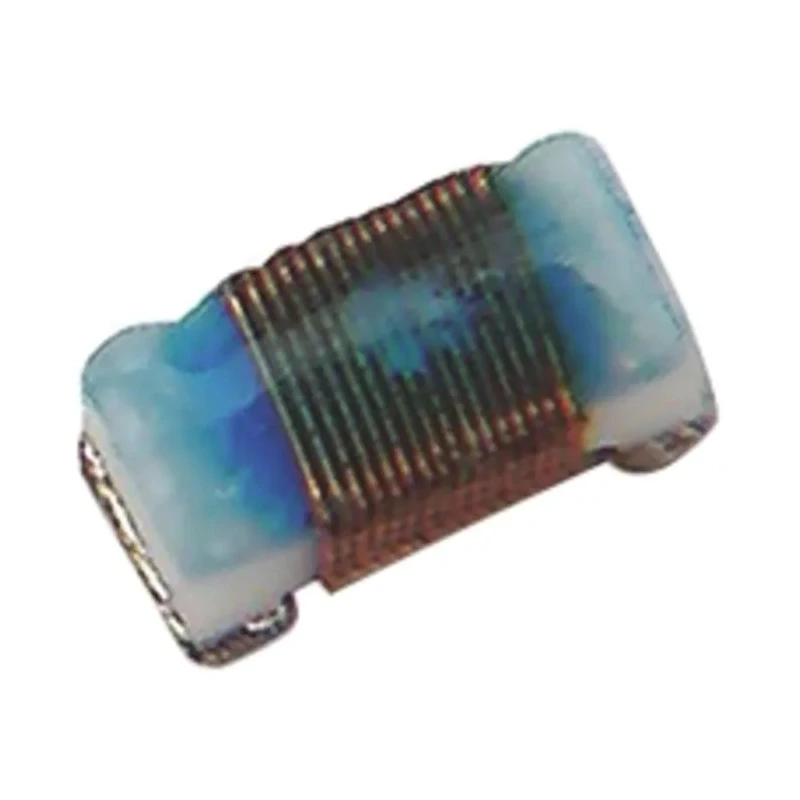

Murata Unshielded Wirewound Surface Mount Inductor 82 nH ±5% 130 mA Idc 0402 Package LQW15AN82NJ00D

Murata LQW15AN82NJ00D is an unshielded wirewound surface mount inductor with a ferrite core, engineered for high-frequency electronic applications requiring reliable inductance performance and high-quality factor.

Featuring an inductance value of 82 nH with ±5% tolerance and a maximum DC current rating of 130 mA, it is designed to operate efficiently in demanding environments with operational temperatures ranging from -55°C to 125°C.

The compact 0402 package size with dimensions of 1mm length, 0.5mm height, and 0.5mm depth makes it ideal for dense PCB layouts in modern electronics. The wirewound construction and ferrite core offer a high self-resonant frequency of up to 2.3 GHz and maintain a minimum Q factor of 20, assuring signal integrity in VHF and UHF applications.

Termination style uses solder pads for secure surface mounting, and the product is RoHS compliant, free of shielding for applications where shielding is not necessary. The molded body ensures mechanical protection and reliability during automated assembly processes.

This inductor series is widely used in wireless telecommunications equipment including Bluetooth, GSM mobile devices, and WLAN systems, supporting enhanced performance in these circuits.

Packaging is supplied in paper tape format, optimized for automated insertion machines in production environments to increase assembly efficiency. Inductance: 82 nH with ±5% tolerance for precise circuit tuning. Maximum DC current: 130 mA suitable for low power applications.

0402 package case with 1mm x 0.5mm x 0.5mm dimension for space-efficient PCB design. Ferrite core and wirewound design for high frequency operation. High self-resonant frequency of 2.3 GHz ensures suitability for VHF/UHF applications.

Minimum quality factor Q of 20 for enhanced signal quality. Operational temperature range from -55°C to 125°C allows use in harsh industrial conditions. RoHS compliant and solder termination style for reliable assembly. Supplied in paper tape packaging to streamline manufacturing processes.
